Performance
Processor frequency |
533 MHz |
Memory type |
SDRAM |
Internal memory |
128 MB |
Flash memory |
16 MB |
Stackable |
N |
Data transmission
Store-and-forward |
Y |
Supported data transfer rates |
10/100 Mbps |
Switching capacity |
0.1 Gbit/s |
Maximum data transfer rate |
0.1 Gbit/s |
Other features
Authentication method |
X.509v3 |
Connectivity LEDs |
Y |
Networking features |
Fast Ethernet |
Data transfer rate |
99 Mbit/s |
Power supply type |
AC/DC |
Networking
Auto MDI/MDI-X |
Y |
DHCP client |
Y |
DHCP server |
Y |
10G support |
N |
Full duplex |
Y |
Protocols
Data link protocols |
PPPoE, PPTP |
Management protocols |
SNMP v1, v2, v3 |
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity |
7 |
DC-in jack |
Y |
Console port |
RS-232 |
Power
Input voltage |
5 V |
Input current |
3 A |
Power over Ethernet (PoE)
Power over Ethernet (PoE) |
N |
Additionally
Wireless technologies |
Wired |
mGuard delta with VPN-10, 128 MB SDRAM, 4 x LAN, 1 x WAN, Fast Ethernet, PPPoE, PPTP, DES, 3DES, AES-128, -192, -256, 1200 g

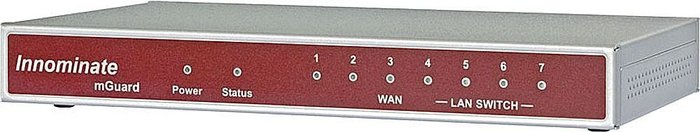

mGuard delta
Integrated firewall and VPN appliance.
The mGuard delta is a compact LAN switch which offers maximum protection through integrated VPN and firewall functions. The mGuard firewall can be distributed on up to four LAN segments. The mGuard delta can be integrated flexibly into the back-office or as an interface to the production network. Its robust metal housing is suitable for desktop use or for use in distribution rooms.
mGuard delta – segmented security
Particularly in the case of logically segmented networks, a distributed security function is often required. The intelligent, high-performance security functions of the mGuard delta can be combined with the advantages of a standard Ethernet / Fast Ethernet switch.
Two mGuard delta devices can be operated redundantly in the High Availability Mode. Here, the active mGuard delta transmits the firewall statuses to the standby unit. In the event of outfall of the principle mGuard delta, uninterrupted protection as well as high availability of the overall system is thus assured (mGuard Redundant Firewall Option).
At a glance
- Based on the Intel IXP 42X series security processor.
- Stateful Inspection Firewall.
- User firewall regulates access to internal or external resources via user login to the mGuard and central RADIUS server.
- VPN tunneling with 3DES/AES encryption.
- Virtual addressing (1:1 NAT) in the VPN tunnel avoids address conflicts.
- Optional integrity monitoring of Windows file shares against malware infestation.
- Redundant operation (active/passive) with the VRRP (Virtual Router Redundancy Protocol).
- 10/100Mbps Ethernet WAN port.
- 4 port 10 /100TX Fast Ethernet switch.
- Configuration with the Innominate Device Manager (IDM).
- Manageable via SNMP, HTTPS, SSH.
- RS-232 port for management.
