Data transmission
Switching capacity |
288000 Gbit/s |
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity |
36 |
Console port |
RJ-45 |
Design
Form factor |
1U |
Rack mounting |
Y |

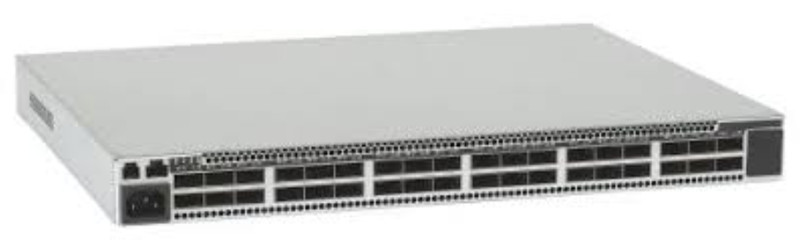

QLogic InfiniBand Edge Switch 12200-BS23
High performance computing (HPC) solutions use the Intel® True Scale Solution for InfiniBand* Architecture to meet the needs of the most demanding set of applications. The Intel® True Scale Fabric Edge Switch 12200 family consists of 18 and 36-port, 40 Gbps switches that cost-effectively support a cluster of up to 36 servers, or provide an edge switch option for larger multi-tier fabrics. These fixed-configuration Intel® True Scale Fabric switches are members of the Intel True Scale Fabric 12000 series of switches, delivering an exceptional set of high-speed networking features and functions. They are available with a variety of options such as redundant power and fans and integrated management modules.
Highlights
- 18-36 ports of InfiniBand quad data rate (QDR)–40 Gb/s performance
- Up to 2.88 Tb/s aggregate bandwidth
- Intel® True Scale Architecture, with scalable, predictable low latency
- Multiple Virtual Lanes (VLs) per physical port
- Supports virtual fabric partitioning
- Small QDR data center footprint with cost-effective InfiniBand edge-port density
- Chassis and fabric management through optional embedded management module or Intel® True Scale Fabric suite management solution that provides an expanded set of fabric views and fabric tools
- Restriction of Hazardous Substances (RoHS) compliant
- Minimal power and cooling requirements
- Complies with InfiniBand* Trade Association (IBTA) v1.2 standard
