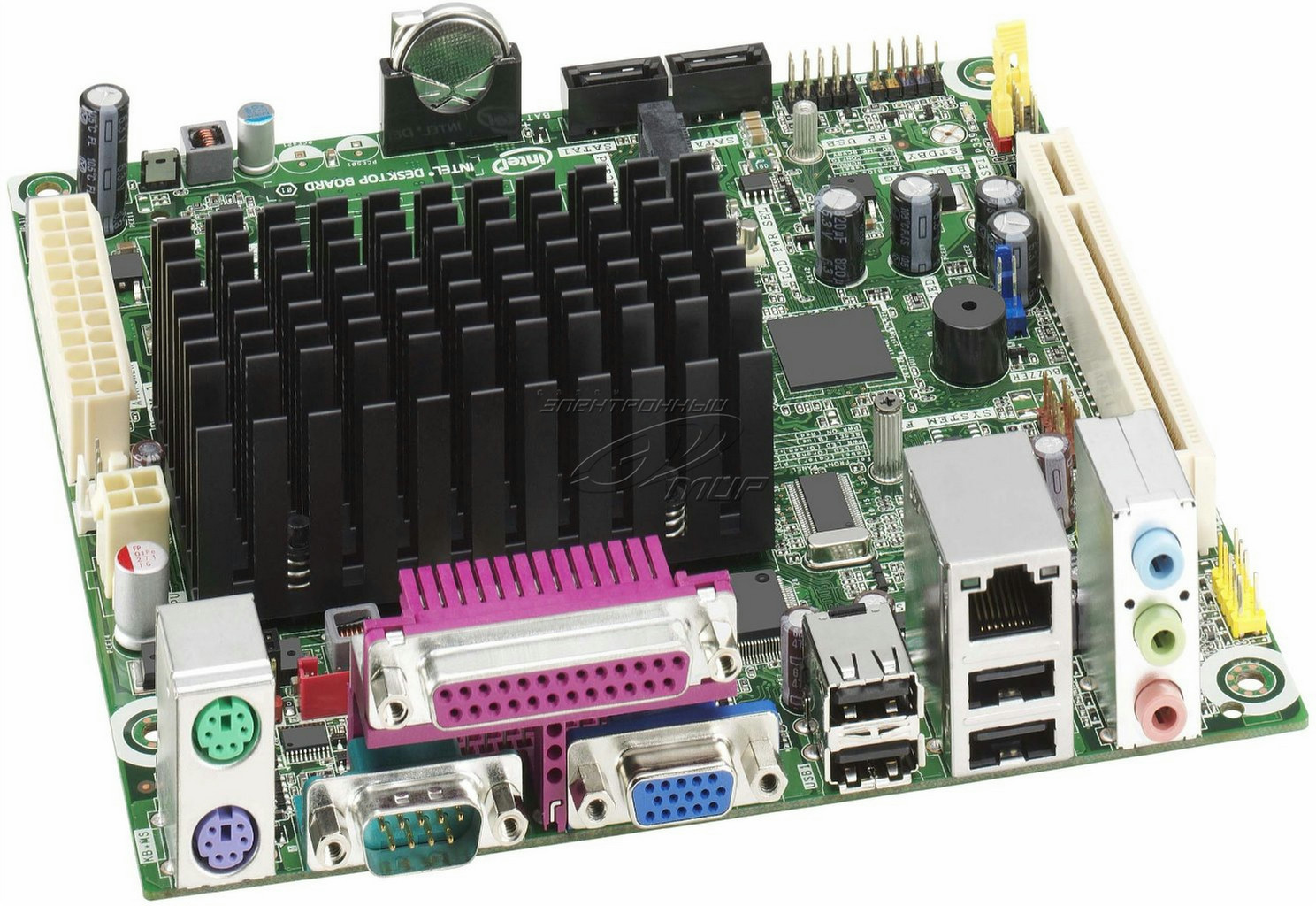

Intel BLKD525MWV Intel NM10 Express FCBGA559 Mini ATX motherboard

Intel® NM10 Express, DDR 1066/800 4 GB Max, PCIe Mini, PCI, SATA II, HDA 5.1, Intel GMA 3150, 2 x PS/2, VGA, Mini-ITX/microATX, 170 x 170 The Intel® Desktop Board D525MW is designed to unleash the power of the new Intel® Atom™ processor D525 which supports the new revolutionary two–chip layout. This new chipset layout reduces the package footprint by 70 percent, enabling easier routing and better heat flow. The Intel® NM10 Express Chipset also provides additional flexibility and upgradability with two slots of single-channel DDR3 memory at 1066/800 MHz supporting up to 4GB maximum.

With breakthrough low-power silicon, the Intel Desktop Board D525MW can be used with a passive thermal solution based on the recommended boundary conditions.1

The Intel Desktop Board D525MW represents a fundamental shift in system design—small, yet powerful enough to enable a big Internet experience for all audiences.
