Power
| Power consumption (read) |
7 W |
| Power consumption (write) |
8 W |
| Power consumption (idle) |
4 W |
Other features
| Uncorrectable Bit Error Rate (UBER) |
less than 1 sector per 1e17 bits read |
| Processor lithography |
20 nm |
| Endurance rating |
2.19 PB |
| Internal |
Y |
Performance
| SSD usage tag |
Data center |
| Memory type |
MLC |
| Read speed |
2100 MB/s |
| Write speed |
550 MB/s |
| Solid-state drive capacity |
400 GB |
| SSD ARK ID |
80996 |
| Random write (100% span) |
30000 IOPS |
| Random read (100% span) |
320000 IOPS |
| Intel High Endurance Technology (HET) |
Y |
| Sequential writing |
Y |
| PCI Express interface data lanes |
x4 |
| Latency (read) |
20 µs |
| Latency (write) |
20 µs |
| Enhanced Power Loss Data Protection technology |
Y |
| SSD temperature monitoring |
Y |
| End-to-End Data Protection |
Y |
| Lithography |
20 nm |
| Solid-state drive interface |
PCI Express 3.0 |
Technical details
| Non-operating shock |
50 G |
| Operating shock |
50 G |
| Status |
Launched |
| Non-operating vibration |
3.13 G |
| Operating vibration |
2.17 G |
Design
| Product family |
Data center SSD |
| Product series |
Intel DC P3600 |
| Product codename |
Fultondale |

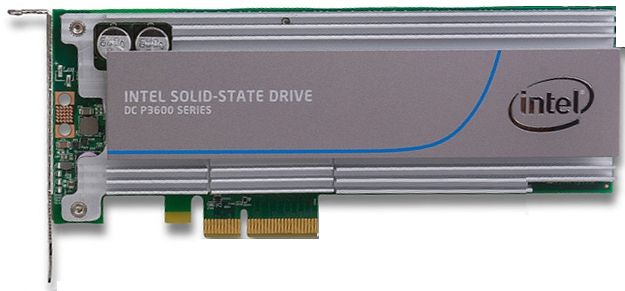

SSD DC P3600 Series (400GB, 1/2 Height PCIe 3.0, 20nm, MLC)
Series is a PCIe Gen3 SSD architected with the new high performance controller interface – NVMe (Non-Volatile Memory express) delivering leading performance, low latency and Quality of Service. Matching the performance with world-class reliability and endurance, P3600 Series offers a range of capacity – 400GB, 800GB, 1.2TB, 1.6TB and 2TB in both Add-In card and 2.5-inch form factor.
With PCIe Gen3 support and NVMe queuing interface, P3600 Series delivers excellent sequential read performance of up to 2.8 GB/s and sequential write speeds of up to 1700 MB /s.
P3600 Series delivers very high random read IOPS of 450K and random write IOPS of 70K for 4KB operations. Taking advantage of the direct path from the storage to the CPU by means of NVMe, P3600 Series exhibits low latency of less than 20 μs for sequential access to the SSD.
The 2.5-inch P3600 Series takes advantage of the 8639 connector and provides hot-pluggable removal and insertion providing in-service replacement options.
