Power
| Power consumption (read) |
12 W |
| Power consumption (write) |
9 W |
| Power consumption (idle) |
4 W |
Other features
| Uncorrectable Bit Error Rate (UBER) |
less than 1 sector per 1e17 bits read |
| Processor lithography |
20 nm |
| Endurance rating |
4.38 PB |
| Internal |
Y |
Performance
| SSD usage tag |
Data center |
| Memory type |
MLC |
| Read speed |
2600 MB/s |
| Write speed |
1000 MB/s |
| Solid-state drive capacity |
800 GB |
| SSD ARK ID |
80998 |
| Random write (100% span) |
50000 IOPS |
| Random read (100% span) |
430000 IOPS |
| Intel High Endurance Technology (HET) |
Y |
| PCI Express interface data lanes |
x4 |
| Latency (read) |
20 µs |
| Latency (write) |
20 µs |
| Enhanced Power Loss Data Protection technology |
Y |
| SSD temperature monitoring |
Y |
| End-to-End Data Protection |
Y |
| Lithography |
20 nm |
| Solid-state drive interface |
PCI Express 3.0 |
Software
| Linux operating systems supported |
Y |
Technical details
| Operating shock |
50 G |
| Status |
Launched |
| Maximum non-operating altitude |
40000 m |
| Non-operating vibration |
3.13 G |
| Operating vibration |
2.17 G |
| Sequential writing speed |
1000 MB/s |
| Sequential reading |
2600 MB/s |
| Market segment |
SRV |
| Product brief URL |
http://www.intel.com/content/dam/www/public/us/en/documents/product-briefs/intel-ssd-dc-family-for-pcie-brief.pdf |
| SSD shock |
50 G Trapezoidal, 170 in/s |
| SSD power consumption (active) |
12W (write), 9W (read) |
| SSD power consumption (idle) |
4W |
| SSD interface |
PCIe NVMe 3.0 x4 |
| SSD endurance rating |
4.38 PBW (JEDEC workload) |
| SSD weight |
185g |
| Born on date |
Q2'14 |
| Drive capacity |
800 GB |
| Launch date |
2014-06-03T00:00:00 |
| Product name |
Intel SSD DC P3600 Series (800GB, 1/2 Height PCIe 3.0, 20nm, MLC) |
| Maximum operating altitude |
10000 m |
| Form factor |
HHHL (CEM2.0) |
Design
| SSD form factor |
HHHL (CEM2.0) |
| Product family |
Data center SSD |
| Product series |
Intel DC P3600 |
| Product codename |
Fultondale |

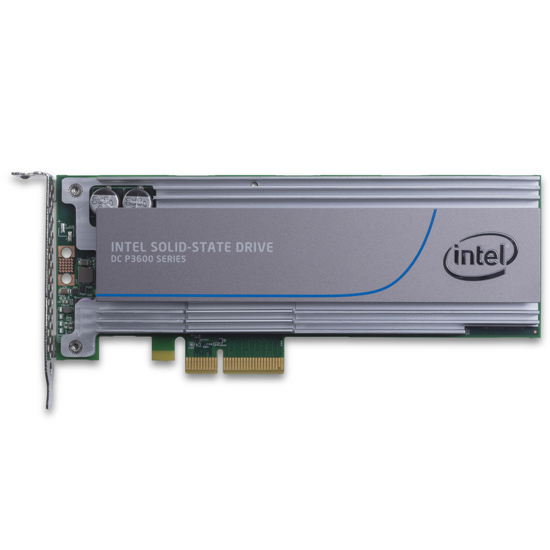

SSD DC P3600 Series (800GB, 1/2 Height PCIe 3.0, 20nm, MLC)
Enhanced Power Loss Data Protection
Enhanced Power Loss Data Protection prepares the SSD for unexpected system power loss by minimizing data in transition in temporary buffers, and uses on-board power-loss protection capacitance to provide enough energy for the SSD firmware to move data from the transfer buffer and other temporary buffers to the NAND, thus protecting system and user data.
High Endurance Technology (HET)
High Endurance Technology (HET) in SSD's combines Intel® NAND Flash Memory silicon enhancements and SSD system management techniques to help extend the endurance of the SSD. Endurance is defined as the amount of data that can be written to an SSD during its lifetime.
Temperature Monitoring and Logging
Temperature Monitoring and Logging uses an internal temperature sensor to monitor and log airflow and device internal temperature. The logged results can be accessed using the SMART command.
End-to-End Data Protection
End-to-End Data Protection ensures integrity of stored data from the computer to the SSD and back.
