Power
| Power consumption (read) |
2.5 W |
| Power consumption (write) |
2.5 W |
| Power consumption (idle) |
0.9 W |
| Operating voltage |
5 V |
Other features
| Uncorrectable Bit Error Rate (UBER) |
1 sector per 10^17 bits read |
| Power consumption (active) |
2.5 W |
| Processor lithography |
20 nm |
| Internal |
Y |
| Hard drive capacity |
160 GB |
Performance
| SSD usage tag |
Data center |
| Memory type |
MLC |
| Read speed |
475 MB/s |
| Write speed |
175 MB/s |
| S.M.A.R.T. support |
Y |
| Solid-state drive capacity |
160 GB |
| SSD ARK ID |
75679 |
| Random write (100% span) |
7500 IOPS |
| Random read (100% span) |
75000 IOPS |
| Intel High Endurance Technology (HET) |
N |
| TRIM support |
Y |
| Sequential writing |
Y |
| Random write (4KB) |
75000 IOPS |
| Random read (4KB) |
7500 IOPS |
| Latency (read) |
50 µs |
| Latency (write) |
65 µs |
| Enhanced Power Loss Data Protection technology |
Y |
| Hardware encryption |
Y |
| SSD temperature monitoring |
Y |
| Lithography |
20 nm |
| Solid-state drive interface |
Serial ATA III |
| Wi-Fi |
N |
Technical details
| Non-operating shock |
3.13 G |
| Operating shock |
1000 G |
| Status |
Launched |
| Intel Smart Response Technology version |
0.00 |
| Maximum non-operating altitude |
12192 m |
| Non-operating vibration |
3.13 G |
| Operating vibration |
2.17 G |
| Sequential writing speed |
175 MB/s |
| Sequential reading |
475 MB/s |
| Market segment |
SRV |
| Product brief URL |
http://www.intel.com/content/www/us/en/solid-state-drives/ssd-dc-s3500-brief.html |
| SSD shock |
1,000 G (Max) at 0.5 msec |
| SSD power consumption (active) |
2.5W |
| SSD power consumption (idle) |
0.9W |
| SSD interface |
SATA 3.0 6Gb/S |
| SSD endurance rating |
100 TBW |
| SSD weight |
70 grams ± 2 grams |
| SSD hardware encryption |
AES 256 bit |
| Born on date |
Q2'13 |
| Drive capacity |
160 GB |
| Launch date |
2013-06-11T00:00:00 |
| Product name |

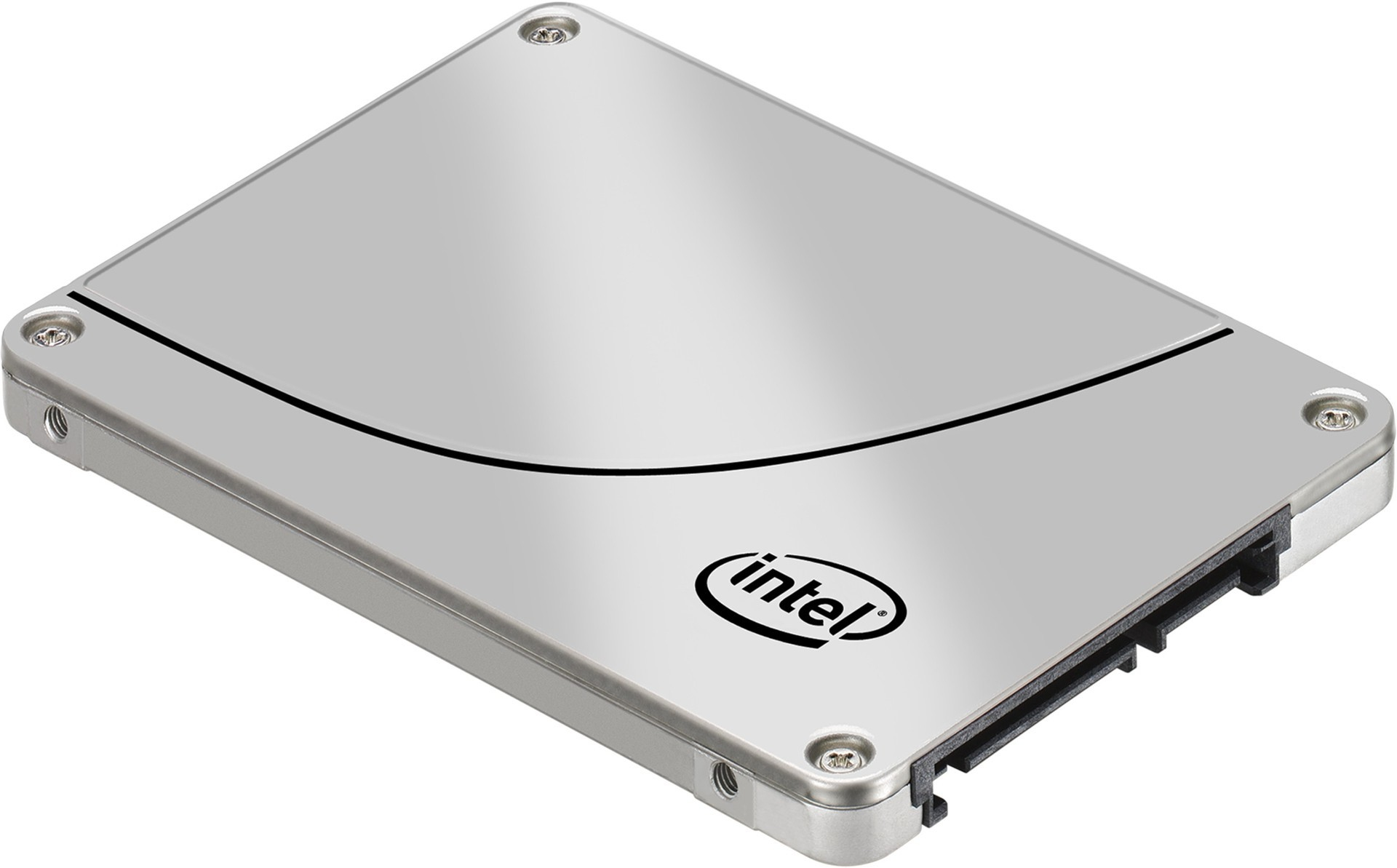

Intel SSD DC S3500 Series (160GB, 2.5in SATA 6Gb/s, 20nm, MLC) |
| Maximum operating altitude |
3048 m |
Software
| Linux operating systems supported |
Y |
Design
| SSD form factor |
2.5" |
| Product family |
Data center SSD |
| Product series |
Intel DC S3500 |
| Product codename |
Wolfsville |
Additionally
| Native command queuing (NCQ) |
Y |
160GB, 6.35 cm (2.5 ") , SATA 6Gb/s, 20nm NAND Flash, MLC, 475 MB/s (Read), 175 MB/s (Write)
The Intel SSD DC S3500 Series combines fast, consistent read performance with strong data protection and low active power levels to provide superior quality of service for video conferencing, big data analytics, or virtual client applications. Consistently low read latencies of 50µs typical (500µs max for 99.9% of the time) along with a tight distribution of up to 75,000 input/output per second (IOPS) delivers a high-performance, reliable, and efficient SSD specifically designed for data center application upgrades.
Key features and benefits of this drive include an Intel 3rd generation controller, industry-leading 20nm multi-level cell (MLC) NAND flash technology, full end-to-end data protection, enhanced power-loss data protection, and a broad range of capacities up to 800GB.
