Other features
| Uncorrectable Bit Error Rate (UBER) |
1 sector per 10^17 bits read |
| Processor lithography |
20 nm |
| Internal |
N |
Performance
| SSD usage tag |
Data center |
| Memory type |
MLC |
| Data retention |
0.25 year(s) |
| Read speed |
500 MB/s |
| Write speed |
450 MB/s |
| Solid-state drive capacity |
600 GB |
| ECC |
Y |
| SSD ARK ID |
74944 |
| Random write (100% span) |
11000 IOPS |
| Random read (100% span) |
75000 IOPS |
| Intel High Endurance Technology (HET) |
Y |
| TRIM support |
Y |
| Random write (4KB) |
11500 IOPS |
| Random read (4KB) |
75000 IOPS |
| Latency (read) |
50 µs |
| Latency (write) |
65 µs |
| Enhanced Power Loss Data Protection technology |
Y |
| Hardware encryption |
Y |
| SSD temperature monitoring |
Y |
| Lithography |
20 nm |
| Solid-state drive interface |
Serial ATA III |
| Wi-Fi |
N |
Software
| Linux operating systems supported |
SuSE Linux 10, SuSE Linux 11, Y |
Technical details
| Operating shock |
1000 G |
| Status |
Launched |
| Intel Smart Response Technology version |
0.00 |
| Non-operating vibration |
3.13 G |
| Operating vibration |
2.17 G |
| Sequential writing speed |
410 MB/s |
| Sequential reading |
500 MB/s |
| Market segment |
SRV |
| Product brief URL |
http://www.intel.com/content/www/us/en/solid-state-drives/ssd-dc-s3500-brief.html |
| SSD shock |
1,000 G (Max) at 0.5 msec |
| SSD power consumption (active) |
4.5W |
| SSD power consumption (idle) |
0.9W |
| SSD interface |
SATA 3.0 6Gb/S |
| SSD endurance rating |
330 TBW |
| SSD weight |
72 grams ± 2 grams |
| SSD hardware encryption |
AES 256 bit |
| Born on date |
Q2'13 |
| Drive capacity |
600 GB |
| Launch date |
2013-06-11T00:00:00 |
| Product name |

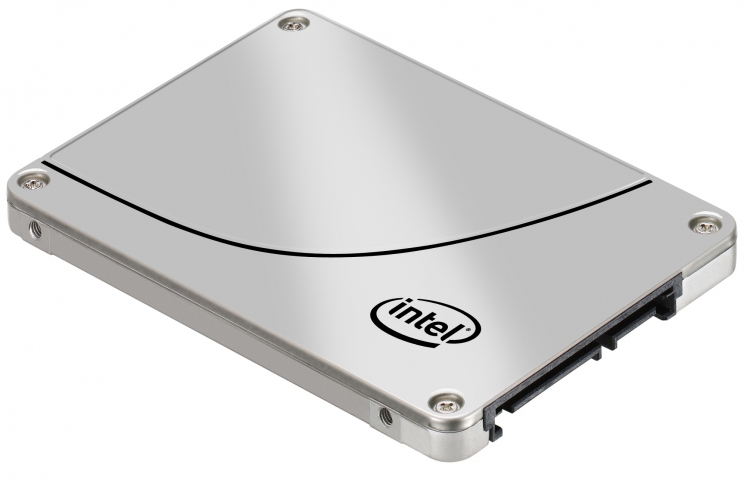

Intel SSD DC S3500 Series (600GB, 2.5in SATA 6Gb/s, 20nm, MLC) |
Design
| SSD form factor |
2.5" |
| Protection features |
Shock resistant |
| Product family |
Data center SSD |
| Product series |
Intel DC S3500 |
| Product codename |
Wolfsville |
Power
| Power consumption |
650 mA |
| Operating voltage |
5 V |
Additionally
| Native command queuing (NCQ) |
Y |
SSD 600GB 2.5in, SATA 3, 20nm flash memory, MLC 7mm OEM (Bulk) Pack
Consistently Amazing\nPremier Performance, Protection, and Optimization for\nthe Data Center\nThe Intel® Solid-State Drive DC S3500 Series offers the next\ngeneration of data center SSDs combining fast consistent read\nperformance with strong data protection, and leading edge 20nm\nflash technology.\nFast and Consistent Performance\nDeliver data at a rapid pace, with consistently low latencies and tight IOPS distribution.\nThe Intel® Solid-State Drive DC S3500 Series delivers superior Quality of Service for applications such\nas video streaming/conferencing, virtual client support, and big data analytics. All of these\napplications benefit from 50µs typical latency with max read latencies2 of 500µs for 99.9% of the\ntime and 4KB random read performance of up to 75,000 input/output operations per second (IOPS)1.\nPerformance delivered with low active read power (less than 1.3 watts1) means this Intel SSD helps\nimprove data center efficiency with reduced energy costs—making it an excellent value for data\ncenter storage application upgrades!\nStress-free Data Protection\nProtect your data center applications with multiple security checkpoints providing protection against\ndata loss and corruption. The Intel® SSD DC S3500 Series combines the following features to provide\nan SSD you can count on.\nFull End-to- End Data Protection.\nProtects your data from the time it enters the drive to the time it \nleaves. The Intel® SSD DC S3500 Series uses an advance error correction scheme that ensures data\nintegrity by protecting against possible data corruption in the NAND, SRAM, and DRAM memory. The\nIntel® SSD DC S3500 Series also protects the data in transit through several techniques such as parity\nchecks, Cyclic Redundancy Checks (CRC) and LBA tag validation. Once an error is detected, an\nimmediate attempt will be made to correct it, and any uncorrectable error will be reported to the host.\nTo further improve data assurance, the Intel® SSD DC S3500 Series provides data redundancy\ntechnology to minimize potential data loss.\nEnhanced Power-Loss Data Protection.\nReduces potential data loss by detecting and protecting data from an unexpected \nsystem power loss. The drive saves all cached data in the process of being written prior to shutting down, thereby reducing\npotential data loss.\nOptimized for Efficiency\nReduce the strain on tight IT budgets with leading Intel technologies. By combining the latest 20nm Multi-Level Cell (MLC) NAND\nflash memory technology with Intel’s latest SSD controller technology, the Intel® SSD DC S3500 Series delivers fast and consistent\nperformance, reduced power consumption and stress-free data protection. Optimize your dollars per IOP, energy costs, and floor\nspace in your data center with the amazingly efficient Intel® SSD DC S3500 Series.
