Memory
| Supported memory clock speeds |
1066, 1333, 1600 MHz |
| Supported memory types |
DDR3-SDRAM |
| Memory channels |
Dual |
| Number of memory slots |
2 |
| Maximum internal memory |
16 GB |
Performance
| BIOS memory size |
16 MB |
| Built-in camera |
N |
| Number of displays supported |
3 |
Motherboard
| Supported processor frequency (max) |
2.8 GHz |
| Number of processors supported |
1 |
Other features
| Number of processors installed |
1 |
| Power |
65 W |
Expansion slots
| Mini PCI Express slots |
2 |
| PCI Express slots version |
2.0 |
Processor
| Processor boost frequency |
2.8 GHz |
| Processor lithography |
22 nm |
| Thermal Design Power (TDP) |
17 W |
| Processor cores |
2 |
| Built-in processor |
Y |
| Processor frequency |
1.8 GHz |
Graphics
| On-board graphics adapter |
Y |
| Graphics adapter family |
Intel |
Ports & interfaces
| Combo headphone/mic port |
N |
| S/PDIF out port |
N |
| Microphone in |
N |
| USB 3.0 (3.1 Gen 1) Type-A ports quantity |
1 |
| HDMI ports quantity |
1 |
| DC-in jack |
Y |
Processor special features
| Intel Fast Memory Access |
Y |
| Intel Flex Memory Access |
Y |
| Execute Disable Bit |
Y |
| Idle States |
Y |
| Thermal Monitoring Technologies |
Y |
| Intel Trusted Execution Technology |
Y |
| Intel® Quick Sync Video Technology |
Y |
| Intel® Insider™ |
Y |
| Intel 64 |
Y |
| Intel Dual Display Capable Technology |
Y |
| Embedded options available |
N |
| Intel Virtualization Technology for Directed I/O (VT-d) |
Y |
| Intel® Smart Cache |
Y |
| Intel® Anti-Theft Technology (Intel® AT) |
Y |
| Intel® Identity Protection Technology (Intel® IPT) |
Y |
| Intel Hyper-Threading Technology |
Y |
| Intel® Turbo Boost Technology |
2.0 |
| Intel® Secure Key |
Y |
| Intel® My WiFi Technology (Intel® MWT) |
Y |
| Intel vPro Technology |
Y |
| Intel VT-x with Extended Page Tables (EPT) |
Y |
| Intel FDI Technology |
Y |
| Enhanced Intel SpeedStep Technology |
Y |
| Intel Demand Based Switching |
N |
| Intel® Wireless Display (Intel® WiDi) |
Y |
| Intel® Clear Video HD Technology (Intel® CVT HD) |
Y |
Networking
| Wi-Fi |
N |
| Networking features |
Gigabit LAN |
Certificates
| Compliance industry standards |
RoHS |
Additionally
| InTru™ 3D Technology |
Y |
| Chipset |
Intel QS77 Express |
| Mini DisplayPort quantity |
2 |
| Intel HD Audio Technology |
Y |
| Graphics |
HD Graphics 4000 |
| Ethernet LAN connection |
Y |
| On/Off switch |
Y |
| Intel AES New Instructions |
Y |
| AC adapter bundled |
Y |
| Ethernet LAN (RJ-45) ports quantity |
1 |

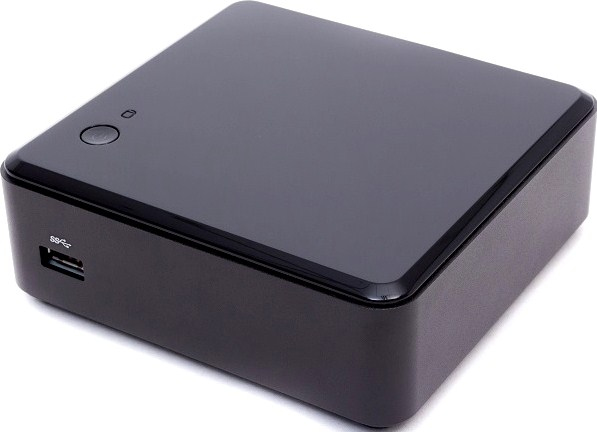

Boxed Intel NUC Kit DC53427HY, UCFF, Intel Core i5-3427U, DDR3 16GB Max (2 x DIMM), 2 x DP, 1 x HDMI, 4 x USB 2.0, 1 x USB 3.0, Gigabit LAN
A revolution in ultra-compact device design, Intel NUC packages a fully scalable, computing solution in the smallest possible form factor, complete with the Intel Core i5 vPro processor. This new generation computing device provides a flexible, customizable engine to drive digital signage, kiosks, and intelligent computing for small spaces, or anywhere else you can imagine.
Intel NUC also has triple display capabilities for multiple monitoring and display, along with Intel vPro technology which lets your IT service provider remotely manage or repair your system. With that kind of power and size, you’ll rethink what’s possible. Because the only thing more amazing than Intel technology is what you’ll do with it.
