Memory
Supported memory clock speeds |
1066, 1333, 1600 MHz |
Memory bandwidth (max) |
25.6 GB/s |
ECC |
N |
Supported memory types |
DDR3-SDRAM |
Memory voltage |
1.35, 1.5 V |
Memory channels |
Dual |
Memory slots type |
SO-DIMM |
Number of memory slots |
2 |
Maximum internal memory |
16 GB |
Performance
BIOS memory size |
128 MB |
BIOS type |
EEPROM |
Back-to-BIOS button |
N |
PC health monitoring |
Temperature |
Intel Express BIOS update |
Y |
Number of displays supported |
3 |
Motherboard
Supported processor frequency (max) |
2.8 GHz |
Number of processors supported |
1 |
Expansion slots
Mini PCI Express slots |
2 |
PCI Express slots version |
2.0 |
Processor
Processor boost frequency |
2.8 GHz |
Processor lithography |
22 nm |
Thermal Design Power (TDP) |
17 W |
L3 cache |
3 MB |
Processor cores |
2 |
Built-in processor |
Y |
Processor frequency |
1.8 GHz |
Storage
Number of storage drives supported |
1 |
Supported storage drive types |
SSD |
Graphics
On-board graphics adapter |
Y |
Graphics adapter family |
Intel |
Processor special features
Intel Fast Memory Access |
Y |
Intel Flex Memory Access |
Y |
Execute Disable Bit |
Y |
Idle States |
Y |
Thermal Monitoring Technologies |
Y |
Intel Trusted Execution Technology |
Y |
Intel® Quick Sync Video Technology |
Y |
Intel® Insider™ |
Y |
Intel 64 |
Y |
Intel Dual Display Capable Technology |
Y |
Embedded options available |
N |
Intel Virtualization Technology for Directed I/O (VT-d) |
Y |
Intel® Smart Cache |
Y |
Intel® Anti-Theft Technology (Intel® AT) |
Y |
Intel® Identity Protection Technology (Intel® IPT) |
Y |
Intel Hyper-Threading Technology |
Y |
Intel® Turbo Boost Technology |
2.0 |
Intel® Secure Key |
Y |
Intel® My WiFi Technology (Intel® MWT) |
Y |
Intel® Virtualization Technology (Intel® VT) |
VT-d, VT-x |
Intel vPro Technology |
Y |
Intel VT-x with Extended Page Tables (EPT) |
Y |
Intel FDI Technology |
Y |
Enhanced Intel SpeedStep Technology |
Y |
Intel Demand Based Switching |
N |
Intel® Wireless Display (Intel® WiDi) |
Y |
Intel® Clear Video HD Technology (Intel® CVT HD) |
Y |
Audio
Audio output channels |
7.1 channels |
Power
Number of power supply units |
1 |
Power supply |
65 W |
AC adapter output voltage |
19 V |
Power supply type |
External AC adapter |
Design
Product family |
Intel NUC |
Product series |
Intel NUC kit |
LED indicators |
HDD, Power, Reset |
Cooling type |
Active |
Ports & interfaces
USB 3.0 (3.1 Gen 1) Type-A ports quantity |
1 |
HDMI ports quantity |
1 |
DC-in jack |
Y |
DisplayPort version |
1.1a |
Networking
Wi-Fi |
N |
Networking features |
Gigabit Ethernet |
Packaging content
Quick start guide |
Y |
Power cord included |
Y |
Additionally
InTru™ 3D Technology |
Y |
Chipset |
Intel QS77 Express |
Mini DisplayPort quantity |
2 |
Intel HD Audio Technology |
Y |
Graphics |
HD Graphics 4000 |
Ethernet LAN connection |
Y |
Intel AES New Instructions |
Y |
AC adapter bundled |
Y |
Ethernet LAN (RJ-45) ports quantity |
1 |

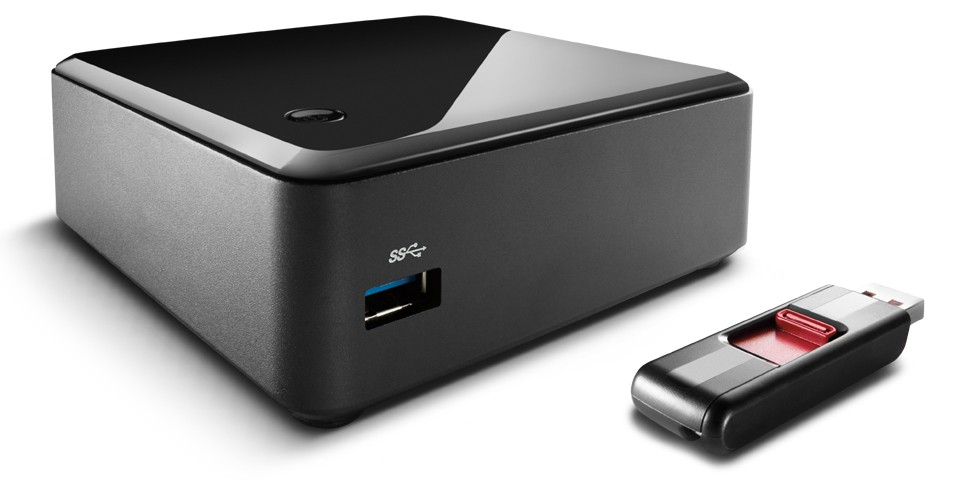

NUC Kit DC53427HYE
A revolution in ultra-compact device design, Intel® NUC packages a fully scalable, computing solution in the smallest possible form factor, complete with the Intel® Core™ i5 vPro™ processor. This new generation computing device provides a flexible, customizable engine to drive digital signage, kiosks, and intelligent computing for small spaces, or anywhere else you can imagine.
Intel® NUC also has triple display capabilities for multiple monitoring and display, along with Intel® vPro™ technology which lets your IT service provider remotely manage or repair your system. With that kind of power and size, you’ll rethink what’s possible. Because the only thing more amazing than Intel® technology is what you’ll do with it.
