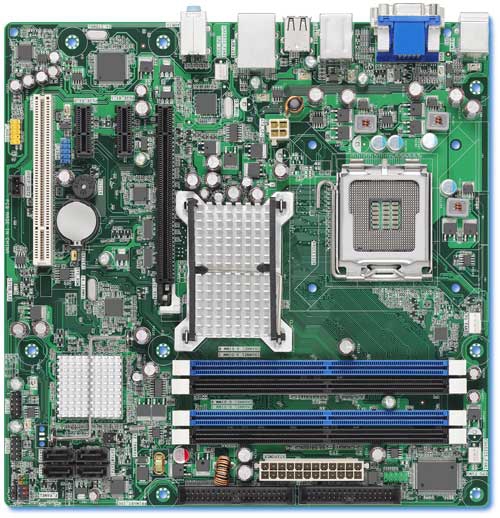

Intel DG35EC Socket T (LGA 775) Micro ATX motherboard

Intel DG35EC Socket T (LGA 775) Micro ATX motherboard

MPN: DG35EC
🚚 Select the country of delivery:
Delivery from:
Germany
Updating price ... 📣 Send Price inquiry Не поставляется
Delivery cost & estimated delivery time:
От
days

Where to buy and prices (Advertising *)

On Top
в наличии
* Alle Preise inkl. der jeweils geltenden gesetzlichen Mehrwertsteuer, ggfs. zzgl. Versandkosten. Alle Angaben ohne Gewähr. Preisänderungen sind in der Zwischenzeit möglich.

Technical specifications

On Top

Performance

Motherboard form factor Micro ATX
Audio system Intel HD

Memory

Supported memory clock speeds 667, 800 MHz
Number of memory slots 4
Maximum internal memory 8 GB

Back panel I/O ports

Serial ports quantity 1
DVI-D ports quantity 1
PS/2 ports quantity 2
Firewire (IEEE 1394) ports 1
Headphone outputs 1
Microphone in Y
VGA (D-Sub) ports quantity 1

Other features

Graphics controller Intel GMA X3500

Internal I/O

USB 2.0 connectors 4
Number of SATA connectors 4
Number of Parallel ATA connectors 1
Number of IEEE1394 connectors 1
Floppy disk drive connector Y

Graphics

On-board graphics adapter Y

Expansion slots

PCI slots 1
PCI Express x16 slots 1
PCI Express x1 slots 2

Networking

Networking features Gigabit Ethernet

Additionally

Ethernet LAN (RJ-45) ports quantity 1
DG35EC, Intel G35, DDR2 667 MHz The Intel® Desktop Board DG35EC Classic Series has been optimized to deliver new levels of performance and reliability for home and business users.

The Intel Desktop Board DG35EC has built-in microATX form factor supporting a range of processors including the Intel® Core™2 Duo processor, Intel® Core™2 Quad processor, Intel® Pentium® processor, Intel® Celeron® processor and Celeron® processor 400 series (up to 95W TDP). This board can support up to 8GB of dual channel DDR2 800/667 SDRAM memory. It also offers Intel® HD Video experience, Intel® High Definition Audio with support for 5.1 surround sound, integrated 10/100/1000 Network connection and ample USB connectors for all your computer peripherals. This Intel desktop board also offers IEEE 1394a, a new feature that contributes to a great digital entertainment experience.
