Internal I/O
| Serial port via internal header |
Y |
| USB 2.0 connectors |
4 |
| S/PDIF out connector |
Y |
| Number of SATA connectors |
2 |
| Number of SATA III connectors |
2 |
| Parallel connector |
Y |
| Front panel audio connector |
Y |
| Parallel port via internal header |
Y |
Performance
| Motherboard form factor |
Mini ITX |
| Motherboard ARK ID |
56455 |
| Motherboard chipset family |
Intel |
| Intel Dual Display Capable Technology |
Y |
| Component for |
PC |
| Cooling type |
Passive |
Memory
| Supported memory clock speeds |
800, 1066 MHz |
| Non-ECC |
Y |
| ECC |
N |
| Supported memory types |
DDR3-SDRAM |
| Memory voltage |
1.5 V |
| Memory channels |
Single |
| Memory slots type |
SO-DIMM |
| Supported memory module capacities |
2GB |
| Number of memory slots |
2 |
| Maximum internal memory |
4 GB |
Back panel I/O ports
| Parallel ports quantity |
1 |
| Serial ports quantity |
2 |
| Headphone outputs |
1 |
| Microphone in |
Y |
| HDMI ports quantity |
1 |
| VGA (D-Sub) ports quantity |
1 |
Expansion slots
| Mini PCI Express slots |
2 |
| PCI Express x1 slots |
1 |
| PCI Express x1 (Gen 2.x) slots |
1 |
| PCI Express slots version |
2.0 |
Graphics
| On-board graphics adapter |
Y |
| Graphics adapter family |
Intel |
| Discrete graphics support |
N |
| Number of displays supported |
2 |
Other features
| Graphics output |
LVDS eDP HDMI VGA |
| Embedded options available |
N |
Technical details
| Status |
End of Interactive Support |
| Total number of SATA connectors |
2 |
| PCIe Mini Card Slot (half length) |
1 |
| Market segment |
DT |
| PCIe Mini Card Slot (full length) |
1 |
| Born on date |
Q1'12 |
| Launch date |
2012-02-01T00:00:00 |
| Product name |
Intel Desktop Board DN2800MT |
| DC input capable |
Y |
| Supported RAID configuration |
N/A |
| Audio channels |
2,2 |
| Maximum memory |
4 GB |
| Maximum internal memory supported by processor |
4 GB |
| Form factor |
Mini-ITX |
| ECC supported by processor |
N |
| Number of displays supported (on-board graphics) |
2 |
| USB version |
2.0 |
| USB ports quantity |
8 |
Design
| Product family |
Desktop board |
| Product series |
Intel desktop board with Intel Atom |
Networking
| Wi-Fi |
N |
| Bluetooth |
N |
| Networking features |
Gigabit Ethernet |
Additionally
| Chipset |
Intel NM10 Express |
| Maximum memory |
4096 MB |
| Intel HD Audio Technology |
Y |
| Ethernet LAN connection |
Y |
| Ethernet LAN (RJ-45) ports quantity |
1 |

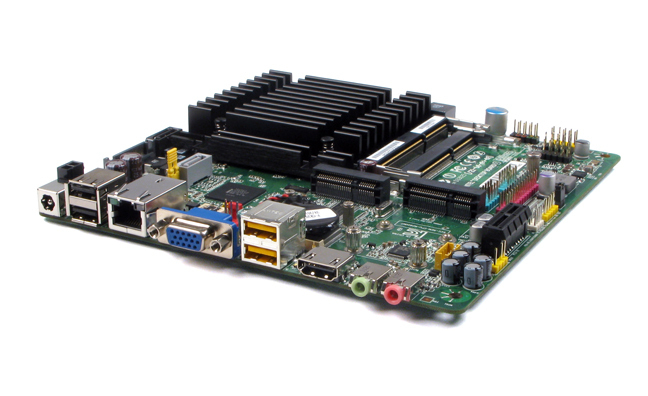

Intel® Desktop Board DN2800MT is integrated with the new Intel® Atom™ processor D2800 and the Intel® NM10 Express Chipset to offer a thin mini-ITX desktop computer system. The board features a 10/100/1000 integrated Intel® LAN, 1080 high-definition playback with HDMI, and Intel® High Definition Audio (Intel® HD Audio).
With the new low-power silicon, the Intel Desktop Board DN2800MT can be used in chassis that require no fan for heat dissipation. This board is designed for ultra small form factor (~1 liter) and All-In-One chassis.
While this desktop board is small in size, it delivers a rich multimedia and Internet experience with the support of 1080 high-definition video playback.
