Performance
| Motherboard form factor |
ATX |
| Intel Rapid Storage Technology |
Y |
| Supported processor sockets |
LGA 1366 (Socket B) |
| Motherboard ARK ID |
50242 |
| Motherboard chipset family |
Intel |
| PC health monitoring |
CPU, FAN, Temperature, Voltage |
| Intel Express BIOS update |
Y |
| Component for |
PC |
| Consumer infrared headers |
Y |
| Energy Star certified |
Y |
Memory
| Supported memory clock speeds |
1066, 1333, 1600, 2000 MHz |
| Non-ECC |
Y |
| Supported memory types |
DDR3-SDRAM |
| Memory voltage |
1.35, 1.5 V |
| Memory channels |
Triple |
| Memory slots type |
DIMM |
| Number of memory slots |
6 |
| Maximum internal memory |
48 GB |
Internal I/O
| USB 2.0 connectors |
6 |
| S/PDIF out connector |
Y |
| Number of SATA III connectors |
2 |
| Number of SATA II connectors |
6 |
| Internal FireWire ports quantity |
1 |
| Front panel audio connector |
Y |
Other features
| Number of processors supported |
1 |
| Intel Xeon series |
3000 |
| CPU configuration (max) |
1 |
| Embedded options available |
N |
Processor special features
| Intel Fast Memory Access |
Y |
| Intel 64 |
Y |
| Intel Hyper-Threading Technology |
Y |
| Intel® Turbo Boost Technology |
2.0 |
Expansion slots
| PCI slots |
1 |
| PCI Express x1 (Gen 2.x) slots |
2 |
| PCI Express x16 (Gen 2.x) slots |
3 |
Technical details
| Status |
End of Interactive Support |
| Total number of SATA connectors |
10 |
| USB 3.0 (3.1 Gen 1) ports quantity |
2 |
| Maximum internal memory supported by processor |
24 GB |
| Form factor |
ATX |
| ECC supported by processor |
Y |
Design
| Product family |
Desktop board |
| Product series |
Legacy Intel desktop board |
Back panel I/O ports
| Firewire (IEEE 1394) ports |
1 |
| eSATA ports quantity |
2 |
| USB 3.0 (3.1 Gen 1) Type-A ports quantity |
2 |
Processor
| Intel Core i3/i5/i7 series |
i7-xxx, i7-xxx Extreme Edition |
Additionally
| Chipset |
Intel X58 |
| Maximum memory |
24576 MB |
| Intel HD Audio Technology |
Y |
| Ethernet LAN connection |
Y |
| Ethernet LAN (RJ-45) ports quantity |
2 |

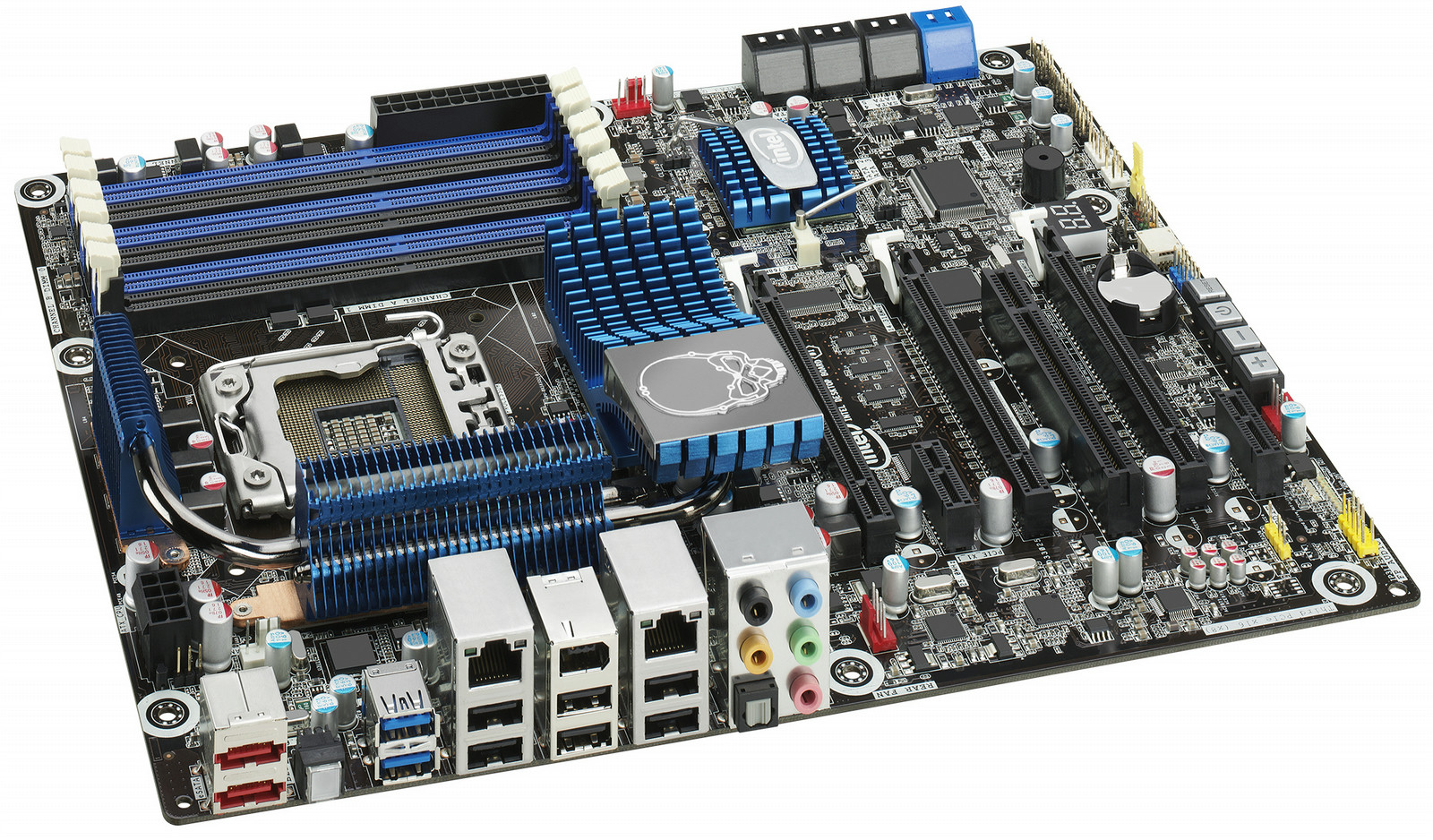

Intel is breaking down the barriers when it comes to the performance and bandwidth that gamers, digital media creators, and ultimate multi-taskers need most. The Intel® Desktop Board DX58SO2 provides breakaway performance in production and editing as well as digital media rendering and real-time audio/video preview capabilities.
The massive data throughput and support for the Intel® Core™ i7 processor Extreme Edition runs more applications simultaneously with less wait time. SuperSpeed Universal Serial Bus (USB) 3.0, SATA 6.0 Gb/s, triple channel DDR3 memory, and full support for ATI CrossfireX band NVIDIA SLI technology are just a few of the many features supported on this board.
