Internal I/O
| Serial port via internal header |
N |
| USB 2.0 connectors |
6 |
| Number of SATA connectors |
6 |
| USB 3.0 (3.1 Gen 1) connectors |
2 |
| Number of SATA III connectors |
2 |
| Number of SATA II connectors |
4 |
| Chassis intrusion connector |
Y |
| Front panel audio connector |
Y |
| Parallel port via internal header |
N |
Performance
| Motherboard form factor |
Micro ATX |
| Extended Life Program (XLP) |
N |
| Intel Rapid Storage Technology |
Y |
| Motherboard ARK ID |
69307 |
| Motherboard chipset family |
Intel |
| Audio system |
HD |
| Component for |
PC |
Memory
| Supported memory clock speeds |
1066, 1333, 1600, 2400 MHz |
| Non-ECC |
Y |
| ECC |
N |
| Supported memory types |
DDR3-SDRAM |
| Memory voltage |
1.2, 1.5, 1.8 V |
| Memory channels |
Dual |
| Memory slots type |
DIMM |
| Number of memory slots |
4 |
| Maximum internal memory |
32 GB |
BIOS
| BIOS memory size |
64 MB |
| Back-to-BIOS button |
N |
Other features
| Number of processors supported |
1 |
| Graphics output |
HDMI DVI-I |
| CPU configuration (max) |
1 |
| Embedded options available |
N |
Graphics
| On-board graphics adapter |
Y |
| Graphics adapter family |
Intel |
| Discrete graphics support |
Y |
Technical details
| Status |
End of Interactive Support |
| Total number of SATA connectors |
6 |
| Market segment |
DT |
| Born on date |
Q3'12 |
| Product name |
Intel Desktop Board DZ75ML-45K |
| Supported RAID configuration |
0,1,5,10 |
| Audio channels |
6,2 |
| Maximum memory |
32 GB |
| Maximum internal memory supported by processor |
32 GB |
| Form factor |
Micro ATX |
| USB ports quantity |
14 |
Expansion slots
| PCI Express x1 (Gen 2.x) slots |
2 |
| PCI Express x16 (Gen 2.x) slots |
2 |
| PCI Express x16 (Gen 3.x) slots |
1 |
Design
| Product family |
Desktop board |
| Product series |
Intel desktop board with Intel Z75 Express |
Back panel I/O ports
| DVI-I ports quantity |
1 |
| USB 3.0 (3.1 Gen 1) Type-A ports quantity |
2 |
| HDMI ports quantity |
1 |
Processor
| Intel Core i3/i5/i7 series |
i3-2xxx, i3-3xxx, i5-2xxx, i5-3xxx, i7-2xxx, i7-2xxx Extreme Edition, i7-3xxx |
Packaging content
| Quick installation guide |
Y |
Additionally
| Chipset |
Intel Z75 Express |
| Maximum memory |
33000 MB |
| Intel HD Audio Technology |
Y |
| Graphics |
HD Graphics |
| System bus data transfer rate |
5 GT/s |
| Ethernet LAN connection |
Y |
| Ethernet LAN (RJ-45) ports quantity |
1 |

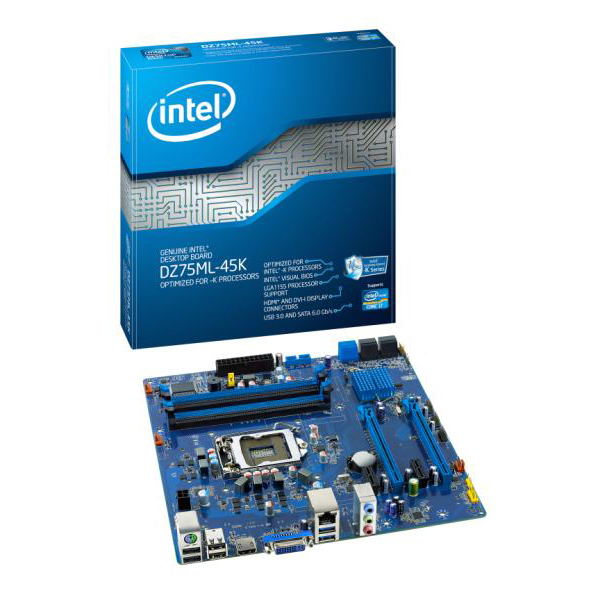

Latest in a series of Intel® Desktop boards optimized for the Intel® -K processors, the Intel Desktop Board DZ75ML-45K is targeted for performance enthusiasts who are looking for a more affordable solution within the new –K series of the Intel® Desktop Boards in a microATX form factor. This Intel® Z75 Express Chipset-based product allows overclocking of the Core as well as the Graphics, and Memory frequencies. The Intel Desktop Board DZ75ML-45K also supports Intel® HD Graphics with the LucidLogix Virtu MVP GPU Virtualization software.
