Processor
| Processor frequency |
500 MHz |
| Processor lithography |
22 nm |
| Microcontroller model |
Intel Quark |
| Microcontroller frequency |
100 MHz |
| 64-bit computing |
N |
| CPU configuration (max) |
1 |
Ports & interfaces
| Serial port via internal header |
Y |
| Serial ports quantity |
2 |
| Bluetooth version |
4.0 LE |
| Audio port type |
I2S |
| Frequency range |
2.4 - 5 GHz |
| USB ports quantity |
1 |
| Bluetooth |
Y |
| Wi-Fi |
Y |
| USB version |
2.0 |
Features
| Output current |
100 mA |
| Back-to-BIOS button |
N |
| Extended Life Program (XLP) |
N |
| Low halogen options available |
Y |
| Intel Trusted Execution Technology |
Y |
| USB On-The-Go support |
Y |
| Gyroscope |
Y |
| Physical Address Extension (PAE) |
Y |
| ARK ID |
84574 |
| FSB Parity |
N |
| Embedded options available |
N |
| Intel® Anti-Theft Technology (Intel® AT) |
N |
| DSP sensor hub integrated |
Y |
| Output voltage |
1.8 V |
| Accelerometer |
Y |
| Motion sensor |
Y |
| Connector(s) |
UART, SPI, GPIO |
Memory
| Memory bus |
32 bit |
| ECC |
N |
| Memory clock speed |
800 MHz |
| Memory channels |
Dual |
| Flash memory type |
NAND |
| Internal memory type |
LPDDR3 |
| Flash memory |
4096 MB |
| Maximum internal memory |
1 GB |
Weight & dimensions
| Package size |
25 x 35.5 mm |
| Board dimensions |
25 x 35.5 mm |
| Height |
3.9 mm |
Design
| Product family |
Intel Edison |
| Product series |
Intel Edison board |
Additionally
| Ethernet LAN connection |
N |
| Intel AES New Instructions |
N |
| Operating temperature range (T-T) |
0 - 40 °C |

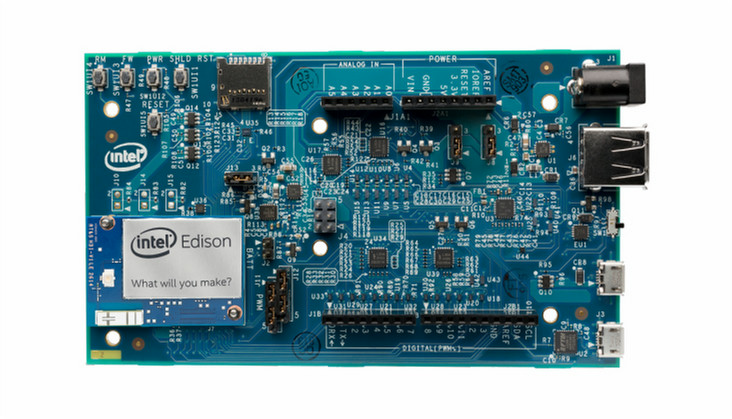

Edison Board for Arduino
The Intel® Edison compute module and breakout board kit enables users to interface with a wide range of Arduino* Uno R3 shields, allowing for quick and easy prototyping with open source hardware and a software development environment.
Make it to Market
The Intel® Edison development platform is the first in a series of low-cost, product-ready, general purpose compute platforms that help lower the barriers to entry for entrepreneurs of all sizes—from pro makers to consumer electronics and companies working in the Internet of Things (IoT). The Intel Edison development platform packs a robust set of features into its small size, delivering great performance, durability, and a broad spectrum of I/O and software support. Those versatile features help meet the needs of a wide range of customers.
- Uses a 22nm Intel® SoC that includes a dual core, dual threaded Intel® Atom™ CPU at 500MHz and a 32-bit Intel® Quark™ microcontroller at 100 MHz. It supports 40 GPIOs and includes 1GB LPDDR3, 4 GB EMMC, and dual-band WiFi and BTLE on a module slightly larger than a postage stamp.
- The Intel Edison module will initially support development with Arduino and C/C++, followed by Node.JS, Python, RTOS, and Visual Programming support in the near future.
- The Intel Edison module includes a device-to-device and device-to-cloud connectivity framework to enable cross-device communication and a cloud-based, multi-tenant, time-series analytics service.
