Ports & interfaces
| Frequency range |
2.4 - 5 GHz |
| Bluetooth |
Y |
| Audio port type |
I2S |
| USB ports quantity |
1 |
| USB version |
2.0 |
| Wi-Fi |
Y |
| Serial ports quantity |
2 |
| Serial port via internal header |
Y |
Memory
| Flash memory type |
NAND |
| Memory channels |
Dual |
| Internal memory type |
LPDDR3 |
| Flash memory |
4096 MB |
| Maximum internal memory |
1 GB |
| Memory clock speed |
800 MHz |
| ECC |
N |
| Memory bus |
32 bit |
Features
| Intel® Anti-Theft Technology (Intel® AT) |
N |
| Embedded options available |
N |
| FSB Parity |
N |
| Physical Address Extension (PAE) |
Y |
| Intel Trusted Execution Technology |
Y |
| Low halogen options available |
Y |
| Extended Life Program (XLP) |
N |
| Back-to-BIOS button |
N |
| Output current |
100 mA |
Processor
| CPU configuration (max) |
1 |
| Processor frequency |
500 MHz |
| 64-bit computing |
N |
| Microcontroller frequency |
100 MHz |
| Microcontroller model |
Intel Quark |
| Processor lithography |
22 nm |
Design
| Product series |
Intel Edison kit |
| Product family |
Intel Edison |
Weight & dimensions
| Package size |
25 x 35.5 mm |
Additionally
| Ethernet LAN connection |
N |
| Intel AES New Instructions |
N |

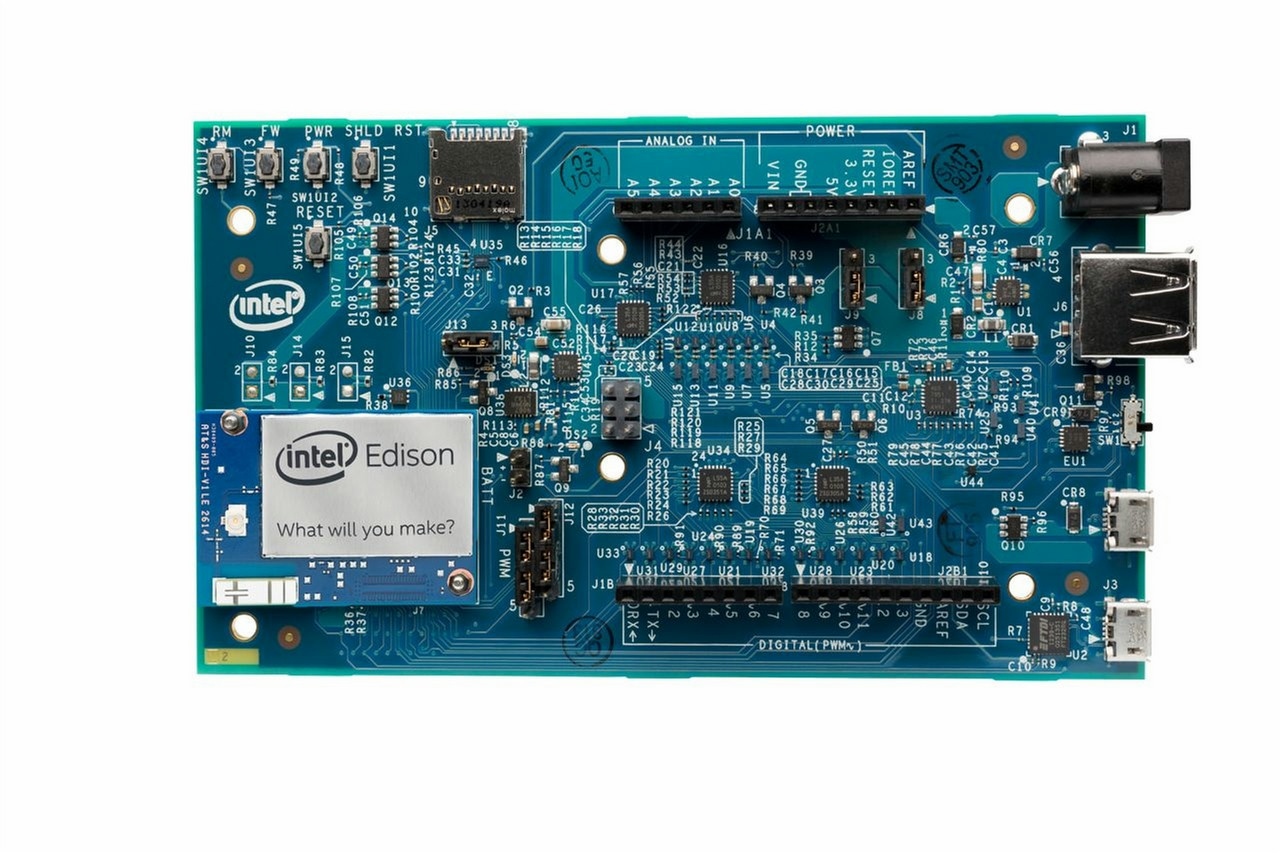

Edison Kit for Arduino
<b>Make it to Market</b>
The Intel® Edison development platform is the first in a series of low-cost, product-ready, general purpose compute platforms that help lower the barriers to entry for entrepreneurs of all sizes—from pro makers to consumer electronics and companies working in the Internet of Things (IoT). The Intel Edison development platform packs a robust set of features into its small size, delivering great performance, durability, and a broad spectrum of I/O and software support. Those versatile features help meet the needs of a wide range of customers.
- Uses a 22nm Intel® SoC that includes a dual core, dual threaded Intel® Atom™ CPU at 500MHz and a 32-bit Intel® Quark™ microcontroller at 100 MHz. It supports 40 GPIOs and includes 1GB LPDDR3, 4 GB EMMC, and dual-band WiFi and BTLE on a module slightly larger than a postage stamp.
- The Intel Edison module will initially support development with Arduino and C/C++, followed by Node.JS, Python, RTOS, and Visual Programming support in the near future.
- The Intel Edison module includes a device-to-device and device-to-cloud connectivity framework to enable cross-device communication and a cloud-based, multi-tenant, time-series analytics service.
