Features
| Extended Life Program (XLP) |
N |
| Back-to-BIOS button |
N |
| Intel Rapid Storage Technology |
N |
| Low halogen options available |
Y |
| Intel Fast Memory Access |
N |
| Intel Flex Memory Access |
N |
| Intel Trusted Execution Technology |
N |
| Intel® Small Business Advantage (Intel® SBA) |
N |
| Physical Address Extension (PAE) |
Y |
| ARK ID |
78919 |
| Intel Remote Wake technology |
N |
| Intel Remote PC Assist Technology (RPAT) |
N |
| Intel Quiet System Technology (QST) |
N |
| Intel Quick Resume Technology |
N |
| FSB Parity |
N |
| Embedded options available |
N |
| Intel AC'97 technology |
N |
| Intel Client Initiated Remote Access (CIRA) technology |
N |
| Trusted Platform Module (TPM) |
N |
| DC input voltage |
5 V |
| Intel® Anti-Theft Technology (Intel® AT) |
N |
| Intel® Virtualization Technology (Intel® VT) |
N |
| Intel vPro Technology |
N |
| Form factor |
Arduino |
| Intel Matrix Storage Technology |
N |
Processor
| Processor frequency |
400 MHz |
| Processor lithography |
32 nm |
| Thermal Design Power (TDP) |
12.5 W |
| Processor cache |
16 KB |
| Microcontroller model |
Intel Quark |
| 64-bit computing |
N |
| CPU configuration (max) |
1 |
| Processor cores |
1 |
Ports & interfaces
| Serial port via internal header |
Y |
| Serial ports quantity |
1 |
| Ethernet interface type |
Fast Ethernet |
| Power over Ethernet (PoE) |
Y |
| Power over Ethernet (PoE) voltage |
12 V |
| USB ports quantity |
3 |
| Wi-Fi |
N |
| USB version |
2.0 |
Software
| Linux operating systems supported |
Y |
| Mac operating systems supported |
Y |
| Windows operating systems supported |
Y |
Memory
| Memory bandwidth (max) |
2.5 GB/s |
| Memory bus |
32 bit |
| ECC |
N |
| Memory clock speed |
800 MHz |
| Memory channels |
Single |
| Flash memory type |
NOR |
| SRAM (Static Random Access Memory) |
512 KB |
| EEPROM (Electrically Erasable Programmable Read-Only Memory) |
8 KB |
| Internal memory type |
DDR3 |
| Flash memory |
8 MB |
| Compatible memory cards |
MicroSD (TransFlash), MicroSDHC |
| Maximum internal memory |
0.256 GB |
| Maximum memory card size |
32 GB |
Expansion slots
| PCI Express x1 slots |
1 |
| PCI version |
2.0 |
| PCI Express interface data lanes |
x1 |
| Mini PCI Express slots (full) |
1 |
Additionally
| Intel HD Audio Technology |
N |
| Ethernet LAN connection |
Y |
| Intel AES New Instructions |
N |

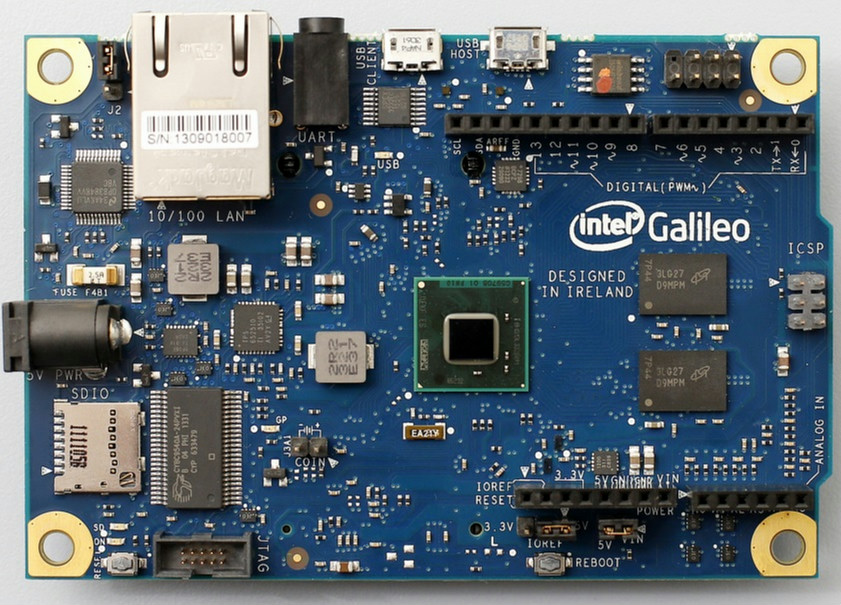

Galileo Board
Arduino Compatible development board
The Intel® Galileo board is a microcontroller board based on the Intel® Quark SoC X1000 application processor, a 32-bit Intel® Pentium® brand system on a chip (SoC). It is the first board based on Intel® architecture designed to be hardware and software pin-compatible with shields designed for the Arduino Uno R3.
This platform provides the ease of Intel architecture development through support for the Microsoft Windows, Mac OS, and Linux host operating systems. It also brings the simplicity of the Arduino integrated development environment (IDE) software.
The Intel Galileo board is also software-compatible with the Arduino software development environment, which makes usability and introduction a snap. In addition to Arduino hardware and software compatibility, the Intel Galileo board has several PC industry standard I/O ports and features to expand native usage and capabilities beyond the Arduino shield ecosystem. A full-sized mini-PCI Express slot, 100 Mb Ethernet port, Micro-SD slot, RS-232 serial port, USB host port, USB client port, and 8 Mbyte NOR Flash come standard on the board.
The genuine Intel® processor and surrounding native I/O capabilities of the SoC provides for a fully featured offering for both the maker community and students alike. It will also be useful to professional developers who are looking for a simple and cost effective development environment to the more complex Intel® Atom™ processor and Intel® Core™ processor-based designs.
