Features
| Intel Rapid Storage Technology |
N |
| Intel Fast Memory Access |
N |
| Intel Flex Memory Access |
N |
| Intel Rapid Storage Technology enterprise |
N |
| Intel I/O Acceleration Technology |
N |
| Intel Clear Video Technology |
N |
| Intel Remote Wake technology |
N |
| Intel Remote PC Assist Technology (RPAT) |
N |
| Intel Quiet System Technology (QST) |
N |
| Intel Quick Resume Technology |
N |
| Embedded options available |
N |
| Intel AC'97 technology |
N |
| Intel Client Initiated Remote Access (CIRA) technology |
N |
| Trusted Platform Module (TPM) |
N |
| Intel Virtualization Technology for Directed I/O (VT-d) |
N |
| Intel® Anti-Theft Technology (Intel® AT) |
N |
| Intel vPro Technology |
N |
| Form factor |
24mm x 48mm |
| Board type |
Compute module |
| Intel Matrix Storage Technology |
N |
Graphics
| On-board graphics adapter |
Y |
| Number of displays supported |
2 |
Processor
| Processor lithography |
14 nm |
Memory
| Memory bandwidth (max) |
25.6 GB/s |
| ECC |
N |
| Embedded storage capacity |
16 GB |
| Memory channels |
Quad |
| Removable memory card slot |
Yes |
| Internal memory type |
LPDDR4 |
| Maximum internal memory |
4 GB |
| Internal storage capacity |
16 GB |
| Pre-installed memory |
Y |
Expansion slots
| Maximum number of PCI Express lanes |
1 |
| PCI Support |
Yes |
| PCI version |
2.0 |
| PCI Express x1 (Gen 2.x) slots |
1 |
Design
| Product family |
Intel® Joule™ Products |
| Product series |
Intel® Joule™ Compute Modules |
Weight & dimensions
| Board dimensions |
24 x 48 mm |
Ports & interfaces
| MIMO |
Y |
| USB 3.0 (3.1 Gen 1) ports quantity |
1 |
| Wi-Fi |
Y |
| Wi-Fi standards |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Bluetooth |
Y |
| USB version |
2.0/3.0 (3.1 Gen 1) |
| USB ports quantity |
2 |
Additionally
| Intel HD Audio Technology |
N |
| Ethernet LAN connection |
N |
| Intel AES New Instructions |
Y |

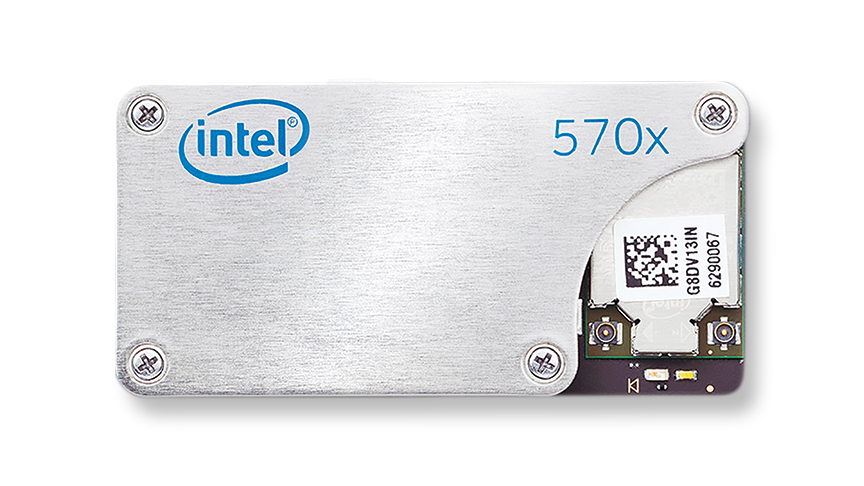

Joule 570x Compute Module
Pre-Installed Memory
Pre-Installed Memory indicates presence of memory that comes factory loaded on the device.
PCI Support
PCI support indicates the type of support for the Peripheral Component Interconnect standard
Intel® AES New Instructions
Intel® AES New Instructions (Intel® AES-NI) are a set of instructions that enable fast and secure data encryption and decryption. AES-NI are valuable for a wide range of cryptographic applications, for example: applications that perform bulk encryption/decryption, authentication, random number generation, and authenticated encryption.
