Design
| Motherboard form factor |
UCFF |
| Product type |
Mini PC (<= 3L) barebone |
Memory
| Supported memory clock speeds |
2133 MHz |
| Memory bandwidth (max) |
34.1 GB/s |
| Supported memory types |
DDR4-SDRAM |
| Memory voltage |
1.2 V |
| Memory channels |
Dual |
| Memory slots type |
SO-DIMM |
| Number of memory slots |
2 |
| Maximum internal memory |
32 GB |
Storage
| Storage drive sizes supported |
2.5 " |
| Number of storage drives supported |
1 |
| Supported storage drive types |
HDD, SSD |
| Compatible memory cards |
SDXC |
| Storage drive interface |
M.2, Serial ATA |
Motherboard
| Number of processors supported |
1 |
| Processor socket |
BGA 1356 |
Processor special features
| Intel Rapid Storage Technology |
Y |
| Intel Flex Memory Access |
Y |
| Execute Disable Bit |
Y |
| Idle States |
Y |
| Thermal Monitoring Technologies |
Y |
| Intel Trusted Execution Technology |
N |
| Intel® Small Business Advantage (Intel® SBA) |
Y |
| Intel Stable Image Platform Program (SIPP) |
N |
| Intel® Quick Sync Video Technology |
Y |
| Intel® Insider™ |
Y |
| Intel 64 |
Y |
| Intel Clear Video Technology |
Y |
| Intel® Smart Response Technology |
Y |
| Embedded options available |
Y |
| Intel Virtualization Technology for Directed I/O (VT-d) |
Y |
| Intel Hyper-Threading Technology |
Y |
| Intel® Turbo Boost Technology |
N |
| Intel® Secure Key |
Y |
| Intel® My WiFi Technology (Intel® MWT) |
Y |
| Intel vPro Technology |
N |
| Intel VT-x with Extended Page Tables (EPT) |
Y |
| Enhanced Intel SpeedStep Technology |
Y |
| Intel TSX-NI |
N |
| Intel® OS Guard |
Y |
| Intel® Wireless Display (Intel® WiDi) |
Y |
| Intel® Clear Video HD Technology (Intel® CVT HD) |
Y |
Graphics
| On-board graphics adapter |
Y |
| Graphics adapter family |
Intel |
Processor
| Processor lithography |
14 nm |
| Thermal Design Power (TDP) |
15 W |
| Processor threads |
4 |
| Processor cores |
2 |
| Built-in processor |
Y |
| Processor frequency |
2.40 GHz |
Audio
| Audio output channels |
7.1 channels |
Networking
| Bluetooth version |
4.2 |
| Wi-Fi |
Y |
| Wi-Fi standards |
IEEE 802.11ac |
| Bluetooth |
Y |
Performance
| Trusted Platform Module (TPM) |
N |
| Number of displays supported |
3 |
Ports & interfaces
| DisplayPorts quantity |
1 |
| HDMI version |
2.0a |
| DC-in jack |
Y |
| USB 3.0 (3.1 Gen 1) Type-A ports quantity |
4 |
| HDMI ports quantity |
1 |
| DisplayPort version |
1.2 |
Expansion slots
| PCI Express slots version |
3.0 |
Power
| Power supply type |
External AC adapter |
Additionally
| InTru™ 3D Technology |
Y |
| Intel HD Audio Technology |
Y |
| Colour of product |
Black, Grey |
| Ethernet LAN connection |
Y |
| Intel AES New Instructions |
Y |

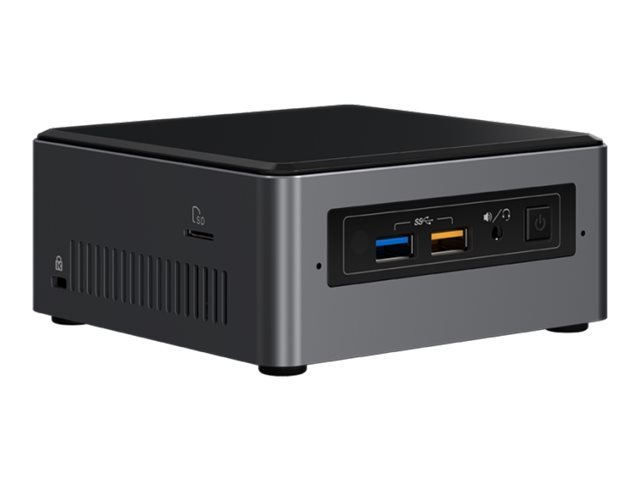

NUC Kit NUC7i3BNHX1 with Intel Optane Memory
PCI Express Revision is the version supported by the processor. Peripheral Component Interconnect Express (or PCIe) is a high-speed serial computer expansion bus standard for attaching hardware devices to a computer. The different PCI Express versions support different data rates.
Intel® Optane™ memory is a revolutionary new class of non-volatile memory that sits in between system memory and storage to accelerate system performance and responsiveness. When combined with the Intel® Rapid Storage Technology Driver, it seamlessly manages multiple tiers of storage while presenting one virtual drive to the OS, ensuring that data frequently used resides on the fastest tier of storage. Intel® Optane™ memory requires specific hardware and software configuration.
Intel® AES New Instructions (Intel® AES-NI) are a set of instructions that enable fast and secure data encryption and decryption. AES-NI are valuable for a wide range of cryptographic applications, for example: applications that perform bulk encryption/decryption, authentication, random number generation, and authenticated encryption.
