Technical details
| Number of storage drives supported |
4 |
| Firewire support |
N |
| Born on date |
Q2 '11 |
| Product name |
Intel Server System P4304BTLSHCN |
| USB ports quantity |
9 |
| Maximum memory |
32 GB |
| Supported RAID configuration |
Intel RST 0, 1, 10, 5; ESRT2 0, 1, 10, optional 5 |
| Optical drive supported |
N |
| Launch date |
2011-04-05T00:00:00 |
| 3.5" hard drive support |
Supports up to 4 hot-swap 2.5" or 3.5" drives |
| Redundant fans |
N |
| PCI 32/33 slots |
1 |
| Market segment |
SRV |
| Number of 2.5" bays |
4 |
| Intel Efficient Power Technology |
N |
| Intel Quiet Thermal Technology |
N |
| Intel Server Customization Technology |
N |
| Intel Advanced Management Technology |
N |
| Intel Rapid Storage Technology enterprise |
N |
| Status |
End of Life |
| Number of 3.5" bays |
4 |
| Intel Build Assurance Technology |
N |
| Chassis dimensions |
17.24 x 21.5 x 6.9 " |
| 2.5" hard drive support |
Supports up to 4 hot-swap 2.5" or 3.5" drives |
Design
| Rack rails |
N |
| Chassis type |
Rack (4U) |
| Optical drive type |
N |
| Supported board |
Intel S1200BTL |
| Product codename |
Beartooth Pass |
| Product series |
Intel P4304BT |
| Product family |
4U pedestal (rackable) server system |
| Redundant fans support |
N |
| Motherboard form factor |
ATX |
Expansion slots
| PCI Express x16 slots |
1 |
| PCI Express slots version |
2.0 |
| PCI Express x8 (Gen 2.x) slots |
3 |
| PCI Express x16 (Gen 2.x) slots |
1 |
| PCI Express x8 slots |
3 |
Other features
| Heat sink |
1 |
| Form factor |
ATX |
| Ventilation fan(s) |
1 x 92mm |
| Number of SATA connectors |
6 |
Graphics
| On-board graphics adapter |
Y |
Performance
| Trusted Platform Module (TPM) version |
1.2 |
| Trusted Platform Module (TPM) |
Y |
| Rack-Friendly board |
Y |
Processor special features
| Intel Remote Management Module Support |
Y |
| Intel Server Management Software |
Y |
| Intel Matrix Storage Technology |
N |
| Intel Virtualization Technology for Directed I/O (VT-d) |
Y |
| Intel On-Demand Power Redundancy Technology |
N |
| CPU configuration (max) |
1 |
| Processor ARK ID |
55081 |
| Intelligent Platform Management Interface (IPMI) support |
Y |
| Intel Rapid Storage Technology |
Y |
| Intel Intelligent Power Node Manager |
Y |
Memory
| ECC |
Y |
| Maximum internal memory |
32 GB |
| Memory slots |
4 |
| Internal memory type |
DDR3-SDRAM |
Ports & interfaces
| Total number of SATA connectors |
6 |
| VGA (D-Sub) ports quantity |
1 |
| InfiniBand |
N |
| Serial ports quantity |
2 |
Processor
| Processor manufacturer |
Intel |
| Maximum number of SMP processors |
1 |
Power
| Power supply type |
AC |
| Power supply |
365 W |
| Number of power supply units |
1 |
Networking
| Networking features |
Gigabit Ethernet |
| Cabling technology |
10/100/1000Base-T(X) |
Storage
| Hard drive interface |
Serial Attached SCSI (SAS), Serial ATA |
| RAID support |
Y |
| Number of hard drives supported |
4 |
| Hot-swap |
Y |
| Embedded USB (eUSB) SSD option |
N |
| Hard drive size |
3.5 " |
Additionally
| Ethernet LAN connection |
Y |
| Ethernet LAN (RJ-45) ports quantity |
2 |

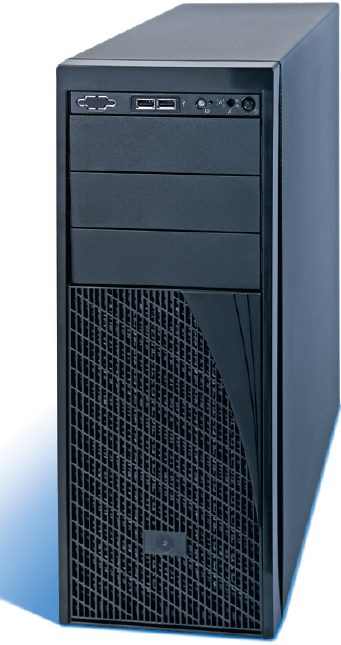

Server System P4304BTLSHCN
Integrated Graphics
Integrated graphics allow for incredible visual quality, faster graphic performance and flexible display options without the need for a separate graphics card.
Intel Intelligent Power Node Manager
Intel Intelligent Power Node Manager is a platform resident technology that enforces power and thermal policies for the platform. It enables data center power and thermal management by exposing an external interface to management software through which platform policies can be specified. It also enables specific data center power management usage models such as power limiting.
Intel Remote Management Module Support
The Intel Remote Management Module allows you to securely gain access and control servers and other devices from any machine on the network. Remote access includes remote management capability, including power control, KVM, and media redirection, with a dedicated management network interface card.
