Sustained data transfer rate (native) | 12288 MB/s |
---|---|
RAID ARK ID | 81278 |
Internal memory | 8 MB |
Data transfer rate | 12 Gbit/s |
Compatibility | Intel Server System R1208WT2GS\nIntel Server System R1208WTTGS\nIntel Server System R1304WT2GS\nIntel Server System R1304WTTGS\nIntel Server System R2208WT2YS\nIntel Server System R2208WTTYC1\nIntel Server System R2208WTTYS\nIntel Server System R2224WTTYS\nIntel Server System R2308WTTYS\nIntel Server System R2312WTTYS |
Status | Launched |
---|---|
Market segment | SRV |
Born on date | Q2 '14 |
Launch date | 2014-06-26T00:00:00 |

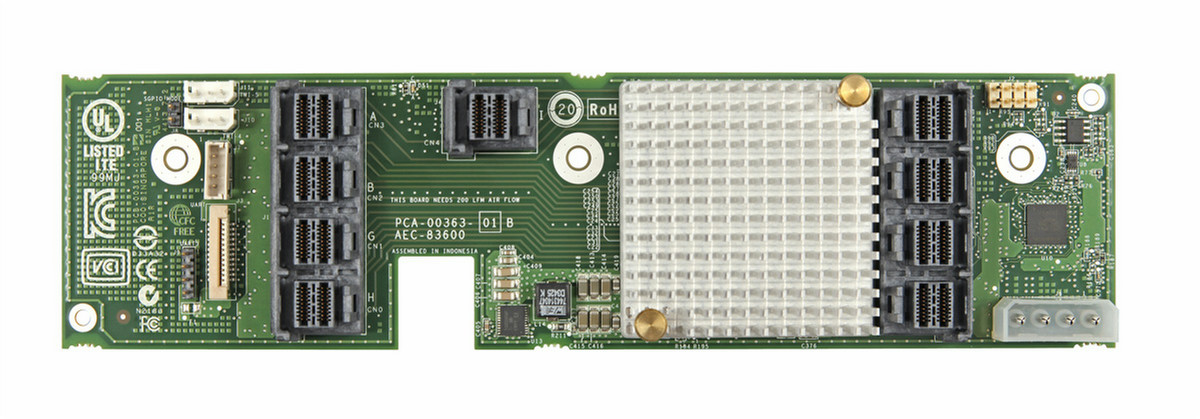

Product name | Intel RAID Expander RES3TV360 |
Data transfer rate | 12288 Mbit/s |
Product type | 16 |
Packaging content | (1) Expander board and short cables to connect to 24-ports on nearby drive backplane |
Internal mini-SAS ports | 36 |
---|---|
Supported storage drive interfaces | SAS, Serial ATA |
Supported devices | SAS/SATA |
---|---|
Internal ports | 36 |
Depth | 216 mm |
---|---|
Width | 57.1 mm |
Voltage | 12 V |
---|
Form factor | Midplane Board |
---|
Operating temperature range (T-T) | 0 - 55 °C |
---|
