Intel RMS3CC040 SIOM Connector 3.0 12Gbit/s RAID controller

Name: Intel RMS3CC040
Brand: Intel

EAN: 675901255837

MPN: RMS3CC040

🚚 Select the country of delivery:

Delivery from:

Germany

Updating price ... 📣 Send Price inquiry Не поставляется

Delivery cost & estimated delivery time:

От

days

Sale and delivery by:

Mercatos.com

. . Imprint / Online Dispute Resolution Terms of Service Cancellation policy Data protection 💳 Payment Methods...

buy now I will buy itASK A QUESTION

Advertising *

Показать все предложения

See all offers

Where to buy and prices (Advertising *)

On Top

в наличии

to seller

* Alle Preise inkl. der jeweils geltenden gesetzlichen Mehrwertsteuer, ggfs. zzgl. Versandkosten. Alle Angaben ohne Gewähr. Preisänderungen sind in der Zwischenzeit möglich.

Technical specifications

On Top

System requirements

Linux operating systems supported	Y
Windows operating systems supported	Y

Ports & interfaces

PCI Card form factor	Full-height (low-profile)
Supported storage drive interfaces	SAS, Serial ATA
Internal SAS ports	4
Host interface	PCI Express x8
PCI Express slots version	3.0

Performance

Sustained data transfer rate (native)	12288 MB/s
Memory clock speed	1866 MHz
RAID ARK ID	82030
Compatible battery backup options	AXXRMFBU5
Internal memory	1024 MB
Internal memory type	DDR3
Data transfer rate	12 Gbit/s
RAID levels	1, 10, 5, 50, 6, 60
Compatibility	Intel Server System R1208WT2GS\nIntel Server System R1208WTTGS\nIntel Server System R1304WT2GS\nIntel Server System R1304WTTGS\nIntel Server System R2208WT2YS\nIntel Server System R2208WTTYC1\nIntel Server System R2208WTTYS\nIntel Server System R2224WTTYS\nIntel Server System R2308WTTYS\nIntel Server System R2312WTTYS\nIntel Server Board S2600WT2\nIntel Server Board S2600WTT

Technical details

Status	Launched
RAID keying	SIOM Connector
Market segment	SRV
RAID connector orientation	Side
PCI Express host interface	PCIe x8 Gen3
Born on date	Q3'14
Launch date	2014-08-05T00:00:00
Product name	Intel Integrated RAID Module RMS3CC040
Data transfer rate	12288 Mbit/s
Product type	16
Packaging content	(1) Intel Integrated RAID Module RMS3CC040 and standoffs.

Other features

Supported devices	SAS/SATA
Internal ports	4
Other features	Support for Premium Feature Options
Compatible operating systems	Windows, Linux, Solaris, VMware

Design

Connector orientation	Side
Form factor	Storage Connector Module

Additionally

Operating temperature range (T-T)	0 - 65 °C

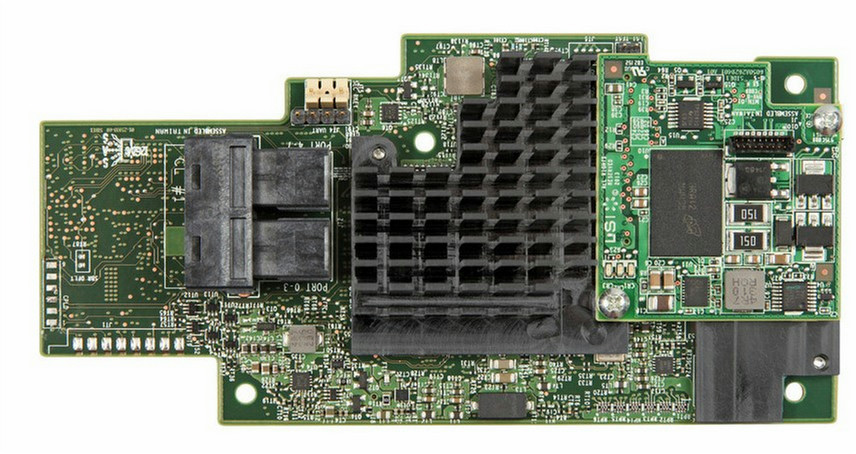

Integrated RAID Module RMS3CC040 A 12-Gb four internal port SAS 3.0 mezzanine card with dual core RAID-On-Chip (ROC), RAID levels 0,1,5,6, PCIe Generation 3, and an optional Maintenance Free Backup Unit.
