System requirements
| Linux operating systems supported |
Y |
| Windows operating systems supported |
Y |
Ports & interfaces
| PCI Card form factor |
Half-height (low-profile) |
| Supported storage drive interfaces |
SAS-2, Serial ATA III |
| Host interface |
PCI Express x8 |
| PCI Express slots version |
3.0 |
Performance
| Sustained data transfer rate (native) |
6144 MB/s |
| SSD support |
Y |
| RAID ARK ID |
60278 |
| Data transfer rate |
6 Gbit/s |
| RAID levels |
1, 10, 1E, JBOD |
| Chipset |
LSI2308 |
Technical details
| Status |
End of Life |
| RAID keying |
PCIe x8 Connector |
| Market segment |
SRV |
| RAID connector orientation |
Top |
| PCI Express host interface |
PCIe x8 Gen3 |
| Born on date |
Q4'12 |
| Launch date |
2012-10-05T00:00:00 |
| Product name |
Intel RAID Controller RS25FB044 |
| Data transfer rate |
6144 Mbit/s |
| Product type |
16 |
| Packaging content |
(1) Raid Controller, Quick Start User Guide, (1) standard & (1) Low Profile bracket. No SAS Cables are included. |
Other features
| Supported devices |
SAS/SATA |
| Internal ports |
4 |
| External ports |
4 |
| Other features |
None |
| Compatible operating systems |
Windows, Linux, Nexenta, VMWare |
Design
| Connector orientation |
Top |
| LED indicators |
Activity |
| Form factor |
Low Profile MD2 Card |

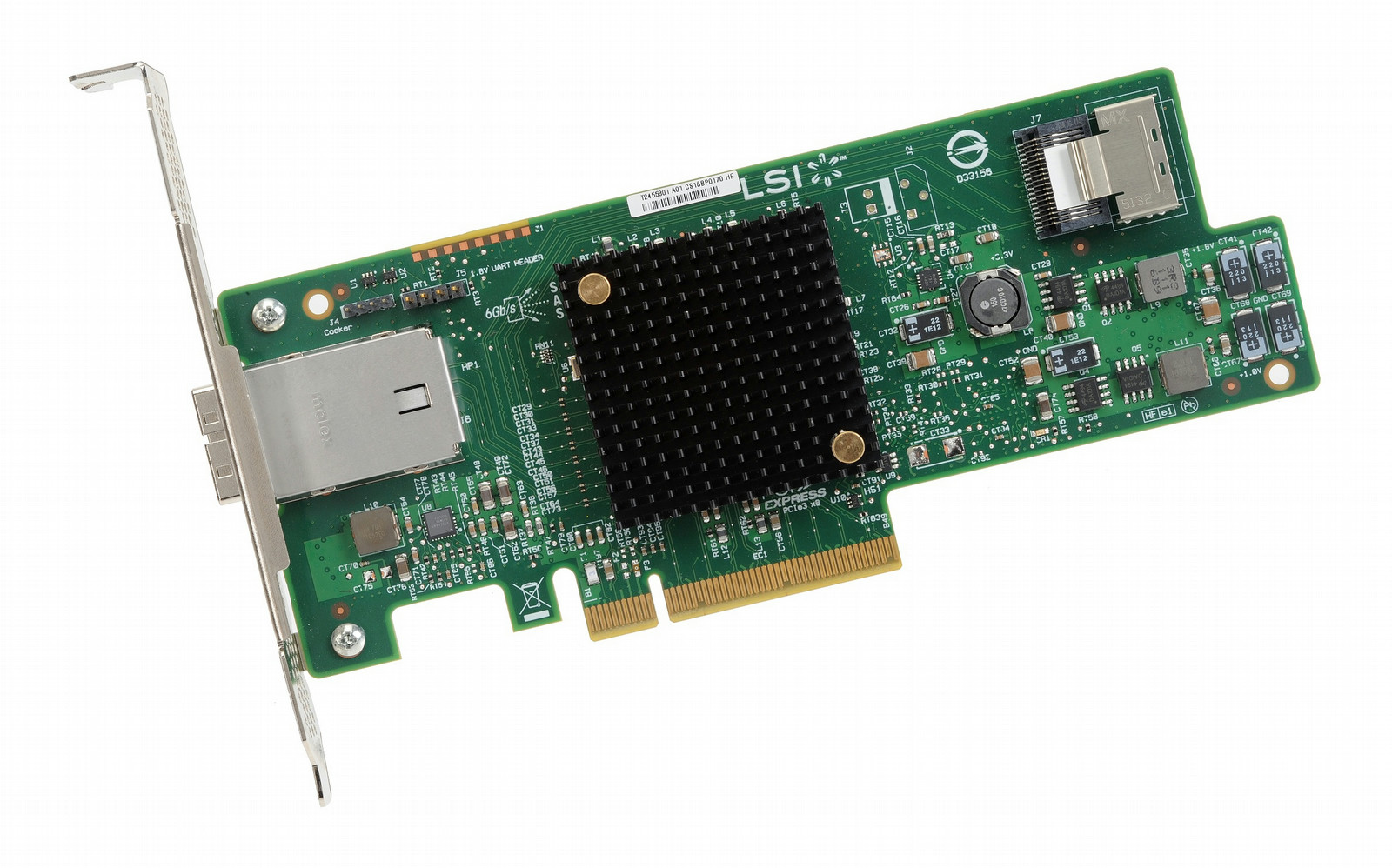

RAID Controller RS25FB044, Single
Four internal and external port 6-Gb/s PCI Express* SAS/SATA RAID Controller for entry-level servers
Intel® RAID Controller RS25FB044.
- LSI SAS2308* IOC controller providing SAS 2.0 compliance including 6Gb/s data transfer.
- One internal 8087 SAS/SATA connector for up to four internal ports.
- One external 8080 SAS/SATA connector for up to four external ports.
- x8 PCI Express* Generation 3 interface for fast communication with the server board.
- Heartbeat LED—blinks green indicating card activity ready.
Low-cost SAS-2 with mirroring, striping, and JBOD for highly scalable solutions.
The Intel® RAID Controller RS25FB044 uses the embedded LSI 2308* ASIC CPU to perform RAID 0, 1, and 1E/10 operations, and an ultra-thin driver provides low RAID overhead, for high-host CPU offload with excellent read/write performance.
All Intel® RAID products are validated across multiple platforms with Intel® Server Boards, Intel® Server Chassis, and Intel® Server Systems. Customized training, as well as service and support, make Intel the one source for customers seeking data protection, increased productivity, and simplified IT.
Target applications.
The Intel® RAID Controller RS25FB044 is ideal for servers that include both direct attached storage (DAS) and external JBOD (just a bunch of disks) storage.
