Design
Motherboard form factor |
Micro ATX |
Component for |
Server |
Product family |
Single-socket server board |
Product series |
Intel S1200RP |
Product codename |
Rainbow Pass |
Memory
Supported memory clock speeds |
1333, 1600 MHz |
Maximum UDIMM memory |
32 GB |
ECC |
Y |
Memory channels |
Dual |
Number of DIMM slots |
4 |
Maximum internal memory |
32 GB |
Supported memory types |
DDR3-SDRAM |
Back panel I/O ports
Serial ports quantity |
1 |
VGA (D-Sub) ports quantity |
1 |
Internal I/O
Number of SATA connectors |
6 |
Processor
Thermal power |
95 W |
Lithography |
22 nm |
Number of processors supported |
1 |
Number of QPI links |
1 |
Intel Xeon series |
E3-1200 |
Processor manufacturer |
Intel |
CPU configuration (max) |
1 |
Processor number of cores supported |
4, 2 |
Processor special features
Intel Trusted Execution Technology |
Y |
Intelligent Platform Management Interface (IPMI) support |
Y |
Internal I/O Expansion Module x8 Gen 3 |
1 |
Intel Rapid Storage Technology enterprise |
Y |
Intel Matrix Storage Technology |
N |
Intel® Clear Video HD Technology (Intel® CVT HD) |
N |
Intel Intelligent Power Node Manager |
Y |
Intel Fast Memory Access |
Y |
Intel Flex Memory Access |
N |
Intel Build Assurance Technology |
N |
Connector for Intel I/O Expansion Module |
1 |
Intel Advanced Management Technology |
Y |
Intel I/O Acceleration Technology |
Y |
Intel Server Management Software |
Y |
Intel Remote Management Module Support |
Y |
Intel Server Customization Technology |
N |
Intel Quiet Thermal Technology |
N |
Intel Efficient Power Technology |
N |
Intel Dual Display Capable Technology |
Y |
Intel Quiet System Technology (QST) |
N |
Intel Quick Resume Technology |
N |
Intel® Anti-Theft Technology (Intel® AT) |
N |
Intel® Virtualization Technology (Intel® VT) |
VT-d |
Technical details
Connector for Intel I/O Expansion Module x8 Gen 3 |
1 |
Status |
End of Life |
Physical Address Extension (PAE) |
40 bit |
Market segment |
SRV |
Born on date |
Q2'13 |
Firewire support |
N |
Launch date |
2013-06-02T00:00:00 |
Product name |
Intel Server Board S1200V3RPM |
Supported RAID configuration |
Software RAID RST (0,1,10,5) and ESRT2 (0,1,10) |
USB ports quantity |
4 |
Intel Rapid Storage Technology |
N |
Thermal Design Power (TDP) |
95 W |
Maximum number of PCI Express lanes |
16 |
Memory bandwidth supported by processor (max) |
25.6 GB/s |
Intel Clear Video Technology |
N |
Total number of SATA connectors |
6 |
Intel Virtualization Technology for Directed I/O (VT-d) |
Y |
Halogen free |
N |
Maximum memory |
32 GB |
Maximum internal memory supported by processor |
32 GB |
Form factor |
uATX |
ECC supported by processor |
Y |
Performance
Motherboard ARK ID |
71387 |
Integrated systems available |
Y |
InfiniBand |
N |
Integrated BMC with IPMI |
Y |
Low halogen options available |
N |
Trusted Platform Module (TPM) version |
1.2 |
Memory bandwidth (max) |
25.6 GB/s |
Embedded USB (eUSB) SSD option |
Y |
Rack-Friendly board |
Y |
Embedded options available |
Y |
Trusted Platform Module (TPM) |
Y |
Expansion slots
PCI Express slots version |
3.0 |
PCI Express x8 (Gen 3.x) slots |
1 |
Packaging content
Quick installation guide |
Y |
Graphics
On-board graphics adapter |
Y |
Graphics output |
VGA |
Discrete graphics support |
Y |
Networking
Ethernet interface type |
Fast Ethernet, Gigabit Ethernet |
Wi-Fi |
N |
Storage controllers
Hard drive interface |
Serial ATA |
Additionally
Ethernet LAN (RJ-45) ports quantity |
2 |
Chipset |
Intel C226 |
Intel HD Audio Technology |
N |
Количество слотов PCI Express |
16 |
System bus data transfer rate |
5 GT/s |
Ethernet LAN connection |
Y |
Intel AES New Instructions |
Y |

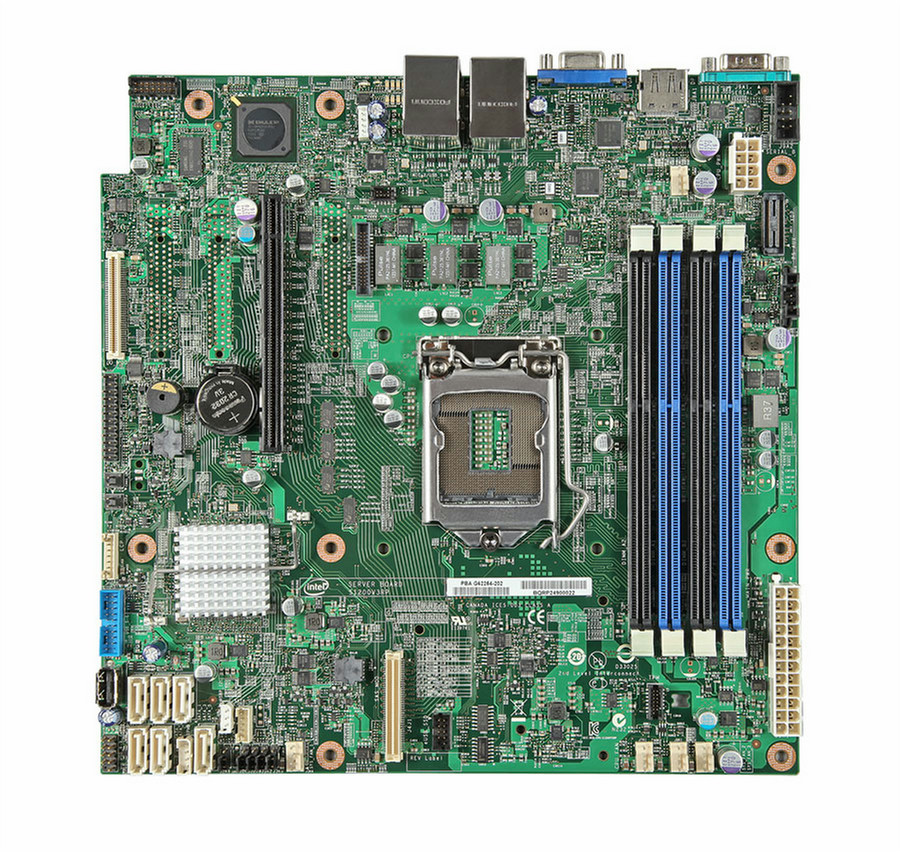

Server Board S1200V3RPM
An entry-level one socket board with Intel® C226 chipset, supporting one Intel® Xeon® Processor E3-1200 family, 4 UDIMMs up to 1600MH, dual integrated Intel® Ethernet Controller, I/O expansion & enhanced processor graphics support. Optional Intel® RMM4.
Integrated graphics allow for incredible visual quality, faster graphic performance and flexible display options without the need for a separate graphics card.
AES New Instructions
Advanced Encryption Standard New Instructions (AES-NI) are a set of instructions that enable fast and secure data encryption and decryption. AES-NI are valuable for a wide range of cryptographic applications, for example: applications that perform bulk encryption/decryption, anthentication, random number generation, and authenticated encryption.
