Memory
| Supported memory clock speeds |
1333, 1600 MHz |
| Supported UDIMM clock speeds |
1600 MHz |
| ECC |
Y |
| Supported RDIMM clock speeds |
1600 MHz |
| Number of DIMM slots |
16 |
| Maximum internal memory |
512 GB |
| Supported memory types |
DDR3-SDRAM |
Back panel I/O ports
| Serial ports quantity |
2 |
| VGA (D-Sub) ports quantity |
1 |
Processor
| Number of processors supported |
2 |
| Number of QPI links |
2 |
| Supported QPI |
7.2, 6.4 GT/s |
| Processor manufacturer |
Intel |
| CPU configuration (max) |
2 |
| Intel Xeon series |
E5-2600 |
| Processor number of cores supported |
4, 8, 6 |
Performance
| InfiniBand |
N |
| Low halogen options available |
Y |
| Trusted Platform Module (TPM) version |
2.0 |
| Memory bandwidth (max) |
819 GB/s |
| Physical Address Extension (PAE) |
Y |
| Embedded USB (eUSB) SSD option |
Y |
| Rack-Friendly board |
Y |
| Embedded options available |
Y |
| Trusted Platform Module (TPM) |
Y |
| Supplemental SKU |
N |
| Motherboard ARK ID |
56333 |
| Integrated systems available |
N |
Processor special features
| Intel Intelligent Power Node Manager |
Y |
| Intel Fast Memory Access |
Y |
| Intel Flex Memory Access |
Y |
| Intel Trusted Execution Technology |
Y |
| Intel Rapid Storage Technology enterprise |
Y |
| Intel Advanced Management Technology |
Y |
| Intel I/O Acceleration Technology |
Y |
| Intel Server Management Software |
Y |
| Intel Remote Management Module Support |
Y |
| Intel Server Customization Technology |
Y |
| Intel Quiet Thermal Technology |
Y |
| Intel Efficient Power Technology |
Y |
| Intel Dual Display Capable Technology |
N |
| Intel Remote Wake technology |
N |
| Intel Remote PC Assist Technology (RPAT) |
N |
| Intel Quiet System Technology (QST) |
N |
| Intel Quick Resume Technology |
N |
| Intel AC'97 technology |
N |
| Intel Client Initiated Remote Access (CIRA) technology |
N |
| Intel® Virtualization Technology (Intel® VT) |
Y |
| Intel vPro Technology |
N |
| Intel Matrix Storage Technology |
Y |
| Intel® Clear Video HD Technology (Intel® CVT HD) |
Y |
| Intel Build Assurance Technology |
Y |
| Intelligent Platform Management Interface (IPMI) support |
Y |
| Intel Active Management Technology |
N |
| Intel® Anti-Theft Technology (Intel® AT) |
N |
Technical details
| Intel Rapid Storage Technology |
N |
| Thermal Design Power (TDP) |
135 W |
| Memory bandwidth supported by processor (max) |
119.5 GB/s |
| Intel Clear Video Technology |
N |
| Total number of SATA connectors |
14 |
| Form factor |
SSI EEB 12" x 13" |
| ECC supported by processor |
Y |
| USB version |
2.0 |
| USB ports quantity |
5 |
| Maximum number of PCI Express lanes |
48 |
| Status |
Launched |
| Physical Address Extension (PAE) |
46 bit |
| Intel Virtualization Technology for Directed I/O (VT-d) |
Y |
| Halogen free |
N |
| Maximum internal memory supported by processor |
512 GB |
Graphics
| On-board graphics adapter |
Y |
| Discrete graphics support |
Y |
Expansion slots
| PCI Express x8 (Gen 3.x) slots |
5 |
| PCI Express x16 slots |
1 |
| PCI Express x8 slots |
5 |
| PCI Express x16 (Gen 3.x) slots |
1 |
| PCI Express slots version |
3.0 |
Networking
| Ethernet interface type |
Gigabit Ethernet |
Design
| Product family |
Dual-socket server board |
| Product series |
Intel S2600CP |
| Product codename |
Canoe Pass |
| Component for |
Server |
| Motherboard form factor |
SSI EEB |
Storage controllers
| Hard drive interface |
Serial ATA II, Serial ATA III |
Additionally
| Ethernet LAN connection |
Y |
| Intel AES New Instructions |
Y |
| Ethernet LAN (RJ-45) ports quantity |
4 |
| Intel HD Audio Technology |
N |

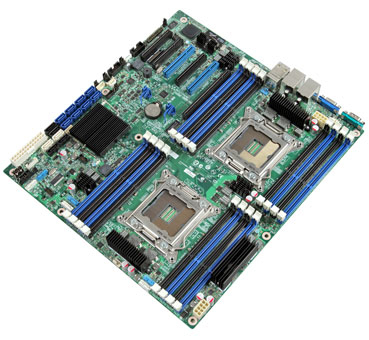

SSI EEB, Socket R, 2 x Xeon E5-2600 family, Six PCIe, 16 x LR/U/R-DIMMs, max. 512GB, Quad Gigabit Ethernet, Integrated Graphics, VGA, 14 x SATA, RAID, 2 x Serial Ports
- Supports two Intel® Xeon® processor E5-2600 product family.
- Six PCIe Gen3 slots (6 x8 electrical).
- 16 memory sockets support LR/U/R-DIMMs.
- Intel® Quad Gigabit Ethernet with Intel® Virtualization Technology – Dual Gigabit Ethernet option available.
- Onboard flash boot support includes eUSB SSD and SATA DOM.
- Committed 5-year product life cycle.
Available expansion options include:
- Intel® RAID C600 upgrade key options for eight SAS/SATA ports, two SATA 6 Gb ports and four SATA 3 Gb ports.
Mainstream Dual-Socket Server Board Featuring the Powerful Performance of the New Intel® Xeon® Processor E5-2600 Family
The Intel® Server Board S2600CP family delivers the powerful performance and flexible feature advantages of the new Intel Xeon processor E5-2600 family, 16 DIMMs, dual or quad 1GbE LOM, and six PCIe Gen3 I/O slots. The Intel Server Board S2600CP family is also available as an integrated 4U pedestal (rackable) system with a variety of storage and power supply options.
The S2600CP family makes use of several exclusive new Intel® Server Board technology innovations. The Intel® Advanced Management Technology1 helps simplify and optimize system management for higher capacity and more secure platform management. Intel® Quiet Thermal Technology provides thermal and acoustic management to reduce unnecessary noise and provide cooling flexibility while maximizing system efficiency. This board also makes use of power delivery enhancements from the Intel® Efficient Power Technology to help improve power efficiency and reliability.
Target Applications
The Intel® Server Board S2600CP family provides excellent standard features for a variety of front and back office usage models with plenty of headroom for growth. For small and medium businesses needing the added performance and flexibility that only comes from latest Intel® Xeon® processor E5-2600 family, this new mainstream board is the ideal choice.
