Memory
| Supported memory clock speeds |
1333, 1600 MHz |
| Supported UDIMM clock speeds |
1600 MHz |
| ECC |
Y |
| Memory channels |
Octa |
| Supported RDIMM clock speeds |
1600 MHz |
| Maximum UDIMM memory |
512 GB |
| Maximum RDIMM memory |
512 GB |
| Number of DIMM slots |
16 |
| Maximum internal memory |
512 GB |
| Supported memory types |
DDR3-SDRAM |
Back panel I/O ports
| Serial ports quantity |
2 |
| VGA (D-Sub) ports quantity |
1 |
Processor
| Thermal power |
135 W |
| Number of processors supported |
2 |
| Processor number of cores supported |
4, 8, 2, 6 |
| Number of QPI links |
2 |
| Intel Xeon series |
E5-2600 |
| Processor manufacturer |
Intel |
| CPU configuration (max) |
2 |
Performance
| InfiniBand |
N |
| Memory bandwidth (max) |
819 GB/s |
| Physical Address Extension (PAE) |
Y |
| Embedded USB (eUSB) SSD option |
Y |
| Embedded options available |
Y |
| Trusted Platform Module (TPM) |
Y |
| Integrated systems available |
Y |
| Integrated BMC with IPMI |
Y |
| Low halogen options available |
N |
| Trusted Platform Module (TPM) version |
2.0 |
| Supplemental SKU |
N |
| Motherboard ARK ID |
56334 |
| Rack-Friendly board |
Y |
Processor special features
| Intel Trusted Execution Technology |
Y |
| Intel Build Assurance Technology |
Y |
| Intel I/O Acceleration Technology |
Y |
| Intel Server Management Software |
Y |
| Intel Remote Management Module Support |
Y |
| Intel Server Customization Technology |
Y |
| Intel Quiet Thermal Technology |
Y |
| Intel Efficient Power Technology |
Y |
| Intel AC'97 technology |
N |
| Intel Client Initiated Remote Access (CIRA) technology |
N |
| Intel Active Management Technology |
N |
| Intel® Anti-Theft Technology (Intel® AT) |
N |
| Intel Intelligent Power Node Manager |
Y |
| Intel Fast Memory Access |
Y |
| Intel Flex Memory Access |
Y |
| Intel Rapid Storage Technology enterprise |
Y |
| Intel Advanced Management Technology |
Y |
| Intel Dual Display Capable Technology |
N |
| Intel Remote Wake technology |
N |
| Intel Remote PC Assist Technology (RPAT) |
N |
| Intel Quiet System Technology (QST) |
N |
| Intel Quick Resume Technology |
N |
| Intel vPro Technology |
N |
| Intel Matrix Storage Technology |
Y |
| Intel® Clear Video HD Technology (Intel® CVT HD) |
N |
Technical details
| Thermal Design Power (TDP) |
135 W |
| Memory bandwidth supported by processor (max) |
119.5 GB/s |
| Intel Virtualization Technology for Directed I/O (VT-d) |
Y |
| Market segment |
SRV |
| Born on date |
Q1'12 |
| Firewire support |
Y |
| Launch date |
2012-03-06T09:00:00 |
| Product name |
Intel Server Board S2600CP4 |
| Supported RAID configuration |
Up to SW Raid 5 (LSI + RSTE) |
| Halogen free |
N |
| Maximum memory |
512 GB |
| Maximum internal memory supported by processor |
512 GB |
| Intel Rapid Storage Technology |
N |
| Maximum number of PCI Express lanes |
48 |
| Status |
Launched |
| Physical Address Extension (PAE) |
46 bit |
| Intel Clear Video Technology |
N |
| Total number of SATA connectors |
14 |
| Form factor |
SSI EEB 12" x 13" |
| ECC supported by processor |
Y |
| USB version |
2.0 |
| USB ports quantity |
5 |
Expansion slots
| PCI Express x8 (Gen 3.x) slots |
5 |
| PCI Express x16 slots |
1 |
| PCI Express x8 slots |
5 |
| PCI Express x16 (Gen 3.x) slots |
1 |
| PCI Express slots version |
3.0 |
Graphics
| Graphics output |
VGA |
| On-board graphics adapter |
Y |
Networking
| Ethernet interface type |
Fast Ethernet, Gigabit Ethernet |
| Wi-Fi |
N |
Design
| Component for |
Server |
| Product family |
Dual-socket server board |
| Product series |
Intel S2600CP |
| Product codename |
Canoe Pass |
| Motherboard form factor |
SSI EEB |
Packaging content
| Quick installation guide |
Y |
Storage controllers
| Hard drive interface |
Serial ATA |
Additionally
| Intel HD Audio Technology |
N |
| Ethernet LAN connection |
Y |
| Intel AES New Instructions |
Y |
| Ethernet LAN (RJ-45) ports quantity |
4 |

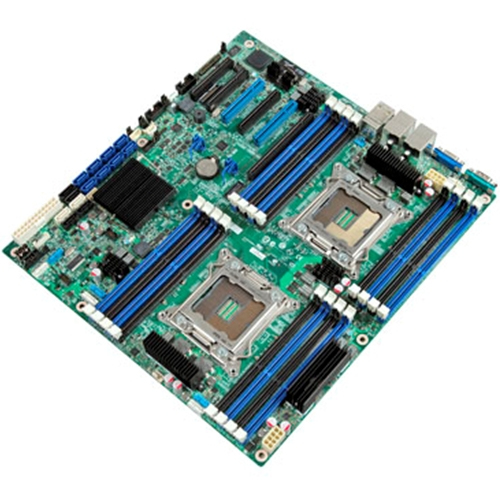

Server Board S2600CP4
The Intel® Server Board S2600CP family delivers the powerful performance and flexible feature advantages of the new Intel Xeon processor E5-2600 family, 16 DIMMs, dual or quad 1GbE LOM, and six PCIe Gen3 I/O slots. The Intel Server Board S2600CP family is also available as an integrated 4U pedestal (rackable) system with a variety of storage and power supply options.
The S2600CP family makes use of several exclusive new Intel® Server Board technology innovations. The Intel® Advanced Management Technology1 helps simplify and optimize system management for higher capacity and more secure platform management. Intel® Quiet Thermal Technology provides thermal and acoustic management to reduce unnecessary noise and provide cooling flexibility while maximizing system efficiency. This board also makes use of power delivery enhancements from the Intel® Efficient Power Technology to help improve power efficiency and reliability.
The Intel® Server Board S2600CP family provides excellent standard features for a variety of front and back office usage models with plenty of headroom for growth. For small and medium businesses needing the added performance and flexibility that only comes from latest Intel® Xeon® processor E5-2600 family, this new mainstream board is the ideal choice.
