Back panel I/O ports
| Serial ports quantity |
2 |
| VGA (D-Sub) ports quantity |
1 |
Processor special features
| Intel Intelligent Power Node Manager |
Y |
| Intel Build Assurance Technology |
N |
| Intel Advanced Management Technology |
N |
| Intel Server Management Software |
Y |
| Intel Remote Management Module Support |
AXXRMM3 |
| Intel Server Customization Technology |
N |
| Intel Quiet Thermal Technology |
N |
| Intel Efficient Power Technology |
N |
Processor
| Number of QPI links |
3 |
| CPU configuration (max) |
2 |
Graphics
| On-board graphics adapter |
Y |
Technical details
| Thermal Design Power (TDP) |
130 W |
| Maximum number of PCI Express lanes |
24 |
| Status |
End of Life |
| Memory bandwidth supported by processor (max) |
64 GB/s |
| Total number of SATA connectors |
6 |
| Halogen free |
N |
| Maximum internal memory supported by processor |
144 GB |
| Form factor |
SSI EEB (12" X 13") |
| ECC supported by processor |
Y |
| USB ports quantity |
8 |
Expansion slots
| PCI Express x16 slots |
1 |
| PCI Express x8 slots |
3 |
| PCI Express x8 (Gen 1.x) slots |
1 |
| PCI Express x16 (Gen 2.x) slots |
1 |
| PCI Express x8 (Gen 2.x) slots |
2 |
Performance
| Motherboard ARK ID |
40394 |
| Embedded options available |
Y |
Design
| Product family |
Legacy server/workstation board |
| Product series |
Intel S5500HCV |
| Product codename |
Hanlan Creek |
| Motherboard form factor |
SSI EEB |
Internal I/O
| Chassis intrusion connector |
Y |
| USB 2.0 connectors |
2 |
Additionally
| Chipset |
Intel 5500 |
| Ethernet LAN (RJ-45) ports quantity |
2 |

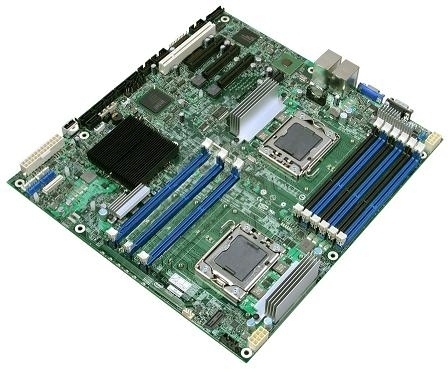

Server Board S5500HCV, 9 DDR3 DIMMs, 800/1066/1333MHz, 2 PCIE2.0 x8 (x8), 1 PCIE2.0 x4 (x16), 1 PCIE 1.0 x4 (x8), 1 PCI, SSI EEB
An affordable, pedestal-optimized, high-performance server board for small- and medium-sized business applications.
The Intel Server Board S5500HCV is designed for affordable performance, targeting vertical-specific applications. With nine DIMMs of DDR3 memory and high-end features, such as integrated management, onboard SW RAID, and high performance dual Gigabit Ethernet, the Intel Server Board S5500HCV performs well in small to medium business environments.
Features and benefits
- Up to 2 Intel Xeon processor 5500 series
Increase server performance with no increase in power consumption
- Fast, scalable DDR3 memory
9 DIMMs of registered or unbuffered DDR3 ensure ample capacity and energy-efficient performance for any application
- High-performance I/O architecture
5 expansion slots, including 2 PCI Express* 2.0 x8 slots and 1 PCI
Express 2.0 x4 slot, provide high-speed I/O flexibility and performance
- Flexible storage configurations
Integrated 6 SATA ports plus optional 4 ports SAS and SAS RAID Intel I/O Expansion Modules provide versatile storage configurations
- Supports server power capping via Intel Power Node ManagerEnables policy-based power capping capabilities to enable increased rack densities and improved data center utilization
