Memory
Supported memory clock speeds |
800, 1066, 1333 MHz |
ECC |
Y |
Supported memory types |
DDR3-SDRAM |
Number of DIMM slots |
12 |
Maximum internal memory |
192 GB |
Processor special features
Intel Intelligent Power Node Manager |
Y |
Intel Build Assurance Technology |
N |
Intel Advanced Management Technology |
N |
Intel Remote Management Module Support |
AXXRMM3 |
Intel Server Customization Technology |
N |
Intel Quiet Thermal Technology |
N |
Intel Efficient Power Technology |
N |
Graphics
On-board graphics adapter |
Y |
Expansion slots
PCI Express x8 (Gen 1.x) slots |
1 |
PCI Express x16 (Gen 2.x) slots |
1 |
PCI Express x8 (Gen 2.x) slots |
3 |
Networking
LAN controller |
Intel 82575EB |
Processor
Processor manufacturer |
Intel |
Processor number of cores supported |
2 |
Design
Component for |
Server |
Motherboard form factor |
SSI EEB |
Storage controllers
Hard drive interface |
Serial ATA |
Additionally
Chipset |
Intel 5520 |
Ethernet LAN connection |
Y |
Ethernet LAN (RJ-45) ports quantity |
2 |

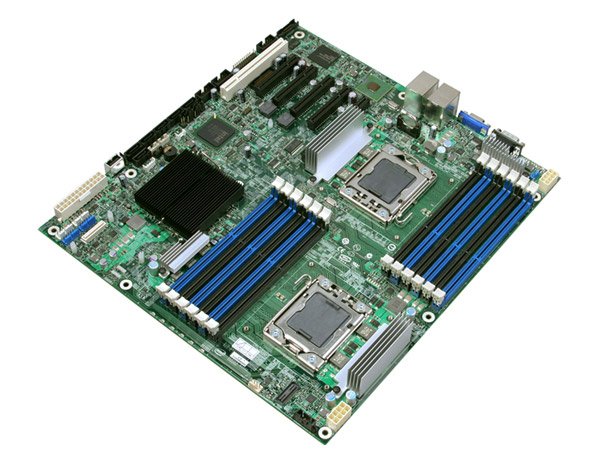

Designed with maximum performance and expandability, the Intel® Server Board S5520HC targets applications such as database, email, storage, and virtualization. Scalable management with integrated and optional features includes Intel® Server Deployment Toolkit, Intel® Active System Console, and power management with Intel® Intelligent Power Node Manager.
