Performance
| Thermal power |
8 W |
| Intel Data Direct I/O Technology |
Y |
| Fiber Channel over Ethernet |
Y |
| iWARP/RDMA |
N |
| Intelligent Offloads |
Y |
| Speed & slot width |
5.0 GT/s, x8 Lane |
| Intel Flexible Port Partitioning |
Y |
| Intel Virtual Machine Device Queues (VMDq) |
Y |
| PCI-SIG* SR-IOV Capable |
Y |
| On-chip QoS and Traffic Management |
Y |
| Ethernet adapter ARK ID |
39774 |
Ports & interfaces
| Fiber ports quantity |
2 |
| Host interface |
PCI-E |
| Internal |
Y |
Technical details
| Halogen free |
N |
| Status |
Launched |
| Thermal Design Power (TDP) |
10.7 W |
Other features
| Message signal interrupt |
Y |
| Interface type |
PCIe v2.0 (5.0GT/s) |
| Intel Virtualization Technology for Connectivity (VT-c) |
Y |
Design
| Product codename |
Spring Fountain |
| Product series |
Intel Converged X520 |
| Product family |
Intel 10 Gigabit server adapter |
| PCI Card form factor |
Full-height (low-profile) |
Additionally
| Transfer rate (Mbps) |
10000 Mbit/s |
| Wireless technologies |
Wired |

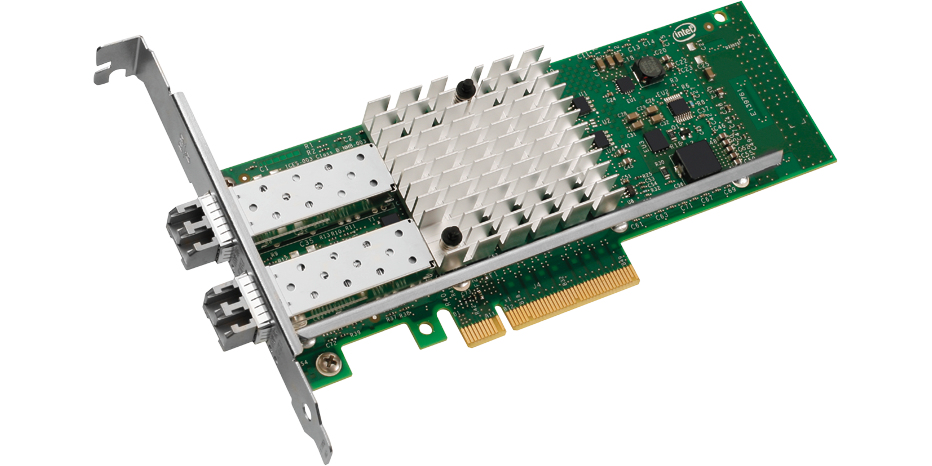

Ethernet Server Adapter X520-SR2
Intel’s new family of Intel® Ethernet X520 Server Adapters are the most flexible and scalable Ethernet adapters for today’s demanding data center environments.
The Intel® Ethernet X520 Server Adapter family addresses the demanding needs of the next-generation data center by providing unmatched features for virtualization, flexibility for LAN and SAN networking, and proven, reliable performance.
<b>Features and benefits</b>
-
<i>Intel® 82599 10 Gigabit Ethernet Controller</i>
Industry-leading, energy-efficient design for next-generation 10 Gigabit performance and multi-core processors;
-
<i>Low-profile</i>
Enables higher bandwidth and throughput from standard and low-profile PCIe slots and servers;
-
<i>Load balancing on multiple CPUs</i>
Increases performance on multi-processor systems by efficiently balancing network loads across
CPU cores when used with Receive-Side Scaling (RSS) from Microsoft or Scalable I/O on Linux*;
-
<i>iSCSI remote boot support</i>
Provides centralized storage area network (SAN) management at a lower cost than other iSCSI solutions;
-
<i>Support for most network operating systems (NOS)</i>
Enables widespread deployment;
-
<i>RoHS-compliant2</i>
Complies with the European Union directive 2002/95/EC to reduce the use of hazardous materials;
-
<i>Intel® PROSet utility for Microsoft Windows* Device Manager</i>
Provides point-and-click management of individual adapters, advanced adapter features, connection
teaming, and virtual local area network (VLAN) configuration;
-
<i>Time Sync (IEEE 1588, 802.1as)</i>
Lets networked Ethernet equipment synchronize internal clocks according to a network master clock;
endpoint can then acquire an accurate estimate of the master time by compensating for link latency;
