Performance
| Intel® Virtualization Technology (Intel® VT) |
VT-c |
| Intel Data Direct I/O Technology |
Y |
| Intel Ethernet Power Management |
N |
| Fiber Channel over Ethernet |
Y |
| iWARP/RDMA |
N |
| Intelligent Offloads |
Y |
| Speed & slot width |
5.0 GT/s, x8 Lane |
| Intel Flexible Port Partitioning |
Y |
| Intel Virtual Machine Device Queues (VMDq) |
Y |
| PCI-SIG* SR-IOV Capable |
Y |
| On-chip QoS and Traffic Management |
Y |
| Ethernet adapter ARK ID |
58953 |
Technical details
| Halogen free |
N |
| Status |
Launched |
Other features
| Interface type |
PCIe 2.1 (5.0 GT/s) |
| Intel Virtualization Technology for Connectivity (VT-c) |
Y |
Design
| Product series |
Intel Converged X540 |
| Product family |
Intel 10 Gigabit server adapter |
Bandwidth
| Supported data transfer rates |
10/100/1000/10000 Mbps |
Ports & interfaces
| Host interface |
PCI-E |
| Internal |
Y |
Additionally
| Wireless technologies |
Wired |
| Ethernet LAN (RJ-45) ports quantity |
1 |
| Ethernet LAN connection |
Y |
| Transfer rate (Mbps) |
10000 Mbit/s |

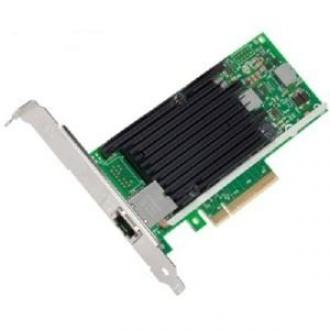

Ethernet Converged Network Adapter X540-T1
<b>Intel® Data Direct I/O Technology</b>
Intel® Data Direct I/O Technology is a platform technology that improves I/O data processing efficiency for data delivery and data consumption from I/O devices. With Intel DDIO, Intel® Server Adapters and controllers talk directly to the processor cache without a detour via system memory, reducing latency, increasing system I/O bandwidth, and reducing power consumption.
<b>Flexible Port Partitioning</b>
Flexible Port Partitioning (FPP) technology utilizes industry standard PCI SIG SR-IOV to efficiently divide your physical Ethernet device into multiple virtual devices, providing Quality of Service by ensuring each process is assigned to a Virtual Function and is provided a fair share of the bandwidth.
<b>Virtual Machine Device Queues (VMDq)</b>
Virtual Machine Device Queues (VMDq) is a technology designed to offload some of the switching done in the VMM (Virtual Machine Monitor) to networking hardware specifically designed for this function. VMDq drastically reduces overhead associated with I/O switching in the VMM which greatly improves throughput and overall system performance.
