Other features
| Supported data transfer rates |
11/54/150Mbps |
| Downstream data rate |
24 Mbit/s |
| Upstream data rate |
1 Mbit/s |
| xDSL connection |
Y |
| Rack mounting |
N |
| Networking features |
Fast Ethernet/Wi-Fi |
Ethernet LAN features
| Cabling technology |
10/100Base-T(X) |
| Ethernet LAN interface type |
Fast Ethernet |
| Ethernet LAN data rates |
10, 100 Mbit/s |
Management features
| Universal Plug and Play (UPnP) |
Y |
| Quality of Service (QoS) support |
Y |
| Reset button |
Y |
Protocols
| DMZ support |
Y |
| DHCP server |
Y |
| Supported network protocols |
SNMP v1/v2 |
Wireless LAN features
| Top Wi-Fi standard |
IEEE 802.11n |
| WLAN data transfer rate (max) |
150 Mbit/s |
| Wi-Fi standards |
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
Antenna
| Antenna type |
external |
| Antennas quantity |
1 |
Ports & interfaces
| RJ-11 ports quantity |
1 |
| DC-in jack |
Y |
Additionally
| Transfer rate (Mbps) |
150 Mbit/s |
| Ethernet LAN connection |
Y |
| Ethernet LAN (RJ-45) ports quantity |
4 |
IEEE802.11n, 150Mbps, ADSL 2+, 10/100Mbps, 4x LAN RJ-45, 1x RJ-11, QoS, Black

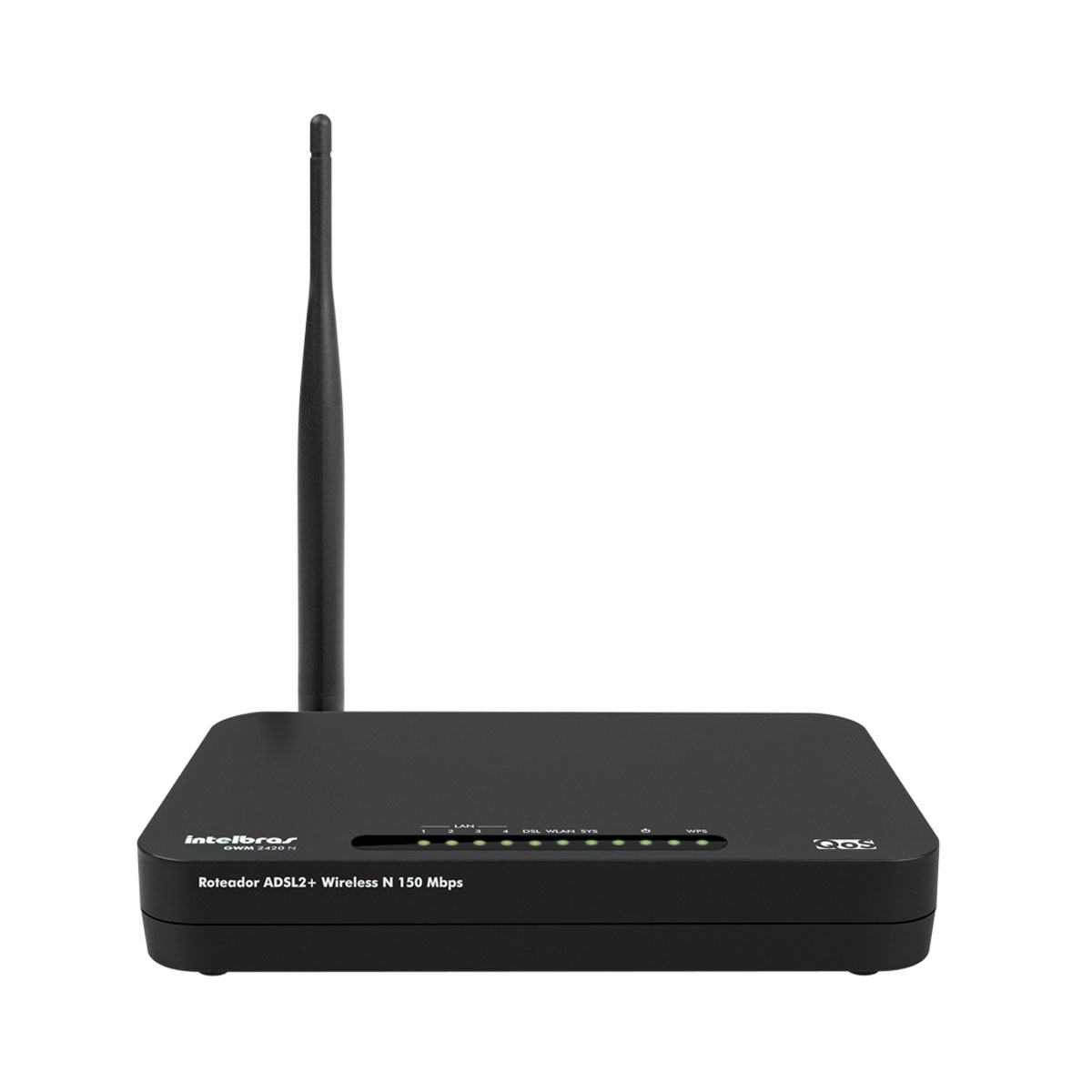

An intelligent solution for your broadband. The Intelbras GWM 2420 N router is a three-in-one device that integrates the function of a high-speed ADSL 2+ modem, a wireless N router and switch, providing the user with the convenience of owning just a single piece of equipment.
Features
- Compatible with ADSL 2+, ADSL 2 and ADSL technologies
- Downstream speeds of up to 24 Mbps and upstream speeds of up to 1 Mbps
- Creation of a local area network and Internet sharing
- Router and Bridge functions with static or dynamic IP address
- Supports PPPoE, PPPoA, MER and IPoA authetication modes
- Wireless network speeds of up to 150 Mbps (IEEE802.11b/g/n)
- Four 10/100 Mbps LAN ports
- 64/128 bit WEP, WPA/WPA2 with TKIP/AES and WPS security
- QoS via MAC, IP, DSCP and 802.1p for data traffic prioritization
- Advanced security via integrated firewall with support for IP, MAC and URL filters and Anti-DoS protection
- DHCP server for the distribution of IP addressing
- Supports virtual servers (NAT) and DMZ
- Supports VPN pass-through
- Supports UPnP, SNMP (v1 and v2c), NTP, RIP (v1 and v2), TR-069, DDNS, IGMP Proxy and Snooping
- Remote management via the Internet (HTTP) and Telnet with control via IP (ACL)
