Ports & interfaces
| Host interface |
PCI |
| Internal |
Y |
Networking
| Ethernet LAN data rates |
10, 100, 1000 Mbit/s |
| Maximum operating distance |
100 m |
| Copper ethernet cabling technology |
10BASE-T, 100BASE-TX, 1000BASE-T |
| Flow control support |
Y |
| Chipset |
Realtek |
Other features
| Ports quantity |
1 |
| Networking features |
Gigabit Ethernet |
| Compliance industry standards |
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1p, IEEE 802.1q |
| Link/Act LED |
Y |
| Network ready |
Y |
Protocols
| Supported network protocols |
CSMA/CD, TCP/IP |
Bandwidth
| Full duplex |
Y |
| Supported data transfer rates |
10/100/1000Mbps |
Additionally
| Wireless technologies |
Wired |
| Ethernet LAN (RJ-45) ports quantity |
1 |
| Ethernet LAN connection |
Y |
| Jumbo Frames support |
Y |
| Transfer rate (Mbps) |
2000 Mbit/s |

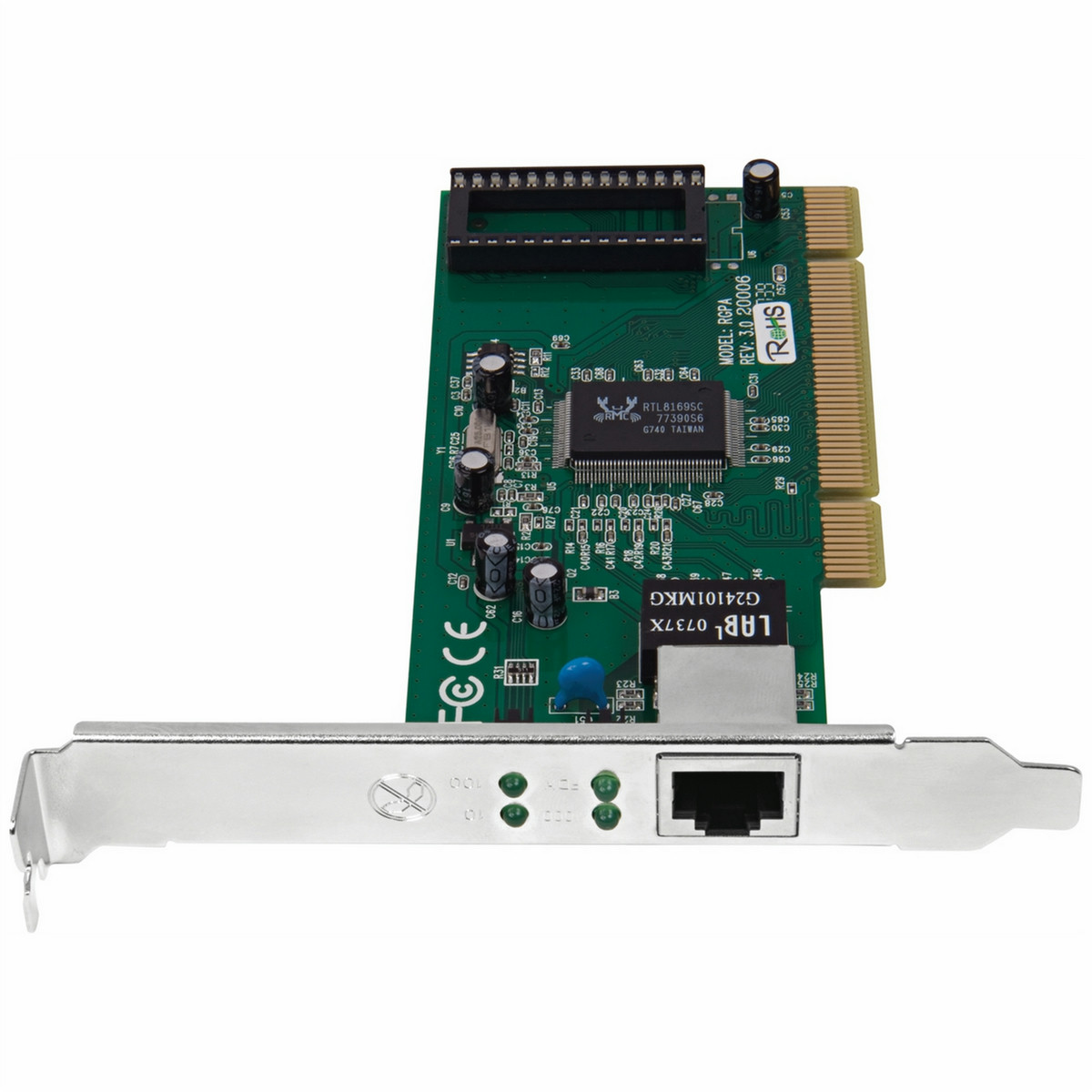

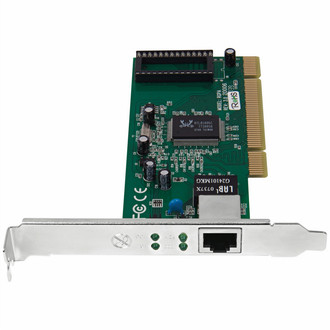

10/100/1000 Mbps PCI Gigabit Ethernet Card
The PEG 132 B network card is based on Gigabit Ethernet, guaranteeing a data transfer rate up to 10 times faster than that of equipment with Fast Ethernet technology, while maintaining full compatibility.
This proportionate increase in speed is vital in meeting the convergent demands of traffic where data, voice, images and videos circulate as IP data packets and demand the maximum from the network infrastructure available. It consists of a 32-bit device that enables the connection of PCs to data communication networks, and it also comes with 10 Kb Jumbo Frame, making it possible to increase the amount of data transmitted during the same time interval over a Gigabit Ethernet network.
- Connects PCs to data communication networks
- Transfer rates of up to 2000 Mbps
- Compatible with Windows® and Linux®
- 7.5 Kb Jumbo Frame
- Auto MDI/MDI-X for automatic detection of cable type (normal/crossover)
- 10/100/1000 Mbps port with speed auto-negotiation (N-Way)
- LED indicating link/port activity
- 32-bit PCI bus
- Automatic configuration of IRQ and I/O address
- Installation manual in Portuguese and Spanish
