Data transmission
| MAC address table |
1000 entries |
| Supported data transfer rates |
10/100Mbps |
| Switching capacity |
1.6 Gbit/s |
| Maximum data transfer rate |
0.2 Gbit/s |
Other features
| Cabling technology |
10/100BaseT(X) |
| Power LED |
Y |
| Networking features |
Fast Ethernet |
| Data transfer rate |
100 Mbit/s |
| Ethernet LAN data rates |
10, 100 Mbit/s |
Networking
| VLAN support |
Y |
| Auto MDI/MDI-X |
Y |
| Flow control support |
Y |
| 10G support |
N |
| Full duplex |
Y |
Power
| Number of power supply units |
1 |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity |
8 |
| Fast Ethernet (copper) ports quantity |
8 |
| Copper ethernet cabling technology |
100BASE-TX, 10BASE-T |
| DC-in jack |
Y |
Protocols
| Management protocols |
CSMA/CD |
Management features
| Quality of Service (QoS) support |
Y |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) |
Y |
Additionally
| Jumbo Frames support |
Y |
| Ethernet LAN connection |
Y |
| Wireless technologies |
Wired |
8x 10/100Mbps RJ-45, 10/100BASE-T(X), QoS, PoE, 171g, Black

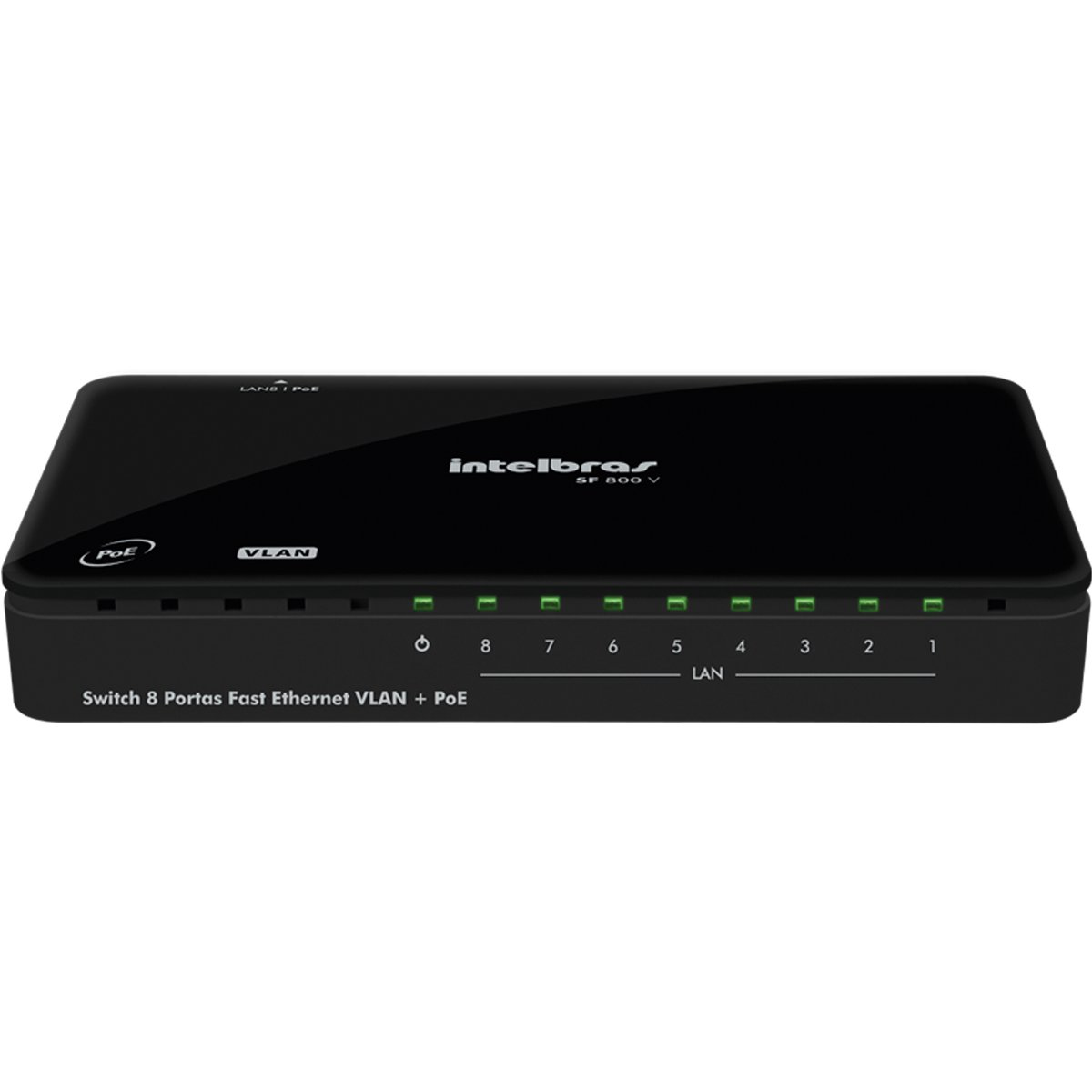

The SF 800 V switch integrates the Intelbras´line of desktop switches, making it feasible to build data communication networks and allowing the integration of PCs, printers, and VoIP devices such as ATA and IP telephones. The SF 800 V comes with 8 10/100 ports with PoE on port 8.
- Fixed VLAN
- QoS to prioritize data, voice and video traffic
- Simple and fast installation (Plug & Play)
- Transfer rates of up to 200 Mbps
- Interconnection of computers, ATAs, IP telephones and other network devices
- Installation manual in Portuguese
- Auto MDI/MDI-X for automatic detection of cable standard (normal/crossover)
- Automatic external bivolt power supply
- Desktop cabinet for use on desks or walls
- Front panel with LEDs
