Data transmission
| MAC address table |
10000 entries |
| Supported data transfer rates |
10/100/1000Mbps |
| Switching capacity |
48 Gbit/s |
| Maximum data transfer rate |
2 Gbit/s |
Other features
| Ethernet LAN data rates |
1000, 10, 100 Mbit/s |
| Cabling technology |
10/100/1000BaseT(X) |
| Power LED |
Y |
| Networking features |
Gigabit Ethernet |
| Power supply type |
AC |
Networking
| Auto MDI/MDI-X |
Y |
| 10G support |
N |
| Full duplex |
Y |
Power
| Number of power supply units |
1 |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity |
24 |
| Copper ethernet cabling technology |
100BASE-TX, 10BASE-T |
| Gigabit Ethernet (copper) ports quantity |
24 |
Performance
| Packet buffer memory |
2 MB |
Management features
| Quality of Service (QoS) support |
Y |
Protocols
| Supported network protocols |
CSMA/CD |
Design
| Form factor |
1U |
| Rack mounting |
Y |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) |
N |
Additionally
| Jumbo Frames support |
Y |
| Ethernet LAN connection |
Y |
| Wireless technologies |
Wired |
24x 10/100/1000Mbps, 10/100BASE-T(X), QoS, 1U, Grey

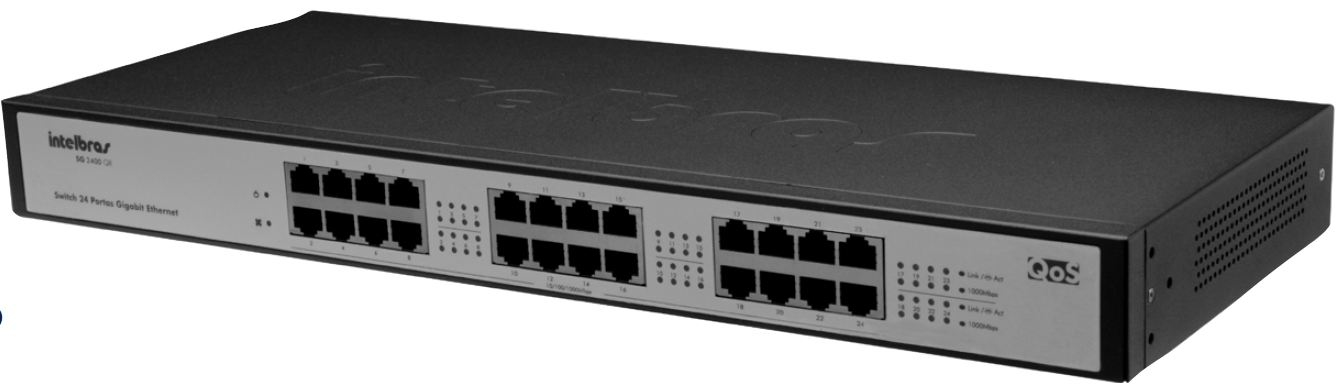

The SG 2400 QR switch supports QoS for prioritizing data, voice and video traffic. It also comes with a 10-kB Jumbo Frame enabling it to increase the quantity of transmitted data, during the same time interval, on a Gigabit Ethernet network.
It comes with twenty-four 10/100/1000 Mbps Gigabit Ethernet ports, enabling it to reach transfer speeds of up to 2,000 Mbps in Full-duplex mode in addition to automatic speed negotiation. Also, these ports are fully compatible with network devices based on Fast Ethernet technology, ensuring their interoperability.
- 24 10/100/1000 Mbps ports with automatic speed negotiation (N-Way)
- Integration of network devices and Internet access sharing
- QoS to prioritize data, voice and video traffic
- Simple and fast installation (Plug & Play)
- Ideal for applications that require high volume data traffic
- Transfer rates of up to 2,000 Mbps
- 10-kB Jumbo Frame
- Installation manual in Portuguese and Spanish
- Auto MDI/MDI-X for automatic detection of cable type (normal/crossover)
- Internal automatic bivolt power supply
- 19” rack cabinet with 1U height
- Front panel with LED indicator lights
