Data transmission
| MAC address table |
8000 entries |
| Supported data transfer rates |
10/100/1000Mbps |
| Switching capacity |
48 Gbit/s |
| Maximum data transfer rate |
2000 Gbit/s |
| Number of VLANs |
24 |
Other features
| Power supply type |
AC |
| Cabling technology |
10/100/1000BaseT(X) |
| Power LED |
Y |
| Networking features |
Gigabit Ethernet |
| Ethernet LAN data rates |
10, 100, 1000 Mbit/s |
Networking
| Port mirroring |
Y |
| Broadcast storm control |
Y |
| VLAN support |
Y |
| Auto MDI/MDI-X |
Y |
| 10G support |
N |
| Full duplex |
Y |
Power
| Number of power supply units |
1 |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity |
24 |
| Console port |
RS-232 |
| SFP module slots quantity |
4 |
| SFP/SFP+ slots quantity |
4 |
| Gigabit Ethernet (copper) ports quantity |
24 |
| Copper ethernet cabling technology |
100BASE-TX, 1000BASE-T, 10BASE-T |
Performance
| Packet buffer memory |
0.5 MB |
Protocols
| Management protocols |
SNMP v1/v2, HTTP, CLI |
| Supported network protocols |
CSMA/CD |
Management features
| Quality of Service (QoS) support |
Y |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) |
N |
Additionally
| Jumbo Frames support |
Y |
| Ethernet LAN connection |
Y |
| Wireless technologies |
Wired |
24x 10/100/1000Mbps, 10/100/1000BASE-T(X), 4x SFP, RS232, QoS, 1U, Grey

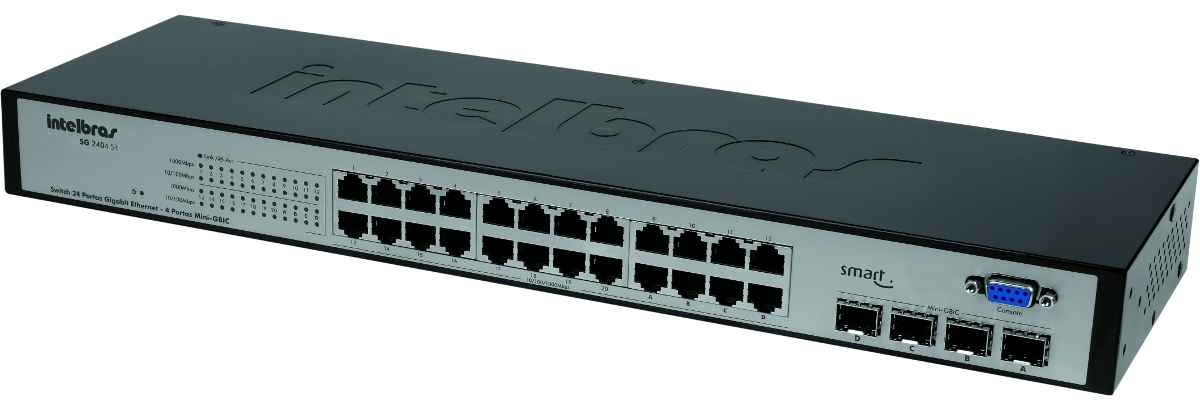

The SG 2404 SR managed switch provides twenty-four 10/100/1000 Mbps Gigabit Ethernet ports and four Mini-GBIC slots providing fast data processing connections over your network, increasing transfer speeds for files that require a lot of bandwidth.
Comes with a web management interface in Portuguese, facilitating configuration and operation. With regard to security, it has resources that prevent unauthorized access to the company’s network.
- 24 10/100/1000 Mbps ports with automatic speed negotiation (N-Way), four SFP (Mini-GBIC) ports and one RS232 console port
- Easy to manage
- Management via web interface in Portuguese
- Ideal for applications that require high volumes of data traffic
- Inter-connection with high-speed, longer-distance fiber optic rings
- Console port for configuration
- Automatic detection of Intelbras Mini-GBIC modules
- 9-kB Jumbo Frame
- Dual image boot
- Firmware update via web interface
- 48-Gbps Backplane
- 8-k MAC table
- Port Trunking
- Port Mirroring
- Storm Control
- Supports up to 24 VLANs
