Ports & interfaces
| Host interface |
USB |
| Internal |
N |
Wireless LAN features
| Top Wi-Fi standard |
IEEE 802.11n |
| Wi-Fi standards |
IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
| Wi-Fi |
Y |
Antenna
| Antenna connector type |
R-SMA |
| Impedance |
50 Ω |
| Gain |
4 dBi |
Networking
| Frequency band |
2.4 - 2.4835 GHz |
Other features
| Wireless technology |
Wi-Fi |
| Compliance industry standards |
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x |
| Link/Act LED |
Y |
Protocols
| Supported network protocols |
CSMA/CA |
Bandwidth
| Supported data transfer rates |
150/135/121.5/108/81/54/40.5/ 27/13.5Mbps |
Additionally
| Wireless technologies |
Wireless |
| Wireless connections |
Y |
| Transfer rate (Mbps) |
150 Mbit/s |
IEEE802.11b/g/n, 2.4GHz, 150Mbps, USB 2.0, R-SMA, Black

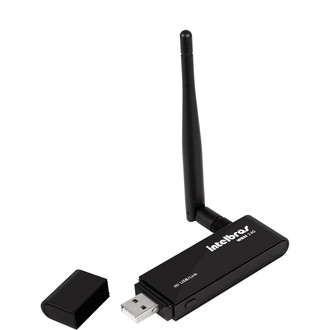

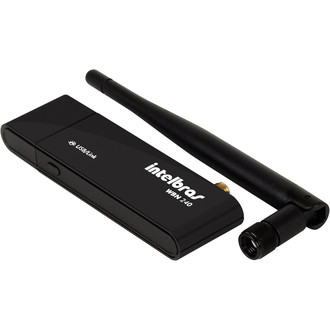

The WBN 240 is a wireless USB adapter capable of providing wireless Internet to a computer or laptop through a USB port. It operates in the IEEE802.11b/g/n standard at speeds of up to 150 Mbps, at a frequency of 2.4 GHz.
This adapter has an external removable high-gain antenna. The WBN 240 is part of the WISP line (Wireless Internet Service Provider) and is destined for professional users.
- Broadband Internet access
- Designed for wireless Internet providers’ environments
- Compatible with IEEE802.11b/g/n standards with speeds of up to 150 Mbps
- Removable external antenna with a gain of 4 dBi, allowing use of other wireless antennas
- Transmission power of 18 dBm (mW) in IEEE802.11b/g/n
- Button and WPS assistant for simplified configuration of wireless security, protecting personal information and preventing intrusions
- Infrastructure and ad hoc operational modes
- Wireless security through 64/128/152 bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK (TKIP/AES) and 802.1x
- QoS (WMM) for prioritizing voice and video applications
- Supports wireless roaming
- Supports PSP X-Link connection for online games
- LED USB and link indicator
- USB 2.0 type A port and female reverse SMA
- 1 meter USB extension cable
- Low energy consumption
- Low frequency of 2.4 GHz
- Installation and simplified configuration in Portuguese
- User manual in Portuguese
