Design
Hot keys |
Y |
Push button |
Y |
Rack mounting |
N |
Ports & interfaces
Audio connections |
Y |
DC-in jack |
Y |
Number of microphone inputs |
1 |
Headphone outputs |
1 |
Mouse port type |
USB |
Keyboard port type |
USB |
Number of computers controlled |
2 |
Video port type |
VGA |
Packaging content
Quick installation guide |
Y |
Other features
Operating temperature (T-T) |
14 - 122 °F |
Power
USB powered |
Y |
External power adapter |
Y |

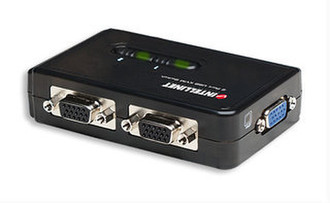

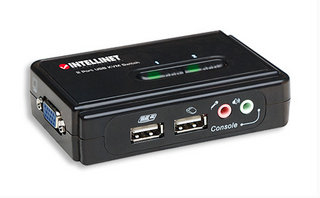

2-Port Compact KVM Switch
The INTELLINET NETWORK SOLUTIONS KVM Switch Model 157032 is a 2-port compact KVM Switch with Audio and Mic switching functionality. Its USB support on the console side allows you to use a USB keyboard and mouse. It comes with 2 sets of detachable USB KVM combo cables & 2 sets of Audio/Mic cables for SOHO and office desktop multimedia applications. And it allows you to access, control, boot, and reboot four USB-enabled multimedia computers with only one USB keyboard, mouse, monitor and optional speaker set and microphone, using the Switching Software Client installed on your PCs.
Win-based Switching Software Support on PC
The KVM Switch also provides a Win-based Switching Software that shows you the current active PC and allows you to select PC as well as configure keyboard hotkeys. It appears as an icon on the system tray of your Window desktop, and will change its number icon upon switching to show the active PC port. Using this small client software, it will give KVM users utmost convenience and control.
Audio and Microphone Switching offers uninterrupted multimedia experience
The audio and microphone switching function of KVM Switch allows you to leverage the multimedia systems on each of your two computers. You can monitor the audio/mic input/output of each computer without plugging on and off the audio/mic cables. User can also choose to use either independent/simultaneous switching of both PC channel and audio/microphone channel for their maximum convenience. And it takes only one set of speaker and microphone instead of one set for each computer. Furthermore, it offers you user-programmable simultaneous/independent PC and audio/mic switching functionality for flexible multimedia and KVM Switching operation.
USB interface compatibility for multiplatform support
The USB interface technology offers multi-platform support for PC, Macintosh G3/G4 and iMAC. [The KVM Switching Software client supports only Windows platforms].
Zero Cabling Hassles for KVM users
This KVM Switch saves you cabling troubles with its 2 x 1.5 M detachable KVM and 2 x audio/mic cables. In fact, you have zero cabling troubles since you don't have to worry about finding suitable cables to fit—They comes within the box package!
Features:
- Manage/control 2 USB computers from one keyboard, monitor and mouse;
- Audio and Microphone switching for uninterrupted multimedia experience across multi-platforms;
- Multi-platform support for PCs and MAC systems (Switching software client only available for Windows);
- Hot-plugging PCs for maintenance without powering down the KVM Switch or PCs;
- Channel selection via push buttons, user definable keyboard hotkeys (Windows only) and Windows based switching software client;
- LED indicators for easy status monitoring;
- Supports resolutions up to 2048 x 1536 pixels;
- USB bus powered - no external power adapter required;
- Includes two connection cables for computer connection;
- Includes two connection cables for speaker and microphone.
