Ethernet LAN features
| Cabling technology |
10/100Base-T(X) |
| Auto MDI/MDI-X |
Y |
| Ethernet LAN data rates |
10, 100 Mbit/s |
Wireless LAN features
| Wi-Fi band |
Single-band (2.4 GHz) |
| High power |
Y |
| Top Wi-Fi standard |
IEEE 802.11n |
| WLAN data transfer rate (max) |
300 Mbit/s |
| Wi-Fi standards |
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Modulation |
16-QAM, 64-QAM, BPSK, CCK, DBPSK, DQPSK, DSSS, OFDM, QPSK |
WAN connection
| Ethernet WAN |
N |
| 3G/4G USB modem compatibility |
N |
| DSL WAN |
N |
| SIM card slot |
N |
Other features
| Internal memory |
64 MB |
| Flash memory |
8 MB |
| Frequency range |
2.4 - 2.483 GHz |
Antenna
| Antenna type |
Internal |
| Antenna gain level (max) |
3 dBi |
| Antennas quantity |
2 |
Power
| Power over Ethernet (PoE) |
Y |
| Power source type |
AC |
Performance
| Memory card slot(s) |
N |
| Chipset |
Atheros AR9341 |
Additionally
| Ethernet LAN connection |
Y |
| AC adapter bundled |
Y |
| Ethernet LAN (RJ-45) ports quantity |
1 |
2.4 Ghz, MDI/MDI-X, RJ-45, 9 W
Wireless networking with three times the speed and five times the flexibility.

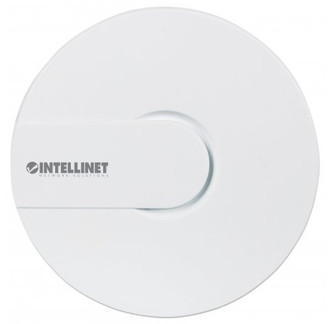

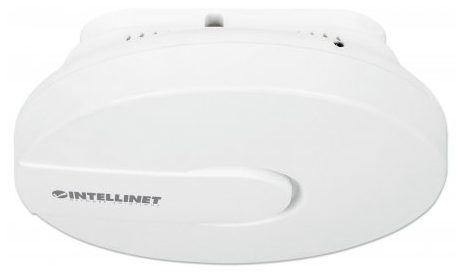

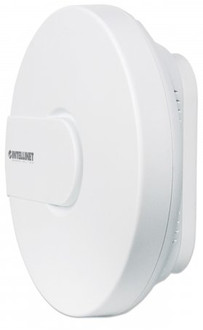

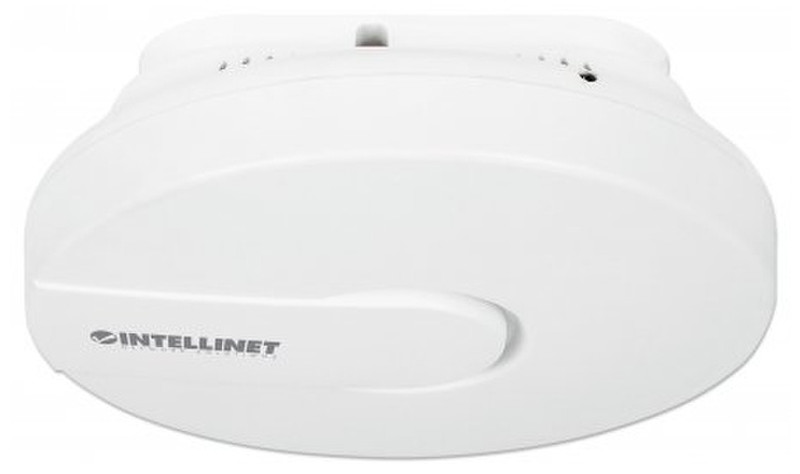

The Intellinet Network Solutions High-Power Ceiling Mount Wireless 300N PoE Access Point, Model 525800, is the latest in wireless networking. Taking advantage of new technology, a wireless network can now see greatly enhanced network speeds.

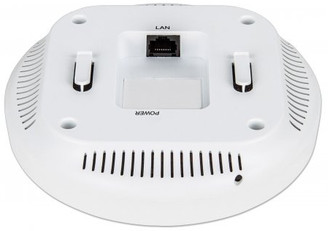

Power over Ethernet Port
The High-Power Ceiling Mount Wireless 300N PoE Access Point comes with a PoE PD port. This port can be used to power the device from a PoE-compliant LAN switch, which is very convenient in situations where AC power is not readily available.
Features:
- Up to 300 Mbps network link speed
- Smoke detector design
- Complies with 2.4 GHz IEEE 802.11n standard and is backward compatible with IEEE 802.11g/b standards
- 2T2R MIMO technology for enhanced throughput and coverage
- Supports WMM function to meet the multimedia data bandwidth requirement
- Supports WEP and WPA/WPA2 (TKIP and AES) data encryption
- IEEE 802.3af-compliant PoE-powered device with one PoE (PD) port
- DHCP server assigns IP addresses for all LAN users
- Easy installation through Web-based user interface
- Three-Year Warranty
