Other features
| Input current |
2.5 A |
| Input voltage |
5 V |
| Outdoor range |
200 m |
| xDSL connection |
N |
Protocols
| Supported network protocols |
PPoE, PPTP, DHCP |
| DHCP server |
Y |
| DHCP client |
N |
| DMZ support |
Y |
Security
| MAC address filtering |
N |
| Authentication method |
NAT, NATP |
| Firewall security |
DoS |
Antenna
| Antenna connector type |
RP-SMA |
| Antenna gain level (max) |
2 dBi |
| Antennas quantity |
1 |
Networking
| Receiver sensitivity |
54 Mbps: – 70 @ 10%\n11 Mbps: – 85 @ 8% |
Ethernet LAN features
| Ethernet LAN interface type |
Fast Ethernet |
| Ethernet LAN data rates |
10, 100 Mbit/s |
Additionally
| Filtering |
IP |
| Ethernet LAN (RJ-45) ports quantity |
4 |
| AC adapter bundled |
Y |
| Indoors max range |
50 m |
| Ethernet LAN connection |
Y |
108Mbps, IEEE 802.11b/g, WEP, WPA/WPA2, 2.4GHz, Fast Ethernet, grey
<b>Up to 10x Faster Than 802.11b, and 2x Faster Than 802.11g Routers!</b>

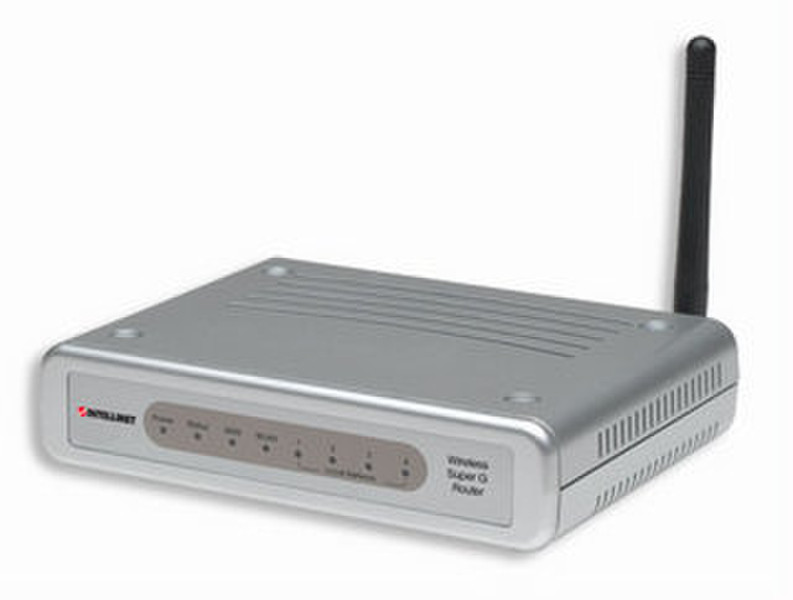

The Wireless Super G Router provides 108 Mbps network data transfer rate and is fully compatible with 802.11b and 802.11g wireless routers. The built in 4-Port Fast Ethernet LAN switch and Firewall make this router the perfect "all in one" Internet access sharing device for your home or office.
<b>Increased Throughput</b>
This router is capable of supporting a network data transfer rate of up to 108 Mbps when used with other Wireless Super G PC Cards, PCI Cards, and USB adapters1. The Wireless Super G Router will automatically sense the speed of the connecting computer, and allow it to transfer data at the optimum speed.
<b>Wireless Network Security</b>
The built in firewall includes many features to ensure that the security of your network is not compromised through the wireless access point. You can restrict users from accessing certain Internet applications, you can block access to Web sites, and you can also block common hacker attacks using the Intrusion Detection feature. The router also provides advanced security encryption and decryption using industry standard techniques such as WEP, IEEE 802.11x, IEEE 802.11x with WEP, WPA with pre-shared key, and WPA with RADIUS, further ensuring that your data is secure as it is sent through the wireless network.
<b>Wired or Wireless</b>

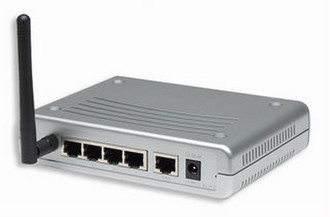

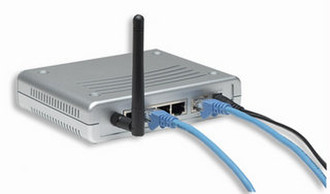

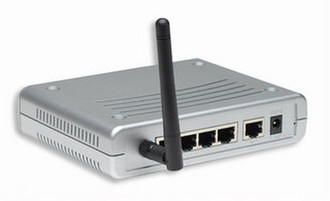

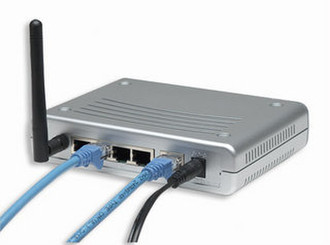

The Wireless Super G Router includes 4 Fast Ethernet LAN ports allowing you to attach computers or network printers to the network using Cat5 network cable. So you can have some users connecting via wireless, and other users connecting via wired, all from the same device.
