Protocols
| DHCP client |
Y |
| DMZ support |
Y |
| Supported network protocols |
PPTP, L2TP, PPoE, DHCP, NTP, UDP, TCP/IP, CSMA/CA, CSMA/CD, ICMP |
| DHCP server |
Y |
Management features
| Reset button |
Y |
| Universal Plug and Play (UPnP) |
Y |
| Web-based management |
N |
Security
| MAC address filtering |
Y |
| Authentication method |
NAT, NTP |
| Firewall security |
DMZ, ARP |
Antenna
| Antenna gain level (max) |
2 dBi |
| Antennas quantity |
1 |
Other features
| Maximum data transfer rate |
0.068 Gbit/s |
| Input current |
0.8 A |
| Frequency range |
2.412 - 2.484 GHz |
| Input voltage |
9 V |
| Networking features |
Fast Ethernet |
| Outdoor range |
300 m |
| xDSL connection |
N |
Wireless LAN features
| Modulation |
QPSK, DQPSK, DBPSK, CCK, BPSK |
Ethernet LAN features
| Ethernet LAN interface type |
Fast Ethernet |
| Ethernet LAN data rates |
10, 100 Mbit/s |
Additionally
| Indoors max range |
100 m |
| Ethernet LAN (RJ-45) ports quantity |
4 |
| AC adapter bundled |
Y |
| Filtering |
IP, URL |
| Ethernet LAN connection |
Y |
54Mbps, IEEE 802.11b/g, WEP, WPA/WPA2, 2.4GHz, Fast Ethernet, black
<b>Create a wireless network easily in your home or office.</b>

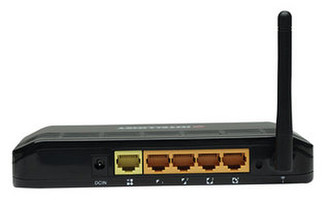

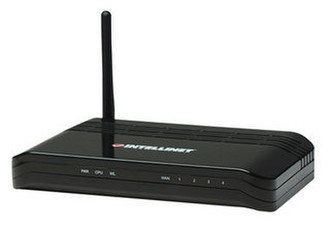

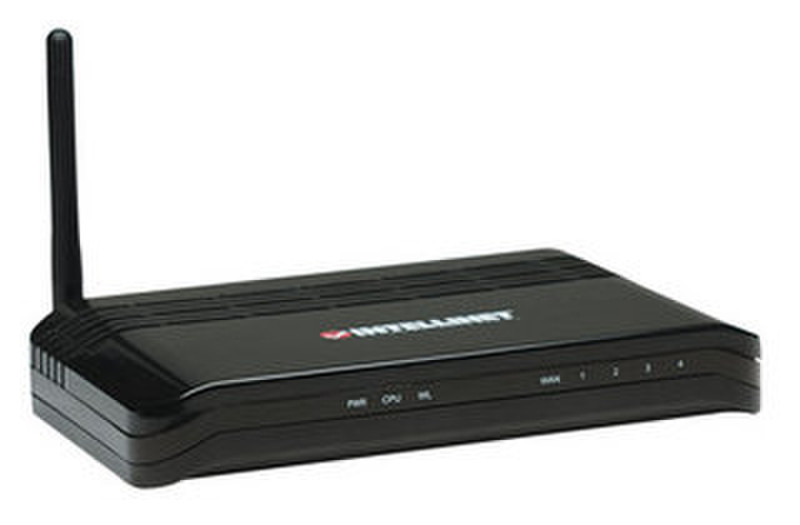

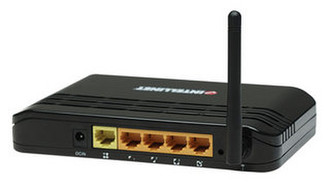

The INTELLINET NETWORK SOLUTIONS Wireless G Broadband Router, Model 503693, lets you experience fast speeds as you surf the Web, download music or photos, and play online games. This wireless router works with 802.11g as well as the older 802.11b products, and also includes a four-port 10/100 LAN switch so you can connect using network cable or go wireless to satisfy all your needs.
<b>Flexible</b>
The Wireless G Broadband Router allows you to conveniently share your network connection with multiple users on your network with or without wires. It delivers 10/100 Mbps (auto-sensing) WAN and LAN connections and is interoperable with 54 Mbps (802.11g) and 11 Mbps (802.11b) devices over a 2.4 GHz band wireless network. The WAN connection wizard makes installation a snap.
<b>Secure</b>
Keeping intruders out of your network can be a challenge, and this feature-rich wireless router is designed to make that challenge easier. It includes a true firewall that secures your network against hackers. With Network Address Translation (NAT) to shield your networked devices from intruders, Denial of Service (DoS) attack prevention to avert potential threats by scanning incoming traffic, and WEP, WPA and WPA2 encryption to conceal your information on the wireless LAN from eavesdroppers, you can rest assured that you have taken the necessary precautions to protect the data on your network.
