Performance
| Tx power (min) |
-17 dBmW |
| Fiber cable diameters supported |
100/140 µm |
| Rx power (max) |
-20 dBmW |
| Fiber mode structure |
Multi-mode |
| Maximum transfer distance |
220 m |
| Tx power (max) |
-12 dBmW |
| Wavelength |
850 nm |
Power
| Input voltage |
5 V |
| Power consumption (typical) |
2.5 W |
| External power adapter |
Y |
| Input current |
1 A |
Networking
| Networking standards |
IEEE 802.3ab, IEEE 802.3z |
| Converter input interface |
1000Base-SX |
Design
| Internal |
N |
| LED indicators |
LAN, Link, Power |
Other features
| Dimensions (WxDxH) |
70 x 107 x 26 mm |
Ports & interfaces
| Fiber ports quantity |
1 |
| DC-in jack |
Y |
| Fiber optic connector |
SC |
Operational conditions
| Storage temperature (T-T) |
-45 - 85 °C |
| Operating relative humidity (H-H) |
10 - 90% |
Additionally
| Colour of product |
Black |
| Transfer rate (Mbps) |
1000 Mbit/s |
| Wireless technologies |
Wired |
| Ethernet LAN (RJ-45) ports quantity |
1 |
| Operating temperature range (T-T) |
0 - 60 °C |
Gigabit Ethernet, 0.5kg, black

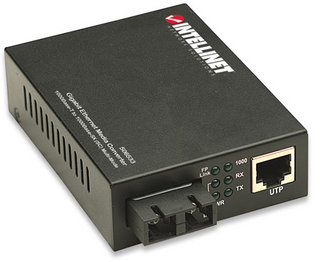

The intellinet network solutions Gigabit Ethernet Media Converter was specifically designed to offer the network designer a device for migration from copper-based Ethernet to Fiber Ethernet. Now migration or expansion of existing networks can be achieved with minimum cost and complexity. The converter is completely transparent to the network so the network performs exactly the way it did before – only now it can support both copper and fiber mediums.
Expands the Size of an Existing Network
Provides fiber connectivity to Ethernet segments, allowing for even further networking expansion between extended workgroups. Also provides building-to-building connectivity without the need for the cost and disruption associated with the installation of additional routers.
Enhances the Distance between Networking Devices
Connecting the converter to fiber segments can further extend distances between networking nodes. This can be achieved by direct connection between the converter and a fiber-based node or networking device.
Cabling Flexibility
Network managers can install fiber cabling anywhere within a network without changing the arrangement of copper-based Ethernet. The compact size of the converter allows it to be easily deployed in any narrow desktop location or to be used in a wall-mount installation. Several converters can be simultaneously installed into a 19" rack-mountable chassis.
