Design
| Housing material |
Metal |
| LED indicators |
Y |
| Internal |
N |
Networking
| Duplex system |
Full |
| Ethernet LAN data rates |
10, 100 Mbit/s |
| Ethernet interface type |
Fast Ethernet |
| Fiber ethernet cabling technology |
100BASE-FX |
| Networking standards |
IEEE 802.3, IEEE 802.3u |
| Copper ethernet cabling technology |
10BASE-T, 100BASE-TX |
| Cable types supported |
Cat5e |
| Converter input interface |
10Base-T, 100Base-TX |
| Converter output interface |
100Base-FX |
Performance
| Tx power (min) |
-15 dBmW |
| Sensitivity |
-32 dBmW |
| Fiber cable diameters supported |
9/125 µm |
| Wavelength-division multiplexing (WDM) |
Y |
| Mean time between failures (MTBF) |
100000 h |
| Fiber mode structure |
Single-mode |
| Maximum transfer distance |
20000 m |
| Tx power (max) |
-3 dBmW |
Operational conditions
| Operating relative humidity (H-H) |
10 - 80% |
| Storage temperature (T-T) |
-20 - 70 °C |
Weight & dimensions
| Depth |
105 mm |
| Width |
69 mm |
| Weight |
180 g |
| Height |
25 mm |
Power
| External power adapter |
Y |
| Power consumption (max) |
2.5 W |
| Output current |
1.2 A |
Ports & interfaces
| Fiber ports quantity |
1 |
| DC-in jack |
Y |
Certificates
| Certification |
FCC Class A, CE |
Additionally
| Transfer rate (Mbps) |
100 Mbit/s |
| Wireless technologies |
Wired |
| AC adapter bundled |
Y |
| Ethernet LAN (RJ-45) ports quantity |
1 |
| Operating temperature range (T-T) |
0 - 50 °C |

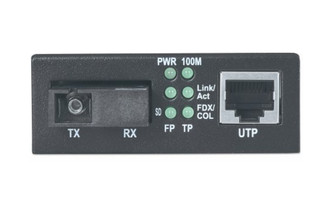

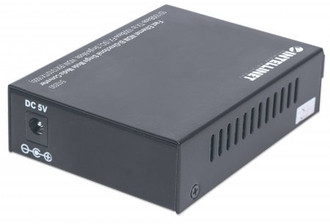

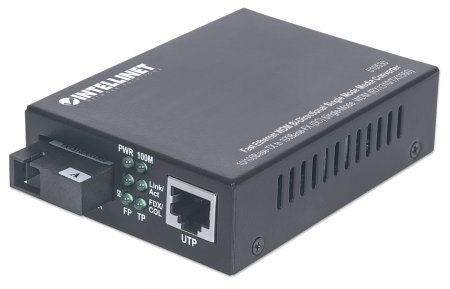

10/100Base-TX to 100Base-FX, SC, Single-Mode, 20 km (12.4 mi.), WDM (RX1310/TX1550)
The Intellinet Fast Ethernet WDM (bi-directional wavelength division multiplexing) Media Converter utilizes a single strand of fiber to transmit network traffic on separate receive and transmit wavelengths (1310/1550 nm). This innovative technology allows you to effectively use the two strands for two independent connections or to double the capacity without digging in a second fiber cable. The converter is completely transparent to the network so the network performs exactly the way it did before — only now it can support both copper and fiber mediums.
Expands the Size of an Existing Network
This converter provides fiber connectivity to Ethernet segments, allowing for even further networking expansion between extended workgroups. It also provides building-to-building connectivity without the cost and disruption associated with the installation of additional routers.
Enhances the Distance between Networking Devices
Connecting the converter to fiber segments can further extend distances between networking nodes. This can be achieved by direct connection between the converter and a fiber-based node or networking device.
Cabling Flexibility
Network managers can install fiber cabling anywhere within a network without changing the arrangement of copper-based Ethernet. The compact size of the converter allows it to be easily deployed in any narrow desktop location or to be used in a wallmount installation. Several converters can be simultaneously installed into a 19" rack-mountable chassis.
