Performance
| Horizontal beam width (2.4 GHz) |
360 ° |
| Vertical beam width (2.4 GHz) |
55 ° |
| Antenna gain (2.4 GHz) |
3 dBi |
| Antenna gain (5 GHz) |
4 dBi |
| Antenna gain level (max) |
4 dBi |
| Frequency band |
2.4/5 GHz |
| Impedance |
50 Ω |
Features
| Voltage Standing Wave Ratio (VSWR) |
≤2.0 |
| Antenna connector type |
RP-SMA |
| Polarization |
Vertical polarization |
| Antenna type |
Omni-directional antenna |
| Power handling |
1 W |

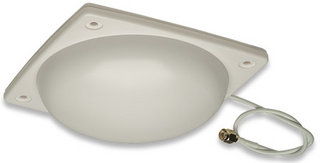

Dual-Band Ceiling Mount Antenna, 2.4/5.0 GHz, Omni-directional, 4 dBi, IP65, beige
The INTELLINET NETWORK SOLUTIONS Dual-Band Ceiling Mount Antenna provides discreet and uniform wireless coverage in a conference room or the office environment. It can be attached to any wireless access point or wireless router, which are all available through your INTELLINET NETWORK SOLUTIONS dealer.* The dual-band design eliminates the need to purchase different antennas for Wireless B, G, N and Wireless A networks.
Discreet, Uniform Wireless Coverage
The Dual-Band Ceiling Mount Antenna provides 360 degrees of beam width, giving you a very uniform wireless coverage in all directions. The antenna's low-profile housing blends nicely into your office environment.
Flexible Installation
The Dual-Band Ceiling Mount Antenna supports both N-type and RP-SMA cable, ensuring you will always be able to make a connection. The antenna can be easily mounted to solid surfaces, walls and drop ceilings with cable routing possibilities.
