Performance
| Firmware upgradeable |
Y |
| Chipset |
Ralink RT3052 |
Protocols
| DHCP server |
Y |
| DHCP client |
Y |
| Supported network protocols |
CSMA/CA, CSMA/CD, TCP/IP, UDP, ICMP, PPPoE, NTP, NAT, DHCP, DNS |
Other features
| Power supply type |
AC/DC |
| Operating temperature (T-T) |
32 - 122 °F |
| Frequency range |
2.400 - 2.4835 GHz |
| Input voltage |
5 V |
| Networking features |
Fast Ethernet |
| Supported protocols |
CSMA/CA, CSMA/CD, TCP/IP, UDP, ICMP, PPPoE, NTP, NAT, DHCP, DNS |
| Compliance industry standards |
IEEE 802.3/802.3u, IEEE 802.11b/g/n |
| Outdoor range |
300 m |
| Rack mounting |
N |
| Input frequency |
50 Hz |
| Flash memory |
4 MB |
| Security features |
MAC, URL, DMZ, anti-DOS |
| Internal memory |
16 MB |
| Logging and monitoring |
Y |
| Ports quantity |
4 |
| LAN features |
Auto MDI/MDI-X |
| Throughput |
93 Mb/s |
| xDSL connection |
N |
Management features
| Web-based management |
Y |
| Quality of Service (QoS) support |
Y |
| Universal Plug and Play (UPnP) |
Y |
Security
| MAC address filtering |
Y |
| System event log |
Y |
| NAT functionality |
Y |
| VPN support |
PPTP, IPSec, L2TP |
| Firewall security |
MAC, URL, DMZ, anti-DOS |
Power
| Power over Ethernet (PoE) |
N |
Antenna
| Antenna gain level (max) |
3 dBi |
| Antennas quantity |
2 |
Wireless LAN features
| WLAN data transfer rate (max) |
300 Mbit/s |
Ethernet LAN features
| Full duplex |
Y |
| Ethernet LAN interface type |
Fast Ethernet |
| Ethernet LAN data rates |
10, 100 Mbit/s |
Networking
| Receiver sensitivity |
11n (300 Mbps) MCS0-15:\n- 20 MHz: -73 dBm;\n- 40MHz: -68 dBm\n11g (54 Mbps) OFDM: -78 dBm\n11b (11 Mbps) CCK: -91 dBm |
Additionally
| AC adapter bundled |
Y |
| Indoors max range |
100 m |
| Ethernet LAN (RJ-45) ports quantity |
4 |
| Ethernet LAN connection |
Y |

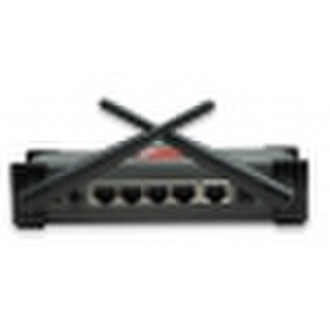

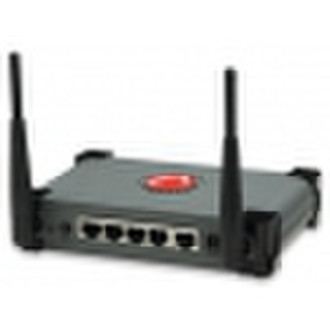

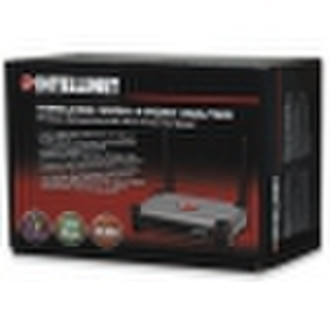

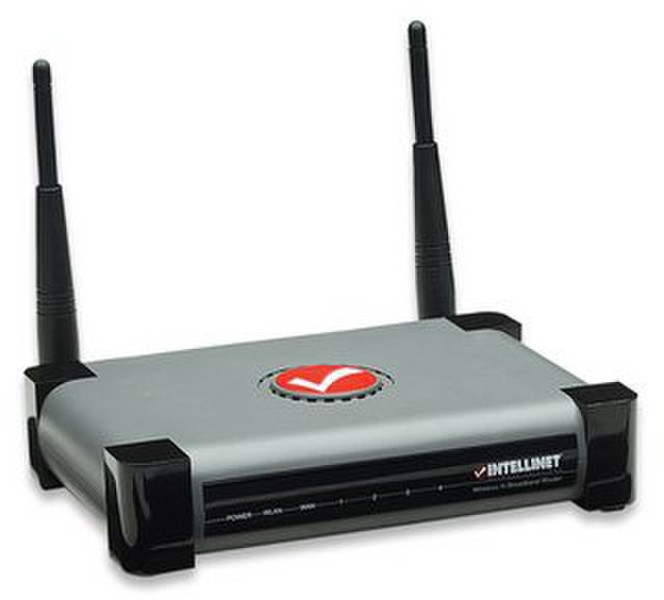

Wireless 300N 4-Port Router 300 Mbps, MIMO, QoS, 4-Port 10/100 Mbps LAN Switch
<b>Wireless 300N 4-Port Router</b>
<b>300 Mbps, MIMO, QoS, 4-Port 10/100 Mbps LAN Switch</b>
- Up to 300 Mbps network link speed
- Complies with 2.4 GHz IEEE 802.11n standard and is backward compatible with IEEE 802.11g/b standards
- 2T2R MIMO technology for enhanced throughput and coverage
- Supports WMM function to meet the multimedia data bandwidth requirement
- Supports Wi-Fi Protected Setup (WPS)
- Supports WEP and WPA/WPA2 (TKIP and AES) data encryption
