Security
| VPN support |
PPTP, L2TP, IPsec |
| Firewall security |
NAT |
| MAC address filtering |
Y |
Management features
| Universal Plug and Play (UPnP) |
Y |
| Web-based management |
Y |
Performance
| Firmware upgradeable |
Y |
| Chipset |
Realtek RTL8186/RTL8225 |
Protocols
| DHCP server |
Y |
| DHCP client |
Y |
| Supported network protocols |
CSMA/CA, CSMA/CD, TCP/IP, UDP, ICMP, PPPoE, NTP, DNS |
| DMZ support |
Y |
Antenna
| Antenna gain level (max) |
2 dBi |
| Antennas quantity |
1 |
Other features
| Bandwidth |
2.412 GHz |
| Networking features |
Fast Ethernet |
| Outdoor range |
300m |
| Input current |
1 A |
| Frequency range |
2.412 - 2.484GHz |
| Input voltage |
12 V |
| Operating temperature (T-T) |
32 - 104 °F |
| xDSL connection |
N |
Wireless LAN features
| Modulation |
QPSK, DSSS, DPSK, BPSK, 64-QAM, 16-QAM |
| Wi-Fi standards |
IEEE 802.11b, IEEE 802.11g |
| Top Wi-Fi standard |
IEEE 802.11g |
Ethernet LAN features
| Ethernet LAN interface type |
Fast Ethernet |
| Ethernet LAN data rates |
10, 100 Mbit/s |
Additionally
| AC adapter bundled |
Y |
| Indoors max range |
100m |
| Ethernet LAN (RJ-45) ports quantity |
4 |
| Ethernet LAN connection |
Y |

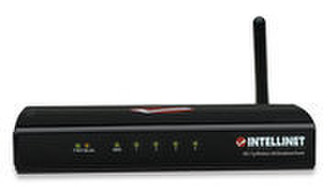

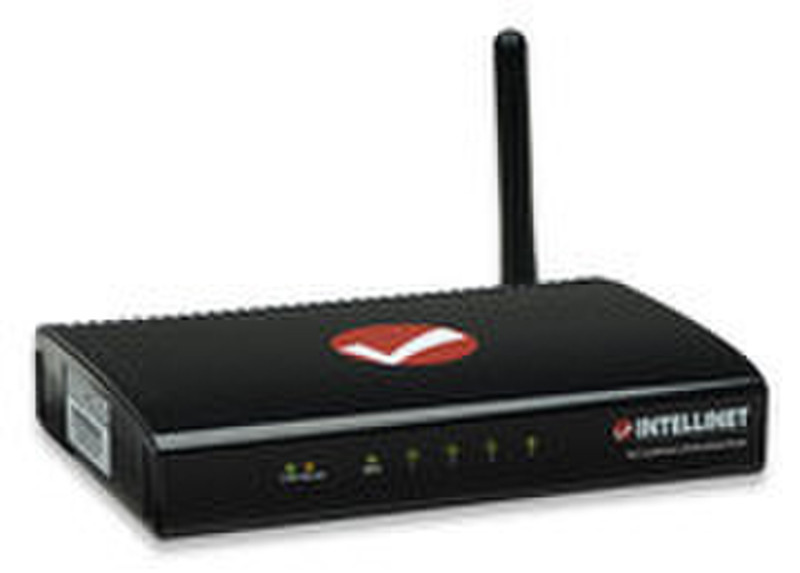

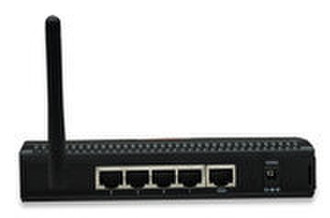

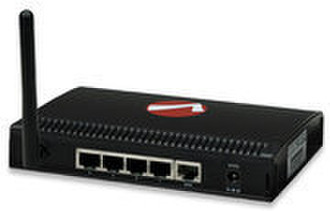

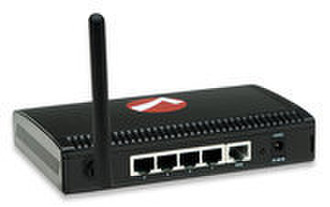

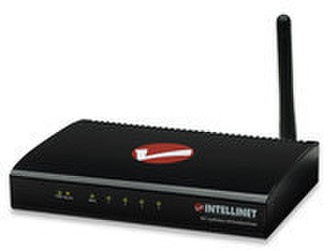

Wireless G 4-Port Router, 4 x Fast Ethernet, 802.11g, DHCP, VPN, Firewall, Black
<b>Wireless G 4-Port Router</b>
Create a wireless network easily in your home or office.
The INTELLINET NETWORK SOLUTIONS Wireless G 4-Port Router lets you experience fast speeds as you surf the Web, download music or photos, and play online games. This wireless router works with 802.11g as well as the older 802.11b products, and also includes a four-port 10/100 LAN switch so you can connect using network cable or go wireless to satisfy all your needs.
Flexible.
The Wireless G 4-Port Router allows you to conveniently share your network connection with multiple users on your network with or without wires. It delivers 10/100 Mbps (auto-sensing) WAN and LAN connections and is interoperable with 54 Mbps (802.11g) and 11 Mbps (802.11b) devices over a 2.4 GHz band wireless network. The WAN connection wizard makes installation a snap.
Secure.
Keeping intruders out of your network can be a challenge, and this feature-rich wireless router is designed to make that challenge easier. It includes a true firewall that secures your network against hackers. With Network Address Translation (NAT) to shield your networked devices from intruders, Denial of Service (DoS) attack prevention to avert potential threats by scanning incoming traffic, and WEP, WPA and WPA2 encryption to conceal your information on the wireless LAN from eavesdroppers, you can rest assured that you have taken the necessary precautions to protect the data on your network.
Lifetime Warranty.
Strict manufacturing standards ensure the highest quality in all INTELLINET NETWORK SOLUTIONS products. All items carry a full Lifetime Warranty — the strongest quality commitment anyone can make.
<b>Features:</b>
- Compatible with all common DSL and cable Internet service providers;
- Up to 54 Mbps network data transfer rate;
- Compatible with all 802.11b & g wireless products;
- Supports WEP and WPA/WPA2 (TKIP and AES) data encryption;
- Supports MAC filtering for wireless clients;
- Integrated 10/100 Mbps LAN switch with Auto MDI/MDI-X support;
- DHCP server assigns IP addresses for all LAN users;
- Supports DDNS (dynamic DNS);
- Supports UPNP (Universal Plug and Play);
- Supports virtual server and DMZ (demilitarized zone);
- VPN Pass Through (PPTP, IPSec, L2TP);
- Integrated anti-DoS firewall;
- Content control through IP and Port filters;
- Remote management function;
- Easy installation through Web-based user interface;
- Firmware updates via Web-based user interface;
- Lifetime Warranty.
