Security
| VPN support |
PPTP, IPSec |
| Firewall security |
URL |
| Firewall |
Y |
| NAT functionality |
Virtual server\nPort forwarding\nSpecial applications (port trigger) |
| MAC address filtering |
Y |
Antenna
| Antenna gain level (max) |
3 dBi |
| Antennas quantity |
2 |
Other features
| Bandwidth |
2.4 GHz |
| Flash memory |
4 MB |
| Mobile network connection |
N |
| xDSL connection |
N |
| Supported protocols |
- CSMA/CA\n- CSMA/CD\n- TCP/IP\n- UDP\n- ICMP\n- NTP\n- NAT\n- DNS |
| Outdoor range |
300 m / 980 ft. |
| Rack mounting |
N |
| Input current |
1.0 A |
| Operating temperature (T-T) |
50 - 104 °F |
| Frequency range |
2.400 – 2.483 GHz |
| Input voltage |
12 V |
| Networking features |
Fast Ethernet |
| USB ports quantity |
1 |
Wireless LAN features
| WLAN data transfer rate (max) |
300 Mbit/s |
Protocols
| DMZ support |
Y |
| DHCP server |
Y |
| DHCP client |
Y |
Management features
| Universal Plug and Play (UPnP) |
Y |
| Web-based management |
Y |
| Quality of Service (QoS) support |
Y |
Ethernet LAN features
| Ethernet LAN interface type |
Fast Ethernet |
| Ethernet LAN data rates |
10, 100 Mbit/s |
Power
| Power over Ethernet (PoE) |
Y |
Additionally
| Indoors max range |
100 m / 328 ft. |
| Filtering |
URL |
| Ethernet LAN (RJ-45) ports quantity |
4 |
| Ethernet LAN connection |
Y |

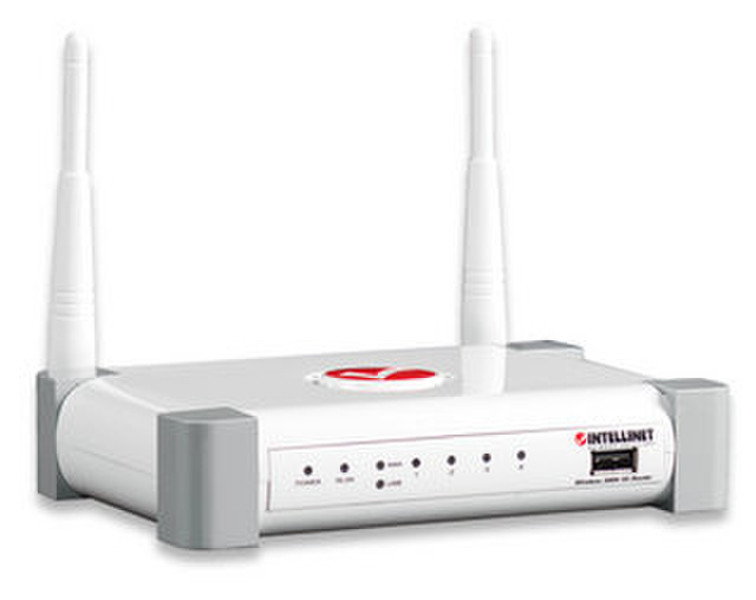

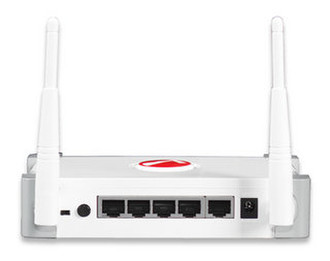

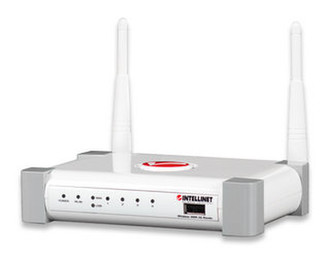

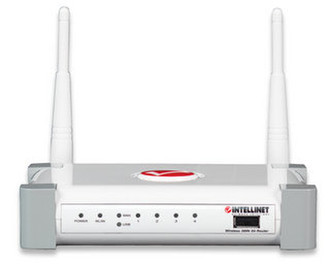

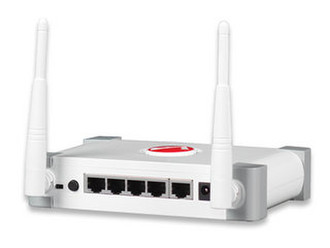

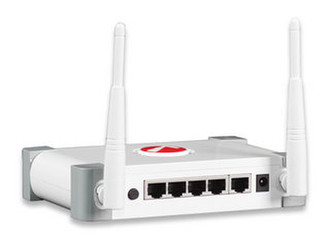

Wireless 300N 3G Router, 300 Mbps, 2T2R MIMO, 3G, 4-Port, Fast Ethernet, 215g, White
The INTELLINET NETWORK SOLUTIONS Wireless 300N 3G Router is the latest in wireless networking. Taking advantage of new technology, a wireless network can now see greatly enhanced network speeds and the convenience of 3G mobile technology.
<b>Shares 3G / 3.5G Internet Connection</b>
The INTELLINET NETWORK SOLUTIONS Wireless 300N 3G Router is a high-speed wireless 3G broadband router that supports both UMTS/HSDPA and EVDO networks. When connecting a 3G / 3.5G USB modem* to the router, all network (wired/wireless) users can share the 3G / 3.5G Internet connection. The Wireless 300N 3G Router can support 3G / 3.5G speed up to 7.2 Mbps.
<b>Multiple Solutions in One Device</b>
The INTELLINET NETWORK SOLUTIONS Wireless 300N 3G Router serves multiple purposes — an access point for your wireless network, a 4-port router for hard-wiring Ethernet devices — and brings it all together so that the devices can access a high-speed Internet connection.
<b>Automatic WAN Fail-Over</b>
The INTELLINET NETWORK SOLUTIONS Wireless 300N 3G Router supports automatic WAN fail-over function. When connecting with DSL/Cable broadband, the Wireless 300N 3G Router will enable the DSL/Cable broadband connection automatically when a 3G / 3.5G Internet connection is not available. You can surf the Internet anywhere and anytime.
<b>Features:</b>
- Supports UMTS/HSDPA and EVDO 3G networks;
- Up to 300 Mbps network link speed;
- Complies with 2.4 GHz IEEE 802.11n standard and is backward compatible with IEEE 802.11g/b standards;
- 2T2R MIMO technology for enhanced throughput and coverage;
- Supports WMM function to meet the multimedia data bandwidth requirement;
- Supports Wi-Fi Protected Setup (WPS);
- Supports WAN connection auto fail-over;
- Supports WEP and WPA/WPA2 (TKIP and AES) data encryption;
- DHCP server supports static lease management;
- Supports virtual server, port forwarding and DMZ (demilitarized zone);
- Supports DDNS (dynamic DNS);
- Supports UPnP (Universal Plug and Play);
- Integrated anti-DOS firewall;
- QoS (Quality of Service) bandwidth management;
- VPN Passthrough (PPTP/IPSec);
- Integrated USB 2.0 port for UMTS/HSDPA and EVDO 3G modems;
- Use INTELLINET NETWORK SOLUTIONS Wireless N adapters for the best compatibility and performance;
- Easy installation through Web-based user interface.
