DSL features
| DSL specification |
ITU G.992.5, ITU G.992.4, ITU G.992.3, ITU G.992.2, ITU G.992.1, ANSI T1.413 |
| ADSL |
Y |
Antenna
| Antenna gain level (max) |
3 dBi |
Other features
| Flash memory |
2 MB |
| Internal memory |
16 MB |
| xDSL connection |
Y |
| Frequency range |
2.4 - 2.4835 GHz |
| Networking features |
Fast Ethernet |
| Compliance industry standards |
IEEE 802.3,IEEE 802.3u,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n |
| Upstream data rate |
1 Mbit/s |
| Downstream data rate |
24 Mbit/s |
Ethernet LAN features
| Ethernet LAN interface type |
Fast Ethernet |
| Ethernet LAN data rates |
10, 100 Mbit/s |
Performance
| Chipset |
Realtek RTL8671BH + RTL8271B, Realtek RTL8192SU |
| Firmware upgradeable |
Y |
Protocols
| Supported network protocols |
PPPoE, PPPoA |
| DHCP server |
Y |
| DHCP client |
Y |
| DMZ support |
Y |
Management features
| Quality of Service (QoS) support |
Y |
| Universal Plug and Play (UPnP) |
Y |
Wireless LAN features
| Top Wi-Fi standard |
IEEE 802.11n |
Additionally
| Ethernet LAN (RJ-45) ports quantity |
4 |
| Ethernet LAN connection |
Y |

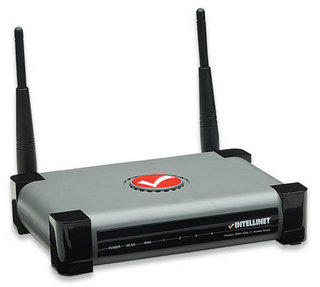

Wireless 300N ADSL2+ Modem Router, 802.11b,g,n, IEEE 802.3,IEEE 802.3u,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n
The INTELLINET NETWORK SOLUTIONS Wireless 300N ADSL2+ Modem Router provides you with Internet access that is faster than ever before!
The Wireless 300N ADSL 2+ Modem Router is an all-in-one modem, router, Wireless N access point, firewall and Fast Ethernet four-port switch that allows you to access the Internet and download music, play interactive games online or surf the Web at double the speed* previously available through ADSL2.
The newest ADSL standard, ADSL2+ (G.992.5) offers significant advantages to the standard version of ADSL (asymmetric digital subscriber line) by boosting performance, improving interoperability and supporting new applications.
Increased Performance and Wireless Coverage
The new Wireless N standard has dramatically increased the overall performance of a wireless network. With speeds up to 300 Mbps and a coverage distance up to 600 m, the new Wireless N technology greatly surpasses that of 802.11g.
Better Rate and Reach
Improved modulation efficiency reduces framing overhead, achieves higher coding gain, improves the initialization time and provides enhanced signal processing algorithms. ADSL2 increases downstream data rates to more than 12 Mbps as compared to between 8 M and 10 Mbps for original ADSL. ADSL2 extends the reach by approximately 600 feet. The ADSL2+ standard doubles the maximum frequency used for downstream data transmission from 1.1 MHz to 2.2 MHz. What all this means to you is that the new ADSL2+ high-speed Internet router effectively provides downstream data rates of 24 Mbps on standard copper phone lines as long as 5,000 feet.*
Diagnostics
Real-time performance-monitoring capabilities provide information regarding line quality and noise conditions at both ends of the line. Service providers can use the data to monitor the quality of your ADSL connection, prevent service failures and keep your connection up and running without disruption. They can also use the data to determine if you qualify for higher-data-rate services.
Improved Interoperability
Modem initialization procedures are clarified, which improves interoperability and provides better performance when connecting ADSL transceivers from different chip suppliers.
Enhanced Voice Support
An optional digital mode allows for transmission of data in the POTS (plain old telephone service) portion of the phone line. This adds 256 kbps to the upstream data rate, which can be an attractive option for businesses that have voice services on different phone lines and value the additional upstream bandwidth. In addition, ADSL2’s channelization capability provides support for Channelized Voice over DSL (CVoDSL), a method of transporting derived lines of TDM voice traffic transparently over DSL.
