Other features
| Internal memory |
16 MB |
| Flash memory |
4 MB |
| Data transfer rate |
150 Mbit/s |
| Frequency range |
2.4 - 2.483 GHz |
| Input voltage |
12 V |
| Networking features |
Fast Ethernet |
| Operating temperature (T-T) |
50 - 104 °F |
| USB ports quantity |
1 |
| Input current |
1 A |
| xDSL connection |
N |
Wireless LAN features
| WLAN data transfer rate (max) |
150 Mbit/s |
| Wi-Fi standards |
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Modulation |
DBPSK, CCK, BPSK, 64-QAM, 16-QAM, QPSK, OFDM, DSSS, DQPSK |
| Channels quantity |
13 |
| Top Wi-Fi standard |
IEEE 802.11n |
Networking
| Data link protocols |
DHCP, DNS |
| Management protocols |
CSMA |
| Receiver sensitivity |
- 11n (150 Mbps) MCS0-07: 20 MHz: -73 dBm; 40 MHz: -68 dBm\n- 11g (54 Mbps) OFDM: -76 dBm\n- 11b (11 Mbps) CCK: -91 dBm |
Protocols
| DMZ support |
Y |
| DHCP server |
Y |
| DHCP client |
Y |
| Supported network protocols |
PPTP, L2TP, PPoE, DHCP, NTP, UDP, TCP/IP, CSMA/CA, CSMA/CD, ICMP |
Management features
| Reset button |
Y |
| Quality of Service (QoS) support |
Y |
| Web-based management |
N |
| Universal Plug and Play (UPnP) |
Y |
Security
| MAC address filtering |
Y |
| VPN support |
PPTP, IPSec |
| Firewall security |
NAT, DOS |
Antenna
| Antenna gain level (max) |
3 dBi |
| Antennas quantity |
1 |
Ethernet LAN features
| Ethernet LAN data rates |
10, 100 Mbit/s |
| Ethernet LAN interface type |
Fast Ethernet |
Additionally
| Ethernet LAN connection |
Y |
| AC adapter bundled |
Y |
| Ethernet LAN (RJ-45) ports quantity |
4 |
Wireless 150N 3G, SDRAM 16MB, 2.4GHz, 150Mbps, WEP 64/128-bit, WPA/WPA2, 3G, Fast Ethernet, USB 2.0, 0.2kg, Grey

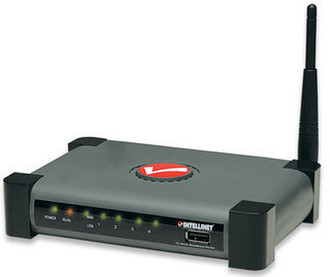

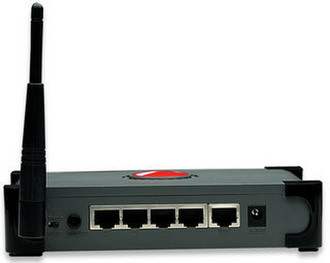

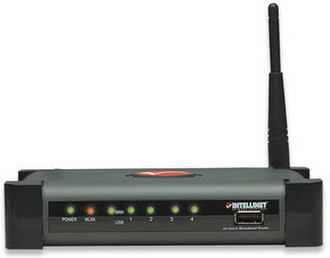

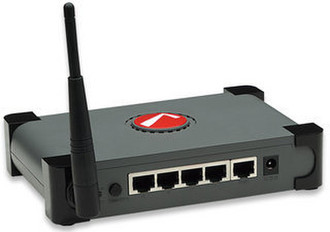

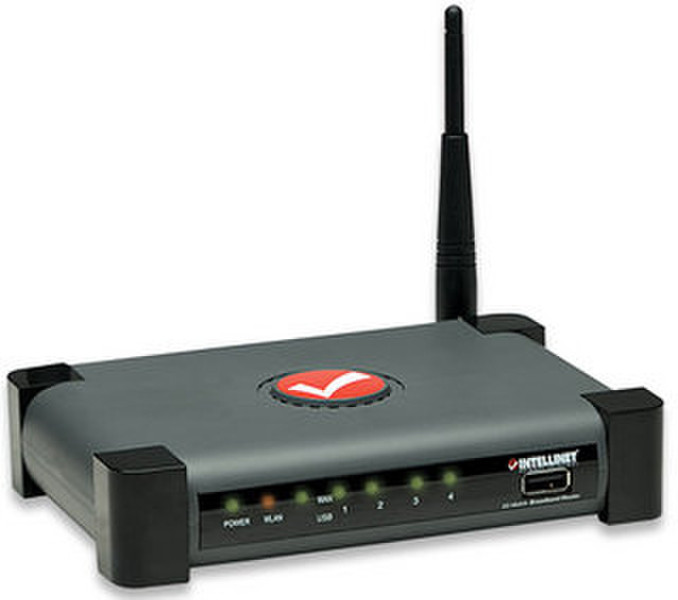

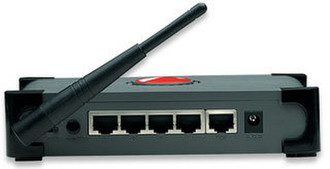

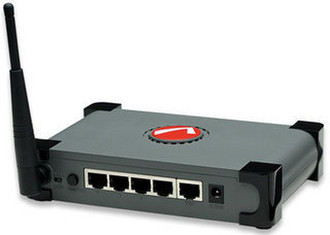

The Intellinet Wireless 150N 3G Router is the latest in wireless networking. Taking advantage of new technology, a wireless network can now see greatly enhanced network speeds and the convenience of 3G mobile technology.
<b>Shares 3G / 3.5G Internet Connection</b>
The Intellinet Wireless 150N 3G Router is a high-speed wireless 3G broadband router that supports both UMTS/HSDPA and EVDO networks. When connecting a 3G / 3.5G USB modem to the router, all network (wired/wireless) users can share the 3G / 3.5G Internet connection. The Wireless 150N 3G Router can support 3G / 3.5G speed up to 7.2 Mbps.
<b>Multiple Solutions in One Device</b>
The Intellinet Wireless 150N 3G Router serves multiple purposes - an access point for your wireless network, a four-port router for hard-wiring Ethernet devices - and brings it all together so that the devices can access a high-speed Internet connection.
<b>Automatic WAN Fail-Over</b>
The Intellinet Wireless 150N 3G Router supports automatic WAN fail-over function. When connecting with DSL/cable broadband, the Wireless 150N 3G Router will enable the DSL/cable broadband connection automatically when a 3G / 3.5G Internet connection is not available. You can surf the Internet anywhere and anytime.
