Security
| Firewall security |
URL |
| VPN support |
PPTP, IPSec, L2TP |
| NAT functionality |
- Virtual server\n- Port forwarding\n- Special applications |
| Firewall |
Y |
| URL filtering |
Y |
| MAC address filtering |
Y |
Ethernet LAN features
| Cabling technology |
10/100Base-T(X) |
| Ethernet LAN interface type |
Fast Ethernet |
| Ethernet LAN data rates |
10, 100 Mbit/s |
Management features
| Universal Plug and Play (UPnP) |
Y |
| Quality of Service (QoS) support |
Y |
| Web-based management |
Y |
Protocols
| DMZ support |
Y |
| DHCP client |
Y |
| DHCP server |
Y |
Wireless LAN features
| Wi-Fi band |
Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard |
IEEE 802.11n |
| WLAN data transfer rate (max) |
300 Mbit/s |
| Wi-Fi standards |
IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Channels quantity |
13 |
Other features
| Mobile network connection |
N |
| Flash memory |
4 MB |
| Rack mounting |
N |
| Supported protocols |
CSMA/CA\n- CSMA/CD\n- TCP/IP\n- UDP\n- ICMP\n- PPPoE\n- NTP\n- NAT\n- DHCP\n- DNS |
| Input current |
1 A |
| Frequency band |
2.4 & 5 GHz |
Antenna
| Antenna type |
External |
| Antenna gain level (max) |
3 dBi |
| Antennas quantity |
2 |
Performance
| Chipset |
Ralink RT3352 + RT3572 |
Additionally
| Ethernet LAN connection |
Y |
| AC adapter bundled |
Y |
| Ethernet LAN (RJ-45) ports quantity |
4 |

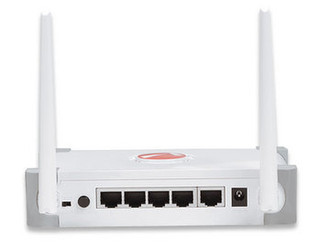

300 Mbps, 802.11a/b/g/n, 2.4 + 5 GHz, 2T2R MIMO, QoS, RJ-45 x 4

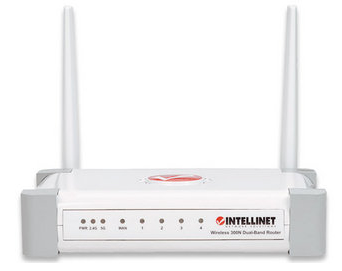

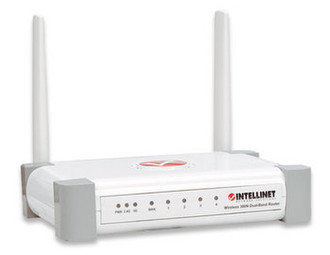

Wireless 300N Dual-Band Router - The Ultimate in Wireless Performance
The Intellinet Wireless 300N Dual-Band Router, model 525268, is the latest in wireless networking technology. Wireless bandwidth never peaked higher and wireless signals never traveled farther thanks to cutting-edge Wireless N dual-band technology.
Unsurpassed Wi-Fi Performance
Intellinet’s advanced 2T2R architecture implements true three-stream 802.11n technology, enabling transmission rates of up to 300 Mbps, the highest performance on the market. This solution addresses concurrent delivery of data, voice and HD video throughout the home or office.
Congestion? Not Here.
Move your mission-critical wireless applications from the congested 2.4 GHz band into the 5 GHz space and provide the fastest wireless connection available today. You can use the 2.4 GHz band for your everyday tasks, such as surfing the Internet, social media or e-mail, while the 5 GHz band is reserved for your high-end applications; e.g., HD video streaming and specialized applications. Since the Intellinet Wireless 300N Dual-Band Router is equipped with two high-performance wireless sender/receiver units, you can run both the 2.4 and 5 GHz networks simultaneously.
Multiple Solutions in One Device
The Wireless 300N Dual-Band Router serves multiple purposes — an access point for your wireless network providing both 2.4 GHz and 5 GHz wireless simultaneously, wireless bridge, wireless repeater, WDS repeater, a four-port router for your hard-wired Ethernet devices, a firewall, access and content control — and it brings it all together to maximize your high-speed Internet access.
