Security
| Firewall security |
NAT, SPI |
| VPN support |
PPTP, L2TP, IPsec |
| Firewall |
Y |
| URL filtering |
Y |
| MAC address filtering |
Y |
Ethernet LAN features
| Cabling technology |
10/100Base-T(X) |
| Ethernet LAN interface type |
Fast Ethernet |
| Ethernet LAN data rates |
10, 100 Mbit/s |
Other features
| Downstream data rate |
24 Mbit/s |
| Upstream data rate |
1 Mbit/s |
| Mobile network connection |
N |
| xDSL connection |
Y |
| Internal memory |
32 MB |
| Flash memory |
4 MB |
| Frequency range |
2.4 - 2.4835 GHz |
| Rack mounting |
N |
| Frequency band |
2.4 GHz |
Management features
| Universal Plug and Play (UPnP) |
Y |
| Quality of Service (QoS) support |
Y |
| Web-based management |
Y |
Protocols
| DMZ support |
Y |
| DHCP client |
Y |
| DHCP server |
Y |
Wireless LAN features
| Top Wi-Fi standard |
IEEE 802.11n |
| WLAN data transfer rate (max) |
150 Mbit/s |
| Wi-Fi standards |
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Modulation |
16-QAM, 64-QAM, CCK, DBPSK, DSSS, OFDM, QPSK |
Networking
| Management protocols |
SNMP |
Antenna
| Antenna type |
External |
| Antenna gain level (max) |
3 dBi |
| Antennas quantity |
1 |
Performance
| Firmware upgradeable |
Y |
| Chipset |
TrendChip TC3162U+TC3086 (AFE) |
Additionally
| Ethernet LAN connection |
Y |
| AC adapter bundled |
Y |
| Ethernet LAN (RJ-45) ports quantity |
4 |

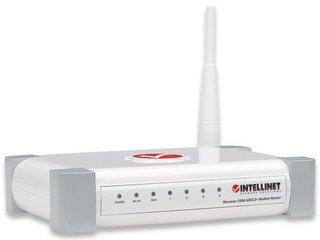

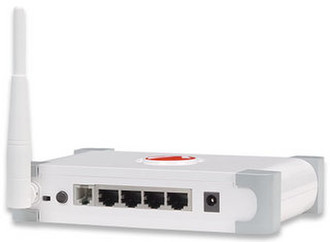

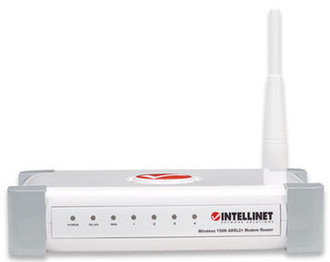

Wireless 150N ADSL2+ Modem Router, 4 x 10/100 Mbps LAN
The INTELLINET NETWORK SOLUTIONS Wireless 150N ADSL2+ Modem Router provides you with Internet access that is faster than ever before!
The Wireless 150N ADSL 2+ Modem Router is an all-in-one modem, router, Wireless N access point, firewall and Fast Ethernet four-port switch that allows you to access the Internet and download music, play interactive games online or surf the Web at double the speed previously available through ADSL2.
The newest ADSL standard, ADSL2+ (G.992.5) offers significant advantages to the standard version of ADSL (asymmetric digital subscriber line) by boosting performance, improving interoperability and supporting new applications.
Better Rate and Reach
Improved modulation efficiency reduces framing overhead, achieves higher coding gain, improves the initialization time and provides enhanced signal processing algorithms. ADSL2 increases downstream data rates to more than 12 Mbps as compared to between 8 M and 10 Mbps for original ADSL. ADSL2 extends the reach by approximately 600 feet. The ADSL2+ standard doubles the maximum frequency used for downstream data transmission from 1.1 MHz to 2.2 MHz. What all this means to you is that the new ADSL2+ high-speed Internet router effectively provides downstream data rates of 24 Mbps on standard copper phone lines as long as 5,000 feet.
Diagnostics
Real-time performance-monitoring capabilities provide information regarding line quality and noise conditions at both ends of the line. Service providers can use the data to monitor the quality of your ADSL connection, prevent service failures and keep your connection up and running without disruption. They can also use the data to determine if you qualify for higher-data-rate services.
Improved Interoperability
Modem initialization procedures are clarified, which improves interoperability and provides better performance when connecting ADSL transceivers from different chip suppliers.
