Performance
| Frequency band |
2.4 - 2.484 GHz |
| Ethernet LAN data rates |
10, 100 Mbit/s |
| Internal memory |
32 MB |
| Flash memory |
4 MB |
| Modulation |
16-QAM, CCK, 64-QAM, DQPSK, BPSK, DBPSK, QPSK |
| 2.4 GHz |
Y |
Antenna
| Antenna gain level (max) |
12 dBi |
Ports & interfaces
| WAN connection |
Ethernet (RJ-45) |
Additionally
| Ethernet LAN (RJ-45) ports quantity |
1 |
| Transfer rate (Mbps) |
150 Mbit/s |
RJ45, 10/100 Mbps, 4 MB Flash, 32 MB SDRAM, 2.4 – 2.484 GHz, Auto MDI/MDI-X
<b>Wireless networking with three times the speed and five times the flexibility.</b>

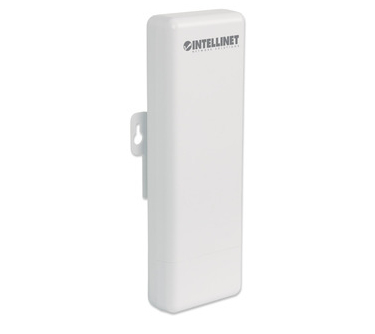

The Intellinet Wireless 150N Outdoor Access Point Repeater is the latest in wireless networking. Taking advantage of new technology, a wireless network can now see greatly enhanced network speeds.
<b>Multiple Solutions in One Device</b>
The Intellinet Wireless 150N Outdoor Access Point serves multiple purposes — an access point for your wireless network supporting wireless bridge for point-to-point connections or WDS setups, an integrated antenna for long range transmissions — and brings it all together so that the devices can access a high-speed Internet connection.
<b>Flexibility</b>
This access point can be configured in any one of five modes: 1) Access Point (AP), 2) Point-to-Point (PtP), 3) Point-to-Multi-Point (PtMP), 4) Universal Repeater or 5) AP Client (Station Infrastructure). Add support for bridge, gateway and WISP mode and you have an extremely flexible solution for both indoor and outdoor applications.
<b>Secure Communications</b>
The Wireless 150N Outdoor Access Point provides maximum wireless security by supporting 802.1x user authentication for external RADIUS servers and, thanks to its internal RADIUS server, the access point can be used as the authentication server in smaller networks. Other security features included in this access point are MAC address filtering, disable SSID broadcast and support for the latest wireless encryption mechanisms.
